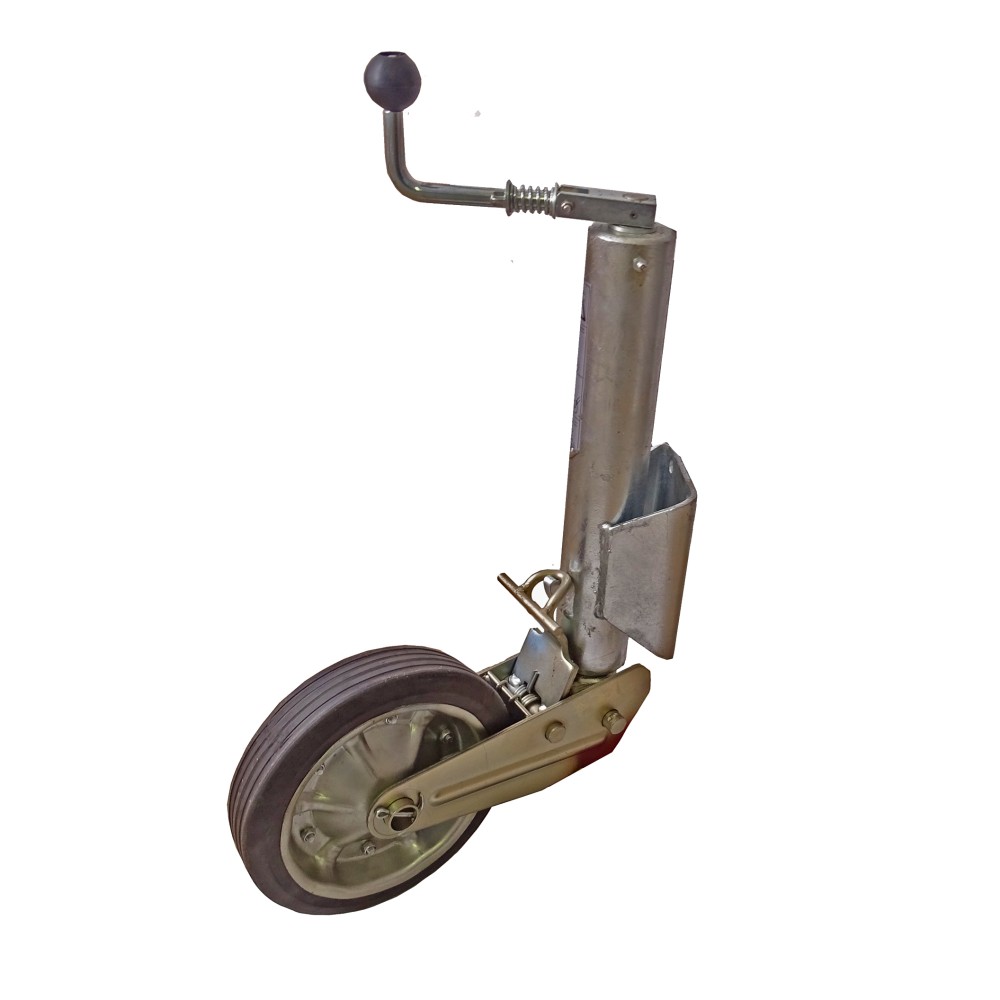

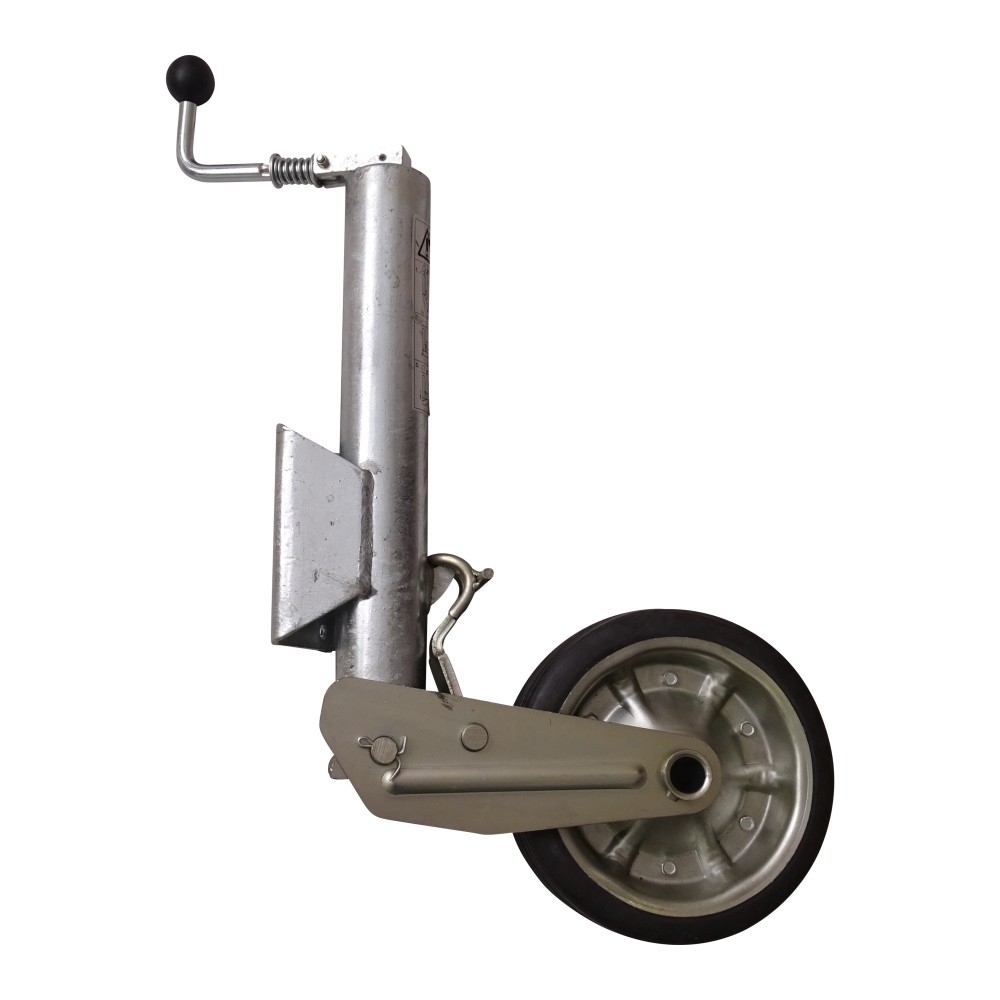

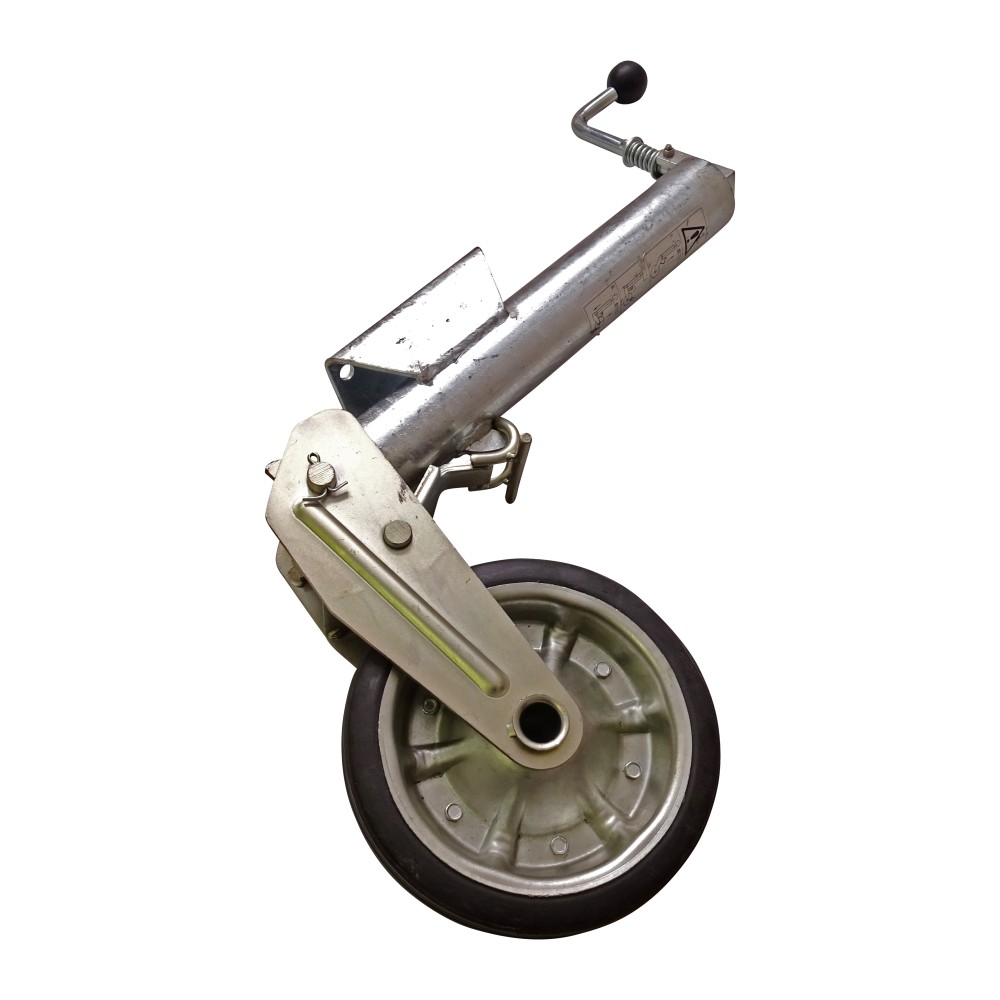

Semi-automatic heavy duty jockey wheel with universal flange, 800kg for truck, agriculture and car trailers
Product.Nr.: 990013713
- Semi-automatic heavy duty support wheel
- suitable for trucks, agriculture, show vehicles and car trailers

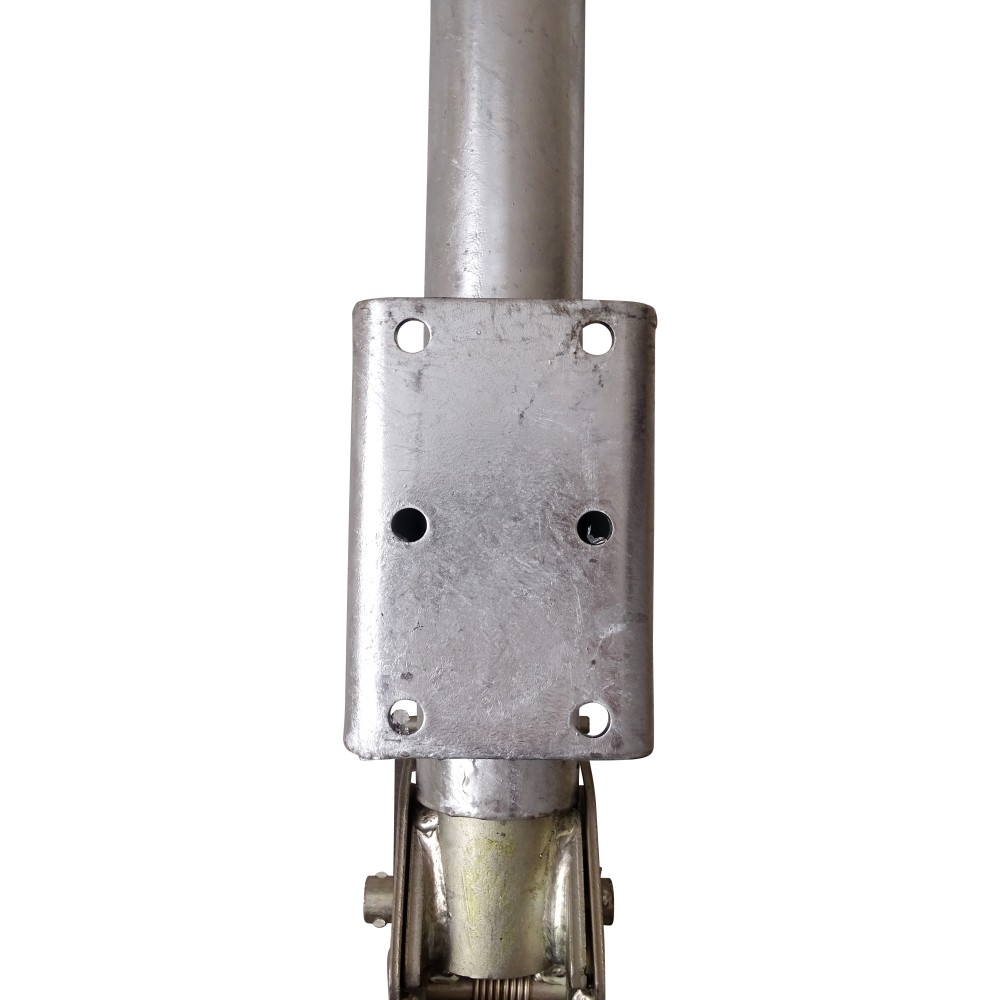

- with 6 hole flange
- flange size: 75/75 x 70mm
- Steel hot dip galvanised
- thrust bearing
- solid rubber wheel 260 x 65mm with sheet steel rim
- max. static load capacity 800kg
- Stroke up to max. 290 mm
A jockey wheel / nose wheel enables easy manoeuvring, coupling and uncoupling of your car trailer and is mandatory for braked car trailers.
Frequently asked questions about this product
Three factors are key:
- Tube diameter — measured on the support wheel’s tube, not on the bracket. Common sizes are 35, 48 and 60 mm. It’s best to check with a calliper: a 48 mm support wheel won’t fit into a 60 mm bracket.
- Load capacity — this must match your trailer’s tongue load. A support wheel that is not strong enough will bend or become impossible to crank under load.
- Design — automatic jockey wheels fold in automatically when the trailer is coupled; basic models are cranked up by hand and locked into place.
Go straight to the right size: 48 mm jockey wheels, 60 mm jockey wheels or the full overview.
Common mistakes: ordering the wrong tube diameter; failing to crank the jockey wheel fully up or lock it in place before setting off; the clamp being too loose. A jockey wheel that spins freely can quickly cause damage on the motorway.
When it’s worth replacing: a worn-out wheel, a stiff crank, or a worn-out spindle. In most cases, a complete training wheel is cheaper than buying the parts separately.
