Complete wheel 11x4.00-4 KINGS TIRE V-3502 Series 52 plastic axle Ø17mm NL75mm
37,90 €
Complete wheel 11x4.00-4 KINGS TIRE V-3502 Series 52 plastic axle Ø17mm NL75mm
37,90 €
Shipping price from: 6,90 €
This item cannot be collected in person
Product non in stock
Currently not available for order
Complete wheel 11x4.00-4 KINGS TIRE V-3502 Series 52 plastic axle Ø17mm NL75mm
Product.Nr.: 990016496
Manufacturer: KINGS TIRE

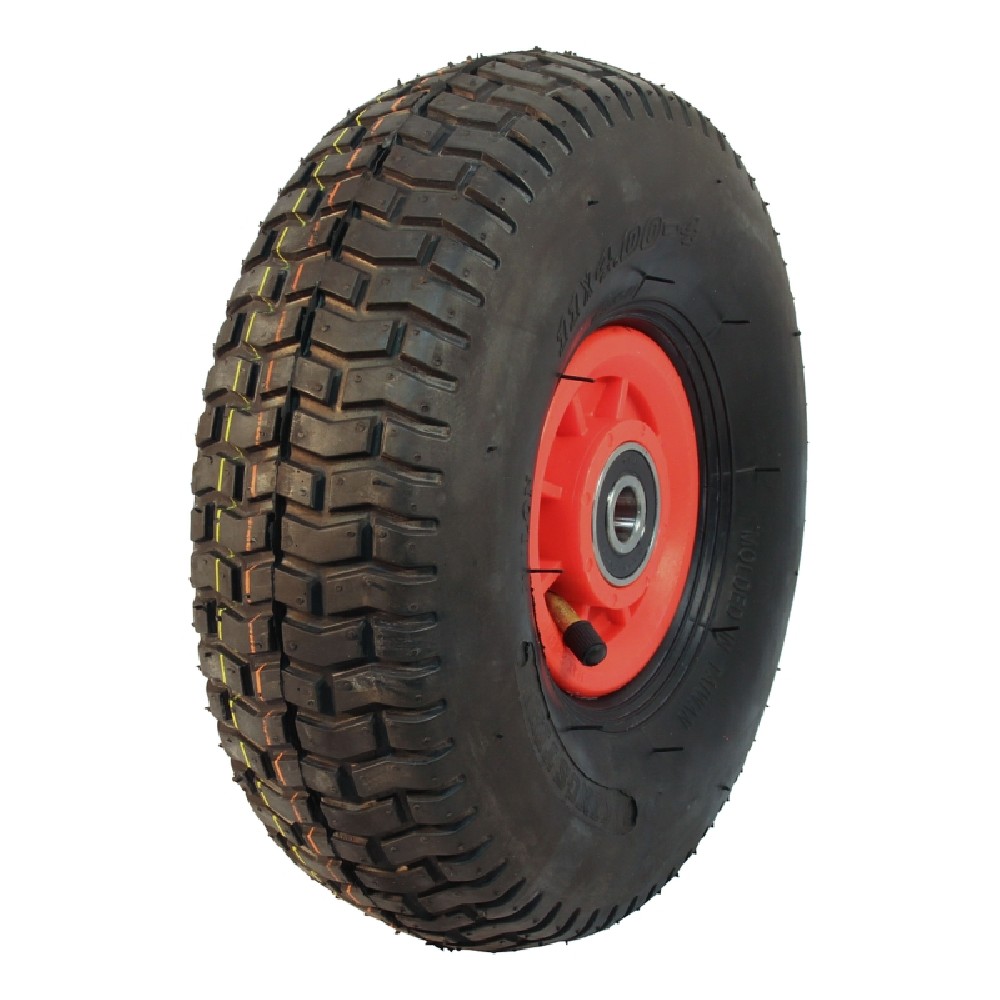

This complete wheel 11x4.00-4 from the brand KINGS TIRE, Series 52, is a robust and low-maintenance solution for garden and park maintenance applications. The tyre with tread pattern V-3502 is pre-mounted on a one-piece plastic rim in red and equipped with a high-quality ball bearing. Thanks to the 4PR construction and a maximum load capacity of 150 kg, the wheel is ideal for lawn mowers, garden equipment, trailers and various transport carts used in green area maintenance.
Technical data
- Product type: Complete wheel
- Brand: KINGS TIRE
- Industry: Garden and park maintenance
- Series: Series 52
- Tyre size: 11x4.00-4
- Diameter: 292 mm
- Width: 106 mm
- Tread pattern: V-3502
- PR (Ply Rating): 4PR
- Inch size: 4 inch
- Tyre type: TL (Tubeless)
- Rim: 2.10x4
- Rim design: 1-piece
- Wheel material: Plastic
- Rim colour: Red
- Hub length mm: NL75 mm
- Overall height: 146 mm
- Bearing designation: Ball bearing
- Bearing type: 6303 2RS C3
- Tube diameter: 47 mm
- Bore diameter: 17 mm
- Bearing width: 14 mm
- Load index (LI): 42
- Speed index (SI): A4
- Max. load capacity: 150 kg
- Tyre pressure: 2.5 / 3.2 bar (operating / maximum pressure)
- Max. speed: 20 km/h
Benefits and application
This complete wheel is delivered ready for installation and significantly reduces your installation effort. The combination of a 4PR tyre and a sturdy plastic wheel offers a good balance of load capacity, puncture resistance and weight. The V-3502 tread pattern ensures reliable traction on grass, gravel and firm surfaces without excessively damaging the turf.
The wheel is particularly suitable for:
- Lawn mowers and ride-on mowers
- Garden and park machinery
- Transport carts, barrows and trailers in green area maintenance
- Applications with moderate speeds up to 20 km/h
The sealed ball bearing (6303 2RS C3) ensures smooth running with minimal maintenance requirements. The robust design makes this complete wheel a reliable choice for regular use in garden and park maintenance.
Explanation of technical terms
- TL (Tubeless): Tubeless tyre that is mounted directly on the rim without a separate tube. Usually offers lower weight and reduced maintenance.
- PR (Ply Rating): Ply Rating indicates the load capacity class of the carcass. 4PR stands for a reinforced construction compared to light 2PR tyres.
- LI (Load Index): Load index 42 describes the maximum permissible load capacity of the tyre at the specified air pressure. In this case, it corresponds to a load capacity of up to 150 kg.
- SI (Speed Index): Speed index A4 defines the maximum permissible speed, here up to 20 km/h.
- Ball bearing 6303 2RS C3: Standard deep groove ball bearing with double sealing (2RS) and increased internal clearance (C3) for smooth running and long service life under varying loads.
Frequently asked questions about this product
To find a suitable complete wheel, we need five pieces of information:
- Tyre size — shown on the sidewall of the old tyre, for example 195/50 R13.
- Number of holes and bolt circle diameter — how many wheel bolts and what is the bolt circle diameter. For a four-hole pattern, measure from the centre of one hole to the centre of the hole directly opposite. With a five-hole pattern, this isn’t possible directly because no hole is directly opposite — in this case, it helps to check the vehicle documents or a photo of the back of the rim.
- Offset (ET) — see below.
- Hub bore (centre hole) — the diameter of the opening in the centre of the rim.
- Load capacity — the load index must match the axle load, and must be at least the value stated in the vehicle documents.
What the offset (ET) does: It indicates how far the contact surface of the rim is from the centre of the rim, and thus determines how far the wheel protrudes outwards or inwards. An ET that is too small will cause the wheel to rub against the outer edge of the mudguard; one that is too large will cause it to rub against the brake or the frame on the inside.
Reading the offset: It is usually stamped on the inside of the rim, for example ‘ET30’. If there is no stamp, measure it yourself.
Measuring the ET yourself — here’s how:
- Remove the wheel and lay it flat, ideally with the outer side facing downwards.
- Measure the total width G of the rim: from the outer edge of one rim flange to the outer edge of the other. Half of this distance is the centre of the rim.
- Measure dimension A: place a straight ruler across the top rim flange and determine the distance from this edge to the hub contact surface — that is, to the surface that rests against the vehicle.
- Calculation: ET = A − G/2
Example: Total width 230 mm, measurement A 145 mm. Centre of the rim = 115 mm. ET = 145 − 115 = 30. A positive result means that the contact surface lies outside the centre of the rim — this is the normal case. A value of zero means it is exactly centred, whilst negative values indicate it lies further inwards.
The quickest way is still to take a photo of the back of the old rim — this shows the bolt pattern and usually the embossed dimensions as well.
To choose from: complete wheels.
Note: Our complete trailer wheels are not balanced — this is not usually necessary for car trailers.
