Complete wheel 4.80/4.00-8 KINGS TIRE V-8502 4PR Series 52 Red NL 75mm
108,90 €
Complete wheel 4.80/4.00-8 KINGS TIRE V-8502 4PR Series 52 Red NL 75mm
108,90 €
Shipping price from: 6,90 €
This item cannot be collected in person
Product Product in stock
Complete wheel 4.80/4.00-8 KINGS TIRE V-8502 4PR Series 52 Red NL 75mm
Product.Nr.: 990016702
Manufacturer: KINGS TIRE

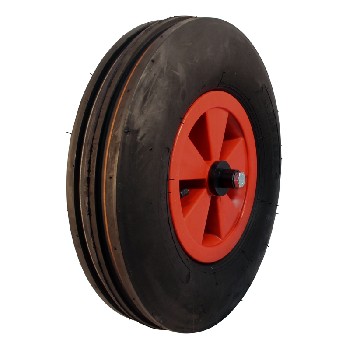

This complete wheel from KINGS TIRE Series 52 is a robust and reliable solution for agricultural and horticultural applications. It combines a 4PR tyre with tread pattern V-8502 and a sturdy, one-piece 2.50Ax8 rim. Thanks to the roller bearing and the plastic wheel in red design, the wheel is ideal for equipment and trailers used in daily operation at speeds up to 20 km/h. The high load capacity of up to 225 kg and the TT tyre type (to be used with tube) ensure durability and safety in use.
Technical data
- Brand: KINGS TIRE
- Industry: Agriculture and horticulture
- Item: Complete wheel
- Series: Series 52
- Tyre size: 4.80/4.00-8
- Diameter: 426 mm
- Width: 106 mm
- Tread pattern: V-8502
- PR (Ply Rating): 4PR
- Inch size: 8 inch
- Tyre type: TT (Tube Type)
- Rim: 2.50Ax8
- 1/2/3-piece: 1-piece
- Hub length mm: NL75 mm
- Material (rim): St 37-2
- Overall height: 245.75 mm
- Product: Roller bearing
- Wheel material: Plastic
- Rim colour: Red
- Max. load capacity: 225 kg
- Tyre pressure: 2.5 bar
- Max. speed: 20 km/h
Advantages and application
This complete wheel is specially designed for use on agricultural machinery, garden equipment, trailers and transport carts that are operated at low speeds up to 20 km/h. The 4PR rating offers a good combination of stability and flexibility, ideal for uneven surfaces such as meadows, fields and farmyards.
The robust steel rim made of St 37-2 in combination with the plastic wheel and the integrated roller bearing ensures smooth running and a long service life. The TT tyre type allows use with an inner tube, which simplifies maintenance and is preferred in many professional applications. The compact design and the hub length of 75 mm facilitate mounting on common axle systems.
Explanation of technical terms
- PR (Ply Rating): Indicates the load capacity class of the tyre. A higher PR stands for a more robust carcass and higher load capacity.
- TT (Tube Type): Identifies tyres that are used with a separate inner tube.
- Inch size: Common indication of rim or tyre diameter in inches (inch).
- Roller bearing: Type of bearing with rolling elements (rollers) that ensures low rolling resistance and smooth running.
Frequently asked questions about this product
To find a suitable complete wheel, we need five pieces of information:
- Tyre size — shown on the sidewall of the old tyre, for example 195/50 R13.
- Number of holes and bolt circle diameter — how many wheel bolts and what is the bolt circle diameter. For a four-hole pattern, measure from the centre of one hole to the centre of the hole directly opposite. With a five-hole pattern, this isn’t possible directly because no hole is directly opposite — in this case, it helps to check the vehicle documents or a photo of the back of the rim.
- Offset (ET) — see below.
- Hub bore (centre hole) — the diameter of the opening in the centre of the rim.
- Load capacity — the load index must match the axle load, and must be at least the value stated in the vehicle documents.
What the offset (ET) does: It indicates how far the contact surface of the rim is from the centre of the rim, and thus determines how far the wheel protrudes outwards or inwards. An ET that is too small will cause the wheel to rub against the outer edge of the mudguard; one that is too large will cause it to rub against the brake or the frame on the inside.
Reading the offset: It is usually stamped on the inside of the rim, for example ‘ET30’. If there is no stamp, measure it yourself.
Measuring the ET yourself — here’s how:
- Remove the wheel and lay it flat, ideally with the outer side facing downwards.
- Measure the total width G of the rim: from the outer edge of one rim flange to the outer edge of the other. Half of this distance is the centre of the rim.
- Measure dimension A: place a straight ruler across the top rim flange and determine the distance from this edge to the hub contact surface — that is, to the surface that rests against the vehicle.
- Calculation: ET = A − G/2
Example: Total width 230 mm, measurement A 145 mm. Centre of the rim = 115 mm. ET = 145 − 115 = 30. A positive result means that the contact surface lies outside the centre of the rim — this is the normal case. A value of zero means it is exactly centred, whilst negative values indicate it lies further inwards.
The quickest way is still to take a photo of the back of the old rim — this shows the bolt pattern and usually the embossed dimensions as well.
To choose from: complete wheels.
Note: Our complete trailer wheels are not balanced — this is not usually necessary for car trailers.
