Tyre + Tube 5.50-13 KINGS TIRE V-8509 4PR Tractor TT
111,90 €
Tyre + Tube 5.50-13 KINGS TIRE V-8509 4PR Tractor TT
111,90 €
Shipping price from: 6,90 €
This item cannot be collected in person
Product Produit en stock
Tyre + Tube 5.50-13 KINGS TIRE V-8509 4PR Tractor TT
Product.Nr.: 990015908
Manufacturer: KINGS TIRE

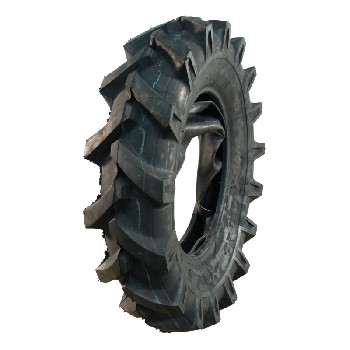

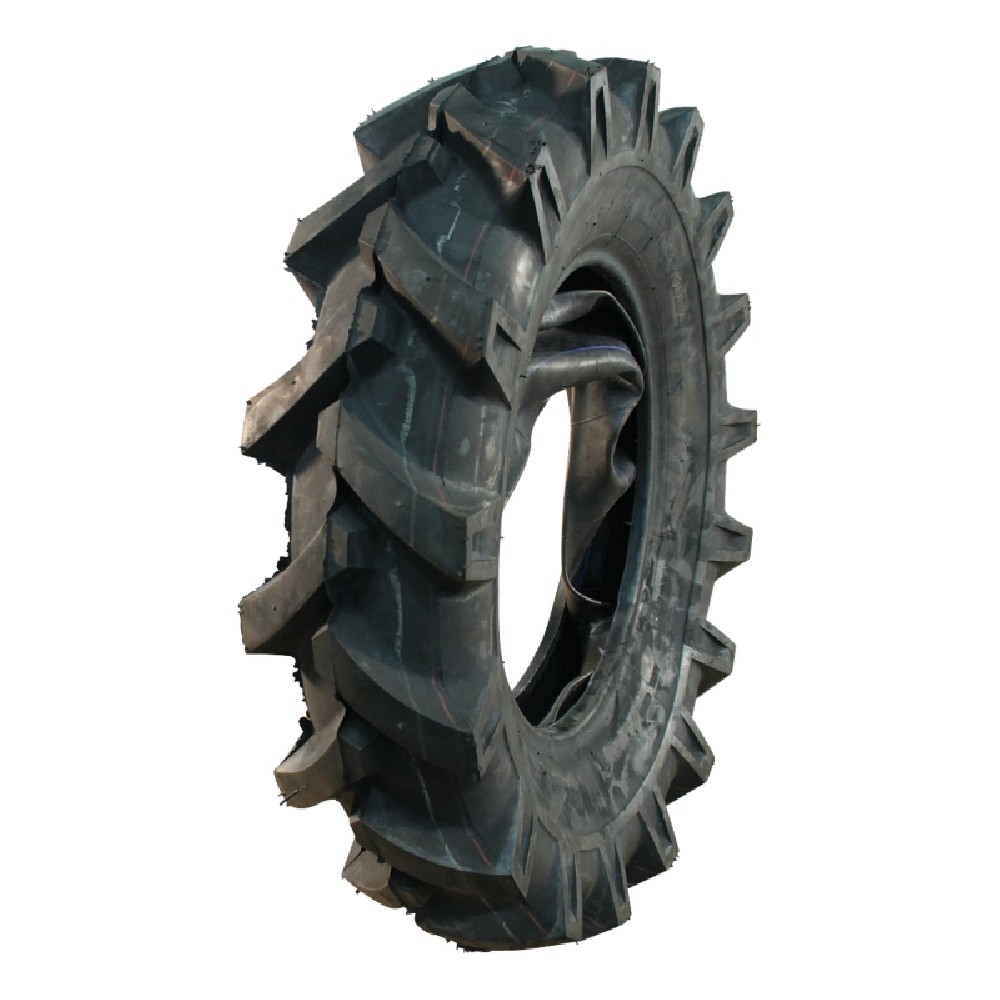

This KINGS TIRE tyre including tube in size 5.50-13 is specially designed for use on tractors in agricultural and horticultural applications. The V-8509 tread pattern ensures reliable traction on soft ground, meadows and fields, while the robust 4PR construction offers a good combination of load capacity and driving comfort. As a Tube Type (TT) version with TR13 valve, this tyre set is ideal for many common tractor rims.
Technical data
- Product type: Tyre + tube
- Brand: KINGS TIRE
- Application: Tractor
- Industry: Agriculture and horticulture
- Tyre size: 5.50-13
- Diameter: 625 mm
- Width: 150 mm
- Tread pattern: V-8509
- PR (Ply Rating): 4PR
- Tyre type: TT (Tube Type, with tube)
- Rim size: 13 inch
- Valve type: TR13
- Load capacity: 345 kg
- Tyre pressure: 1.9 bar
- Max. speed: 15 km/h
- Maximum speed km/h set: 15 km/h
Benefits and applications
This tyre set is ideal for smaller tractors and implements in agriculture and horticulture, for example for work on meadows, fields or in orchards and vineyards. The V-8509 tread pattern provides good grip at low speeds while being gentle on the ground. The 4PR construction ensures a sufficient load capacity of up to 345 kg per wheel at a tyre pressure of 1.9 bar, supporting typical transport and maintenance tasks.
Thanks to the TT design with TR13 valve, the tyre is particularly service-friendly: tube replacement and maintenance can be carried out quickly and cost-effectively. The low maximum speed of 15 km/h is optimally matched to work and shunting operations.
Explanation of technical terms
- TT (Tube Type): Tyre design that is always used with a separate inner tube.
- PR (Ply Rating): Ply Rating is an index for the load capacity class of the carcass. 4PR corresponds to a light to medium load capacity.
- Rim size: Indicates the rim diameter in inches ("inch") on which the tyre is mounted.
- Valve type TR13: Common valve type for tube tyres in agricultural and horticultural use, suitable for many standard rims.
- Max. speed / Maximum speed: Indicates the permissible maximum driving speed for which the tyre is designed.
Frequently asked questions about this product
Age: Trailer tyres age more as a result of being left stationary than from the number of kilometres travelled. It is advisable to replace them after around six years, even if the tread is still in good condition; for trailers approved for 100 km/h, this is mandatory. The date of manufacture is shown as a DOT number on the sidewall: 3223 means the 32nd calendar week of 2023.
Load capacity (Load Index, LI): The number before the letter indicates the load capacity per tyre. The fitted tyre must meet at least the value stated in the vehicle documents — a higher value is permitted, but a lower one is not.
| LI | kg | LI | kg | LI | kg | LI | kg |
|---|---|---|---|---|---|---|---|
| 60 | 250 | 80 | 450 | 95 | 690 | 108 | 1,000 |
| 65 | 290 | 82 | 475 | 98 | 750 | 110 | 1060 |
| 70 | 335 | 85 | 515 | 100 | 800 | 112 | 1120 |
| 75 | 387 | 88 | 560 | 102 | 850 | 115 | 1215 |
| 78 | 425 | 90 | 600 | 104 | 900 | 120 | 1400 |
Speed index: The letter following the load index indicates the maximum permitted speed. An ‘L’ is required for a 100 km/h rating.
| Index | km/h | Index | km/h | Index | km/h |
|---|---|---|---|---|---|
| J | 100 | M | 130 | Q | 160 |
| K | 110 | N | 140 | R | 170 |
| L | 120 | P | 150 | H | 180 |
Winter tyres: There is no requirement for winter tyres on trailers, as the wheels are not driven. An M+S or Alpine symbol is not required.
Tyre pressure: Trailer tyres require significantly higher pressure than car tyres. The correct pressure is specified in the vehicle documents or on the sticker on the trailer. Insufficient pressure is the most common cause of tyre damage.
Tread depth: the legal minimum is 1.6 mm. You can also recognise old tyres by fine cracks in the sidewall and tread base.
Replacement: Tyres and complete wheels.
