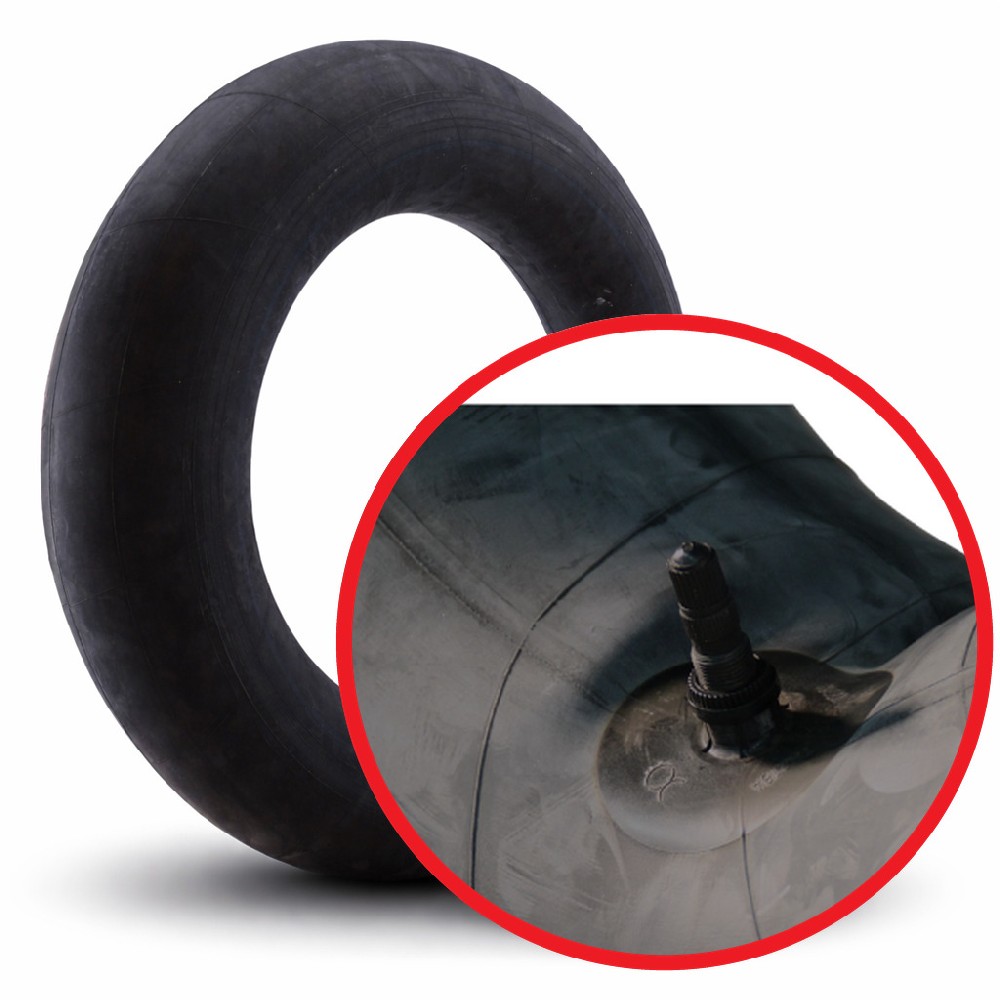

Tube 14.9/13-26 TR218A suitable for 420/70-26
Product.Nr.: 990017107
Manufacturer: Novio
This robust inner tube in size 14.9/13-26 is designed for demanding use in industrial and garden applications. It is ideal for machines and equipment that rely on a dependable air supply and high load capacity. With its suitability for tyre sizes such as 14.9/13-26 and 420/70-26, the tube offers flexible use with different tyre configurations. The TR218A valve ensures a secure seal and makes inflating and deflating easier, even with larger tyre cross-sections.
Technical data
- Tube size: 14.9/13-26
- Inch size: 26 inch
- also suitable for: 420/70-26
- Valve type: TR218A
Valve-specific data (TR218A):
- Valve type: Tractor/tube valve for agricultural and industrial tyres
- Design: Straight, screw-in metal valve with large air passage
- Typical valve hole diameter in the rim: approx. 16 mm
- Valve length (external): approx. 38–45 mm (depending on version)
- Valve core: Replaceable core for easy servicing and replacement
- Cap: Metal cap or plastic cap with seal for additional protection against dirt and moisture
Benefits and application range
This tube is specially designed for use in larger tyre formats and is suitable, among other things, for agricultural equipment, municipal machinery, trailers and various industrial machines. Compatibility with tyre size 420/70-26 enables use in modern wide tyres, as commonly fitted to tractors and work machines.
The TR218A valve ensures a fast air flow, which makes filling large volumes significantly easier and reduces downtime. The robust design of the valve is tailored to tough use in the field and on uneven ground. Overall, this tube offers a reliable, durable solution for users who value operational safety, easy handling and flexible application options.
Frequently asked questions about this product
The valve designation describes two things: the stem diameter — which must fit the hole in the rim — and the shape, i.e. straight or angled.
Only the bore matters for a proper fit: a valve fits perfectly only if its stem matches the bore in the rim. Whether it is straight or angled makes no difference — that is a question of accessibility.
An overview of the types:
| Type | Shape | Bore | typically used for |
|---|---|---|---|
| TR13 | straight, rubber | 11.5 mm | Car and trailer wheels |
| TR4 / TR6 | straight, short | 11.5 mm | Small wheels, garden tools |
| TR15 | straight, rubber | 16 mm | Agricultural machinery, tractor rims |
| TR87 | 90° angled | 11.5 mm | Small wheels, solid rims |
| JS8 (DIN 7777) | 90° angled, same as TR87 | 11.5 mm | small wheels, solid rims |
| JS2 | Approx. 70° angled | 11.5 mm | Industrial and small wheels |
| V3-02-7 (TR75) | 100° single-bend metal angle valve with screw-on base | 12.2 mm | Commercial vehicles, lorries, trailers, agricultural and industrial machinery such as forklift trucks |
| V3-06-3 | Triple-bend brass truck screw-on valve (90°/139°/139°) | 9.7 mm | 20-inch truck and trailer tubes (6.00-20 to 9.00-20), also 22.5-inch tube-type tyres |
| TR218A | Straight metal air-water valve, two-piece | 15.9–16 mm | High-volume tubular tyres for agricultural and industrial use, tractors |
V3-02-7 in detail: Also known as ETRTO V3.02.7 and US designation TR75. Dimensions: Horizontal leg length 22.5 mm, vertical leg length 71.5 mm, total height approx. 91 mm. The valve base is screwed on, not pressed in — this makes it significantly more robust than a rubber valve.
V3-06-3 in detail: Also known as ETRTO V3.06.3. Triple-bend brass screw-on truck valve: the first bend is 90°, the other two 139° each — this guides the filling end past the rim flange and keeps it accessible even with twin tyres and deep rim wells. Leg dimensions approx. 20.5 / 46 / 20.5 / 47.5 mm (approx. 135 mm developed length), rim hole 9.7 mm. The valve is fastened to the tube with a sealing washer and nut instead of being vulcanised in. In our range on the 20-inch tubes 6.00/6.50-20, 7.00/7.50-20, 8.25-20 and 9.00-20.
TR218A in detail — the valve for water ballast: What makes this type special is the option for liquid ballasting: the hose is partially filled with water to increase the vehicle’s weight and thus improve traction — a common practice with tractors.
- Design: straight, robust metal valve, usually in two parts. Unscrewing the inner CH3 valve insert creates an extra-large opening — allowing for quick filling with air or liquid.
- Rim bore: 15.9 to 16 mm (0.625 inches).
- Length: typically around 38 to 48 mm total height above the rim.
- Mounting: a rubber base approximately 80 mm in diameter for vulcanising onto the inner tube, plus a lock nut for secure attachment to the rim.
Reducing sleeves: A TR15 valve does not fit into an 11.5 mm bore. Conversely, there are sleeves that allow a TR13 valve to fit into a 16 mm bore.
Whether straight or angled is not a question of fit, but of accessibility: with closed rims or small wheels, it is often impossible to reach the valve with a pump using a straight valve — in which case an angled one is used.
Not sure which valve is fitted? A photo of the old valve is all we need to identify it. Choose from: inner tubes, bead tapes and valves.
