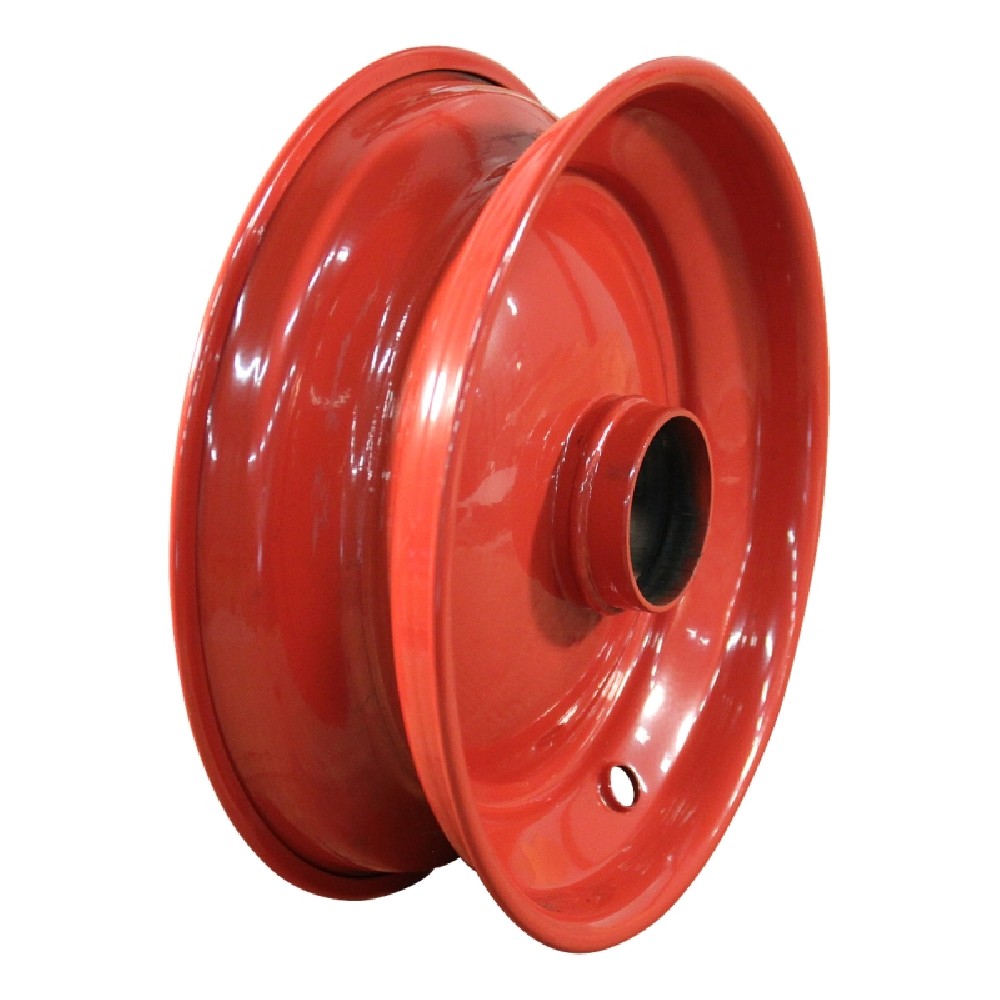

This robust steel rim in size 2.50Ax8H2 is designed for demanding industrial and garden applications. Thanks to the ball bearing seat on both sides and a hub length of 75 mm, it is ideal for use on trolleys, trailers, garden equipment and other work machines with moderate driving speeds up to 10 km/h. The red coating protects against corrosion and ensures good visibility in the working environment.

Technical data

• Product name: Wheel 2.50Ax8H2 ET0 Ball Bearing Seat NL75mm Steel Red
• Series: Series 51
• Inch size: 8 inch
• Rim: 2.50Ax8H2
• Offset: ET0
• 1/2/3-piece: 1-piece
• Seat (wheel): Ball bearing seat
• Ball bearing seat: both sides 47x14
• Hub length mm: NL75 mm
• Material thickness: 1.25 mm
• Max. speed: 10 km/h
• Valve hole: 11.5 +/-0.2
• Rim material: Steel
• Rim colour: Red
• Load capacity kg at 10 km/h: 655 kg
• Load capacity at 20 km/h: 575 kg
• Load capacity: 655 kg

Benefits and application range

This one-piece steel rim offers a high load capacity of up to 655 kg at 10 km/h and is therefore perfectly suited for heavy loads in industry, agriculture and horticulture. The double-sided ball bearing seat (47x14) enables stable and smooth bearing support, which reduces wear and ensures smooth running.

The ET0 offset facilitates use in common chassis designs, while the 11.5 mm valve hole allows the installation of suitable tubes and tyres. Thanks to the material thickness of 1.25 mm and the steel construction, the rim is particularly resistant to impacts and harsh operating conditions.

Typical applications include:

• Industrial carts and transport trolleys
• Trailers and hand trucks
• Garden tools and machinery
• Yard and facility equipment with low driving speed

Explanation of technical terms

• Offset (ET): Distance between the centre of the rim and the mounting face of the wheel hub. ET0 means that the mounting face is located in the centre of the rim.
• Ball bearing seat: Specially shaped area in the rim for accommodating ball bearings; here on both sides 47x14 mm.
• Hub length (NL): Total length of the hub, important for fitment on axles and in wheel mounts.
• Load capacity: Maximum load that the rim can safely carry at the specified speed.
• Max. speed: Maximum permissible speed at which load capacity and operational safety are ensured.
• Inch size: Refers to the rim diameter in inches (inch), here 8 inch.
