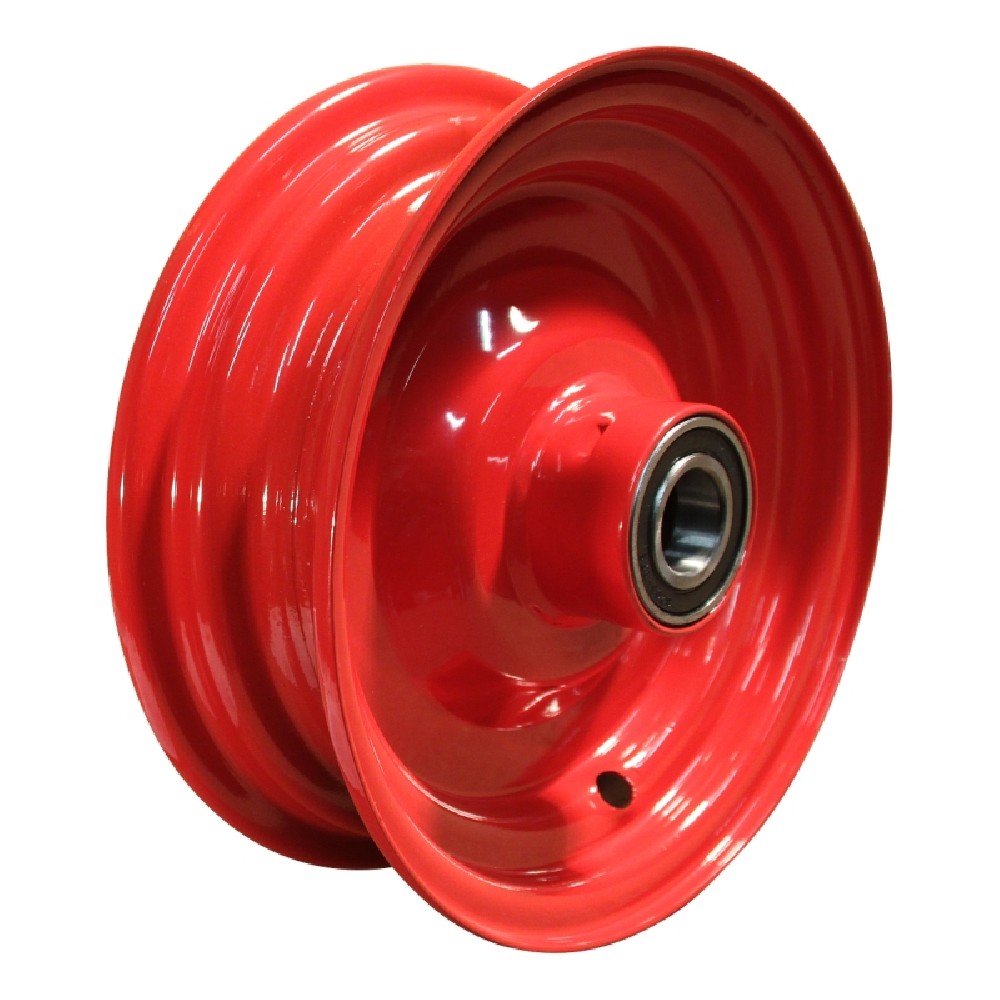

This robust 8 inch steel rim is specially designed for industrial applications, trailers, garden equipment and other transport solutions. Thanks to its solid construction, high load capacity and ball-bearing hub, it is ideal for slow-moving vehicles and equipment up to 10 km/h. The red painted surface ensures good visibility and corrosion protection, while the precisely manufactured hub and bearing technology provides smooth running.

Technical data

• Product type: Wheel / rim
• Series: Series 51
• Inch size: 8 inch
• Rim: 2.50Ax8H2
• Offset: ET0
• Design: 1-piece
• Axle bore Ø mm: Ball bearing Ø20
• Hub length mm: NL100 mm
• Bearing type: 6304 2RS C3
• Tube diameter: 52 mm
• Hole diameter: 20 mm
• Bearing width: 15 mm
• Rim material: Steel
• Rim colour: Red
• Max. load capacity: 655 kg
• Max. speed: 10 km/h

Advantages and application range

This 1-piece steel rim with 20 mm ball bearing seat and 100 mm hub length is designed for high loads up to 655 kg and is therefore ideal for industrial trailers, transport carts, agricultural machinery, garden equipment and other utility vehicles in the low-speed range. The ET0 version (offset 0) facilitates installation when the rim is centred in relation to the hub mounting surface.

The bearing type 6304 2RS C3 offers protected operation (double-sided seal "2RS") and increased internal clearance ("C3") for use under varying loads. With a tube diameter of 52 mm and a hole diameter of 20 mm, the rim is matched to common axle systems. The red steel rim combines high stability with good visibility in industrial environments.

Explanation of technical terms

• Inch size (inch): Common unit of measurement for wheels and rims; 8 inch corresponds to the approximate rim diameter.
• Offset (ET): Distance between the centre of the rim and the mounting surface on the hub. ET0 means that the mounting surface is located in the middle of the rim width.
• Ball bearing Ø20: The rim is designed for axles with 20 mm diameter; the ball bearing accommodates this axle.
• 6304 2RS C3: Designation of the deep groove ball bearing. "6304" is the size, "2RS" stands for double rubber seal (protection against dirt and moisture), "C3" describes increased internal clearance, suitable for higher loads and temperature differences.
• Hub length (NL): Total length of the hub, here 100 mm, important for matching the axle length and any spacer sleeves.
• Max. load capacity: Maximum permissible load that the rim can safely carry under the specified operating conditions.
• Max. speed: Maximum speed for which the wheel/rim is designed in its intended use; here 10 km/h for slow-moving equipment.
