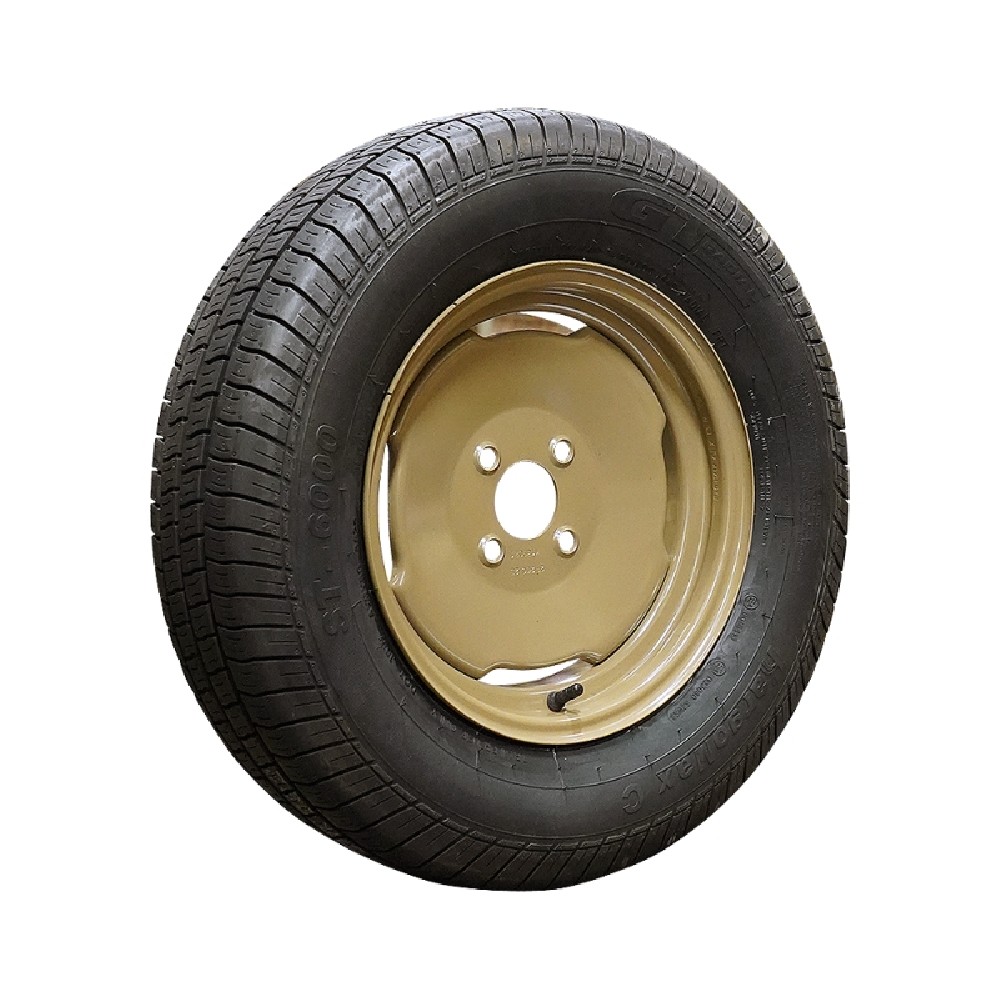

This high-quality complete wheel from GT Radial combines the robust Kargomax ST-6000 M+S tyre with a sturdy steel rim in grey green. It is specially designed for trailers, industrial and transport applications where reliability, high load capacity and good running characteristics are required. Thanks to the tubeless tyre design (TL) and the robust 1-piece steel rim, the wheel is ideal for regular use under demanding conditions.

Technical data

• Product name: Complete wheel 165 R13C Kargomax ST-6000 M+S 4Jx13H ET0 60/100/4 steel grey green
• Brand: GT Radial
• Item: Complete wheel
• Series: serie 48
• Tyre size: 165 R13C
• Diameter: 592 mm
• Width: 158 mm
• Tread pattern: Kargomax ST-6000 M+S
• Rim size: 13 inch
• Tyre type: TL (tubeless)
• Rim: 4Jx13H
• Offset: ET0
• 1/2/3-piece: 1-piece
• Bolt pattern: 60/100/4
• Material thickness: 2,2/3,5 mm
• Load index (LI): 96/94
• Speed index (SI): N
• Wheel material: Steel
• Rim colour: Grey green
• Max. load capacity: 600 kg
• Tyre pressure: 4,5 bar
• Max. speed: 40 km/h

Benefits and application range

This complete wheel is designed for use on trailers, light commercial vehicles, agricultural transporters and industrial equipment where a high load capacity of up to 600 kg per wheel is required. The M+S tread (mud and snow) provides good grip on different surfaces and makes the wheel reliable even in changing weather conditions.

The sturdy steel rim with 1-piece design and a material thickness of 2,2/3,5 mm ensures high dimensional stability and durability. The bolt pattern 60/100/4 allows installation on many common trailer axles and chassis. With a speed index N and a maximum operating speed of 40 km/h, this complete wheel is ideal for slow transport journeys in yards, in agricultural use or for municipal applications.

Explanation of technical terms

• TL (tubeless): Tyre without inner tube, mounted directly on the rim without a separate tube. Usually offers better puncture resistance and easier mounting.
• LI (load index): The load index 96/94 indicates the maximum permissible load capacity of the tyre at the correct inflation pressure. Together with the specification “Max. load capacity: 600 kg”, it defines the actual load limit of the complete wheel.
• SI (speed index): The speed index N defines the maximum permissible speed for which the tyre is designed. Here, the permissible maximum speed is 40 km/h.
• M+S: Marking for mud and snow. Indicates a tread pattern designed for better traction on soft or slippery surfaces.
• Offset (ET): Dimension in millimetres indicating how far the rim sits inwards or outwards in the wheel arch. ET0 means that the centreline of the rim coincides with the mounting face.
• Bolt pattern 60/100/4: Describes the mounting dimensions of the rim (centre bore and pitch circle dimensions as well as number of wheel bolts), important for correct fitment on the hub.
