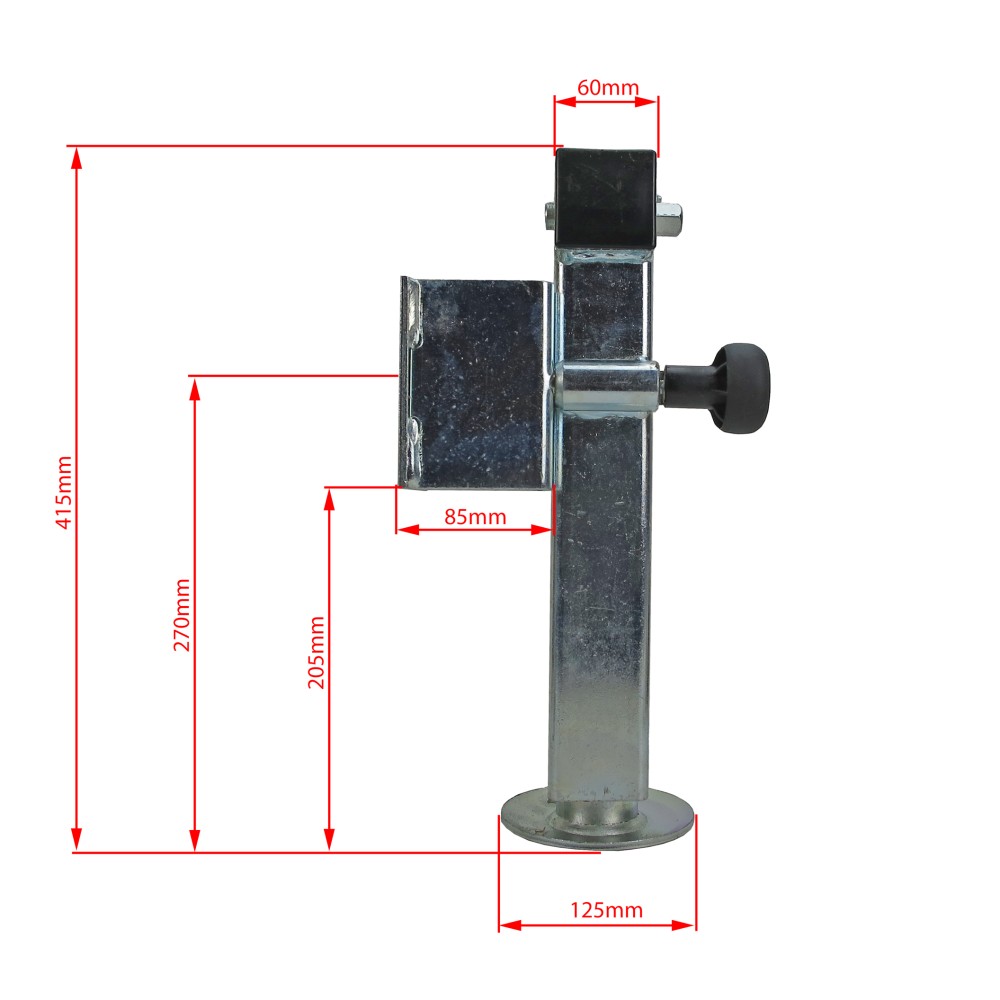

Support foot 415mm – side view showing galvanized finish and mid-position crank handle.

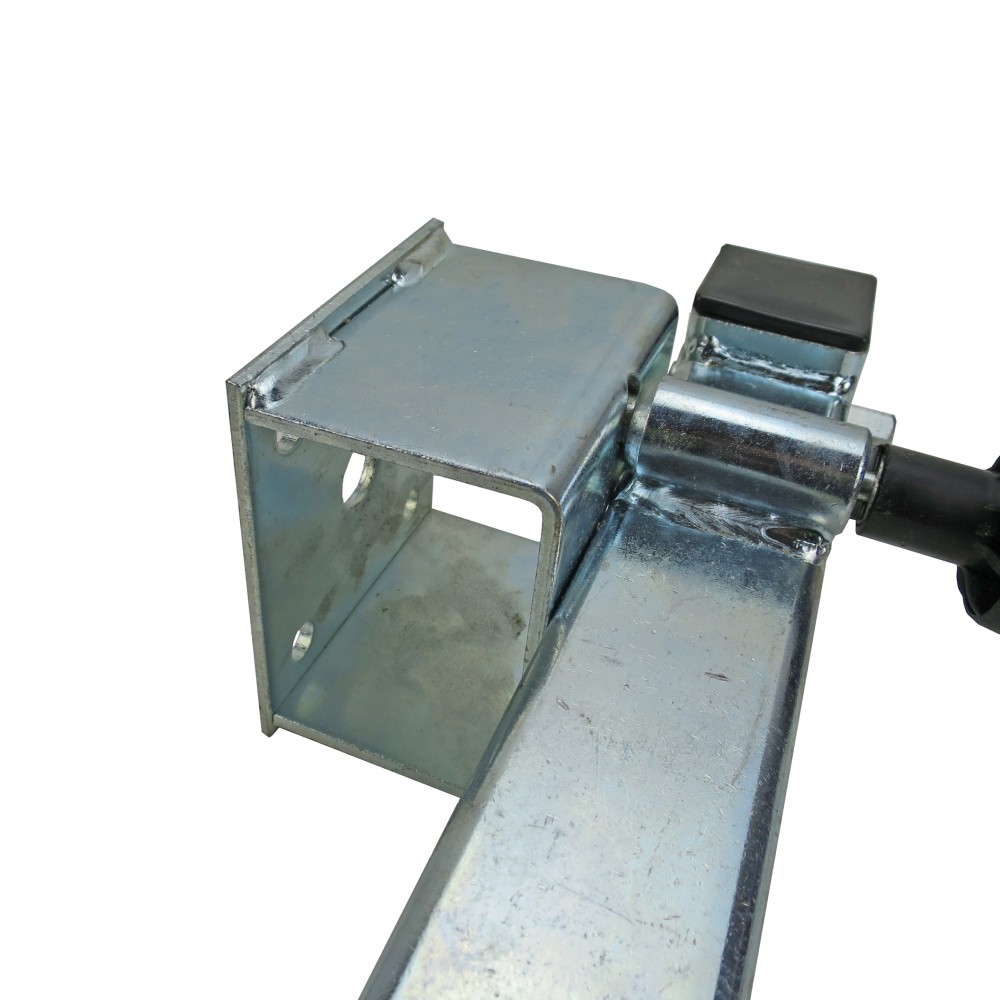

Support foot 415mm swivel support – angled view showing galvanized finish and crank handle with flange depth 85mm.

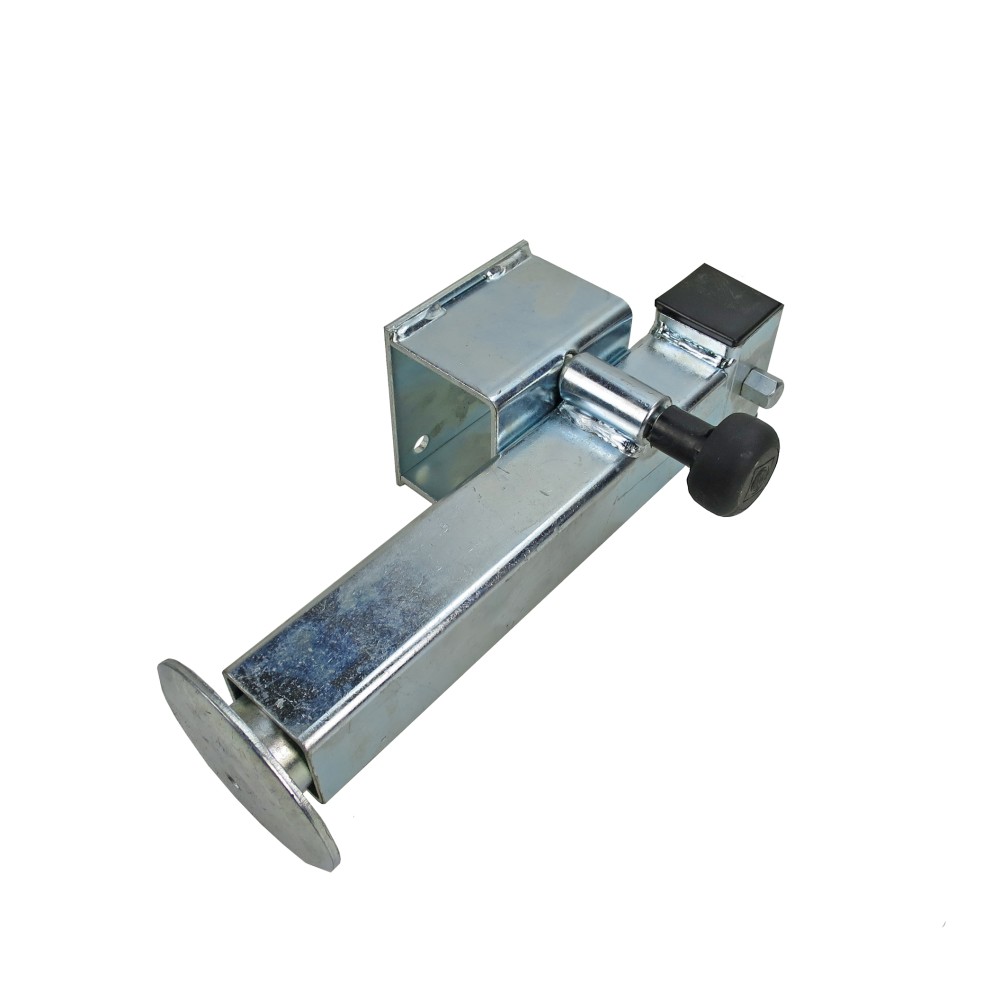

Support foot 415mm – side view showing galvanized steel finish and crank handle with 85mm flange depth.

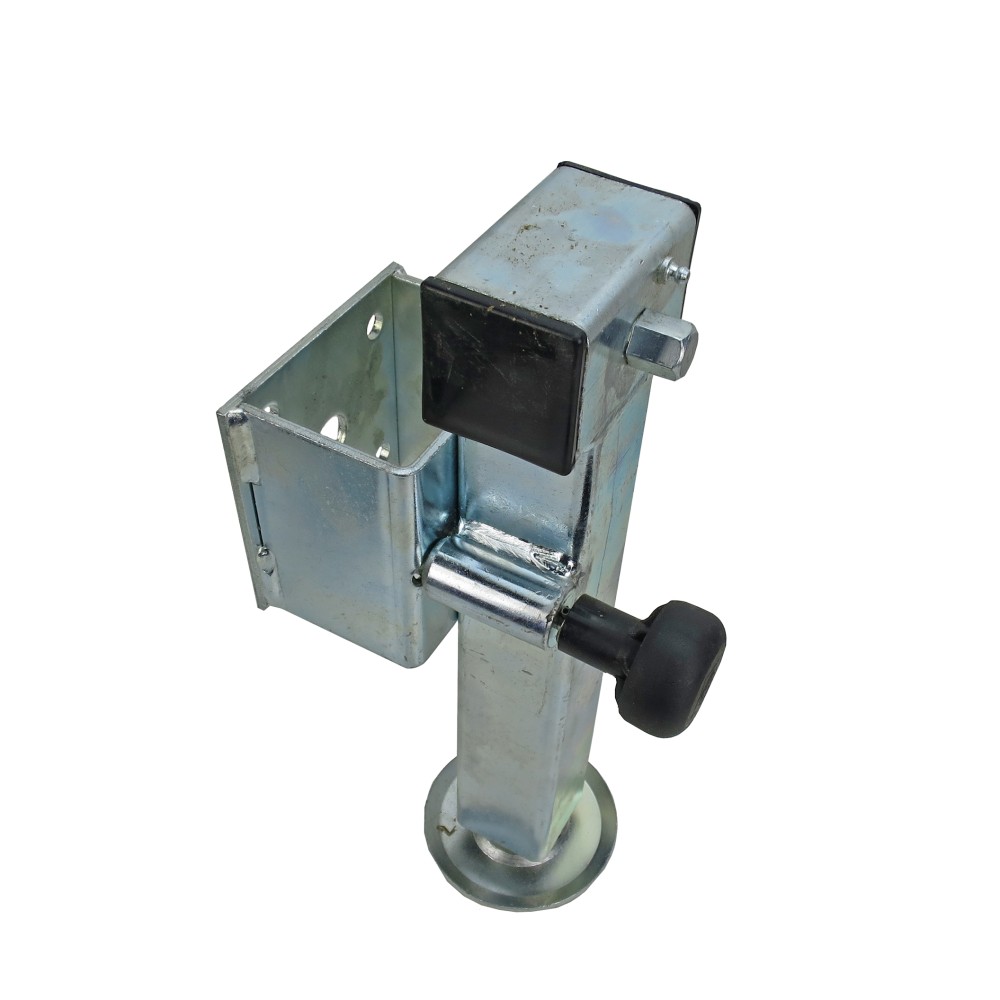

Support foot 415mm – side view showing silver galvanized steel and black crank handle with 85mm flange depth.
Support foot 415mm – front view showing galvanized steel finish and black flange depth of 45mm.

Support foot 415mm swivel support crank support swivel support flange depth 85mm

102,90 €



Support foot 415mm swivel support crank support swivel support flange depth 85mm

102,90 €

Shipping price from: 6,90 €

weight 8,10 KG

delivery time 2-4 Werktage

Product Produkt lagernd

Support foot 415mm swivel support crank support swivel support flange depth 85mm

Product.Nr.: 990011267

Manufacturer: JB Brandl ®

There are no reviews for this product
Foldable support foot with hexagonal connection SW 19 galvanized steel total length 415 mm Dimension from flange center to support plate = 270mm stroke 240 mm static load capacity 1300kg incl. flange hole size 80 x 80mm flange depth: 85mm This support is suitable for heavy trailers like mini-excavator transporters, or trailers with high loaders, where the supports are fixed in the substructure with the help of a flange (not included). The flange allows the support to be rotated 90 degrees.
  more details   Question ?   Have you seen it cheaper?
Support foot 415mm swivel support crank support swivel support flange depth 85mm

  • Foldable support foot
  • with hexagonal connection SW 19
  • galvanized steel
  • total length 415 mm
  • Dimension from flange center to support plate = 270mm
  • stroke 240 mm
  • static load capacity 1300kg
  • incl. flange hole size 80 x 80mm
  • flange depth: 85mm

This support is suitable for heavy trailers like mini-excavator transporters, or trailers with high loaders, where the supports are fixed in the substructure with the help of a flange (not included). The flange allows the support to be rotated 90 degrees.
