Alko 750kg 2355mm drawbar type R4-A1 750kg Vkt 60mm incl. 13-pin wiring harness 5m
Product.Nr.: 990014561

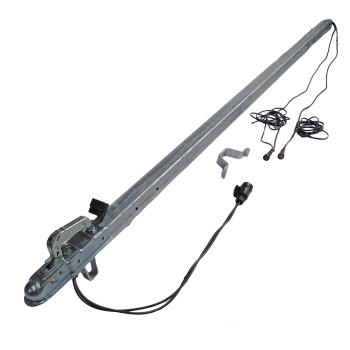

Alko drawbar/draw tube up to 750 kg permissible total weight suitable for car trailers permissible drawbar load max. 75kg length 2355mm (measured from centre of ball to end of drawbar) total length approx. 2410mm square tube 60 x 60 x 3mm straight design
- hot-dip galvanised steel
- incl. ball coupling
- incl. clamp bracket
- incl. plug holder
- incl. type plate

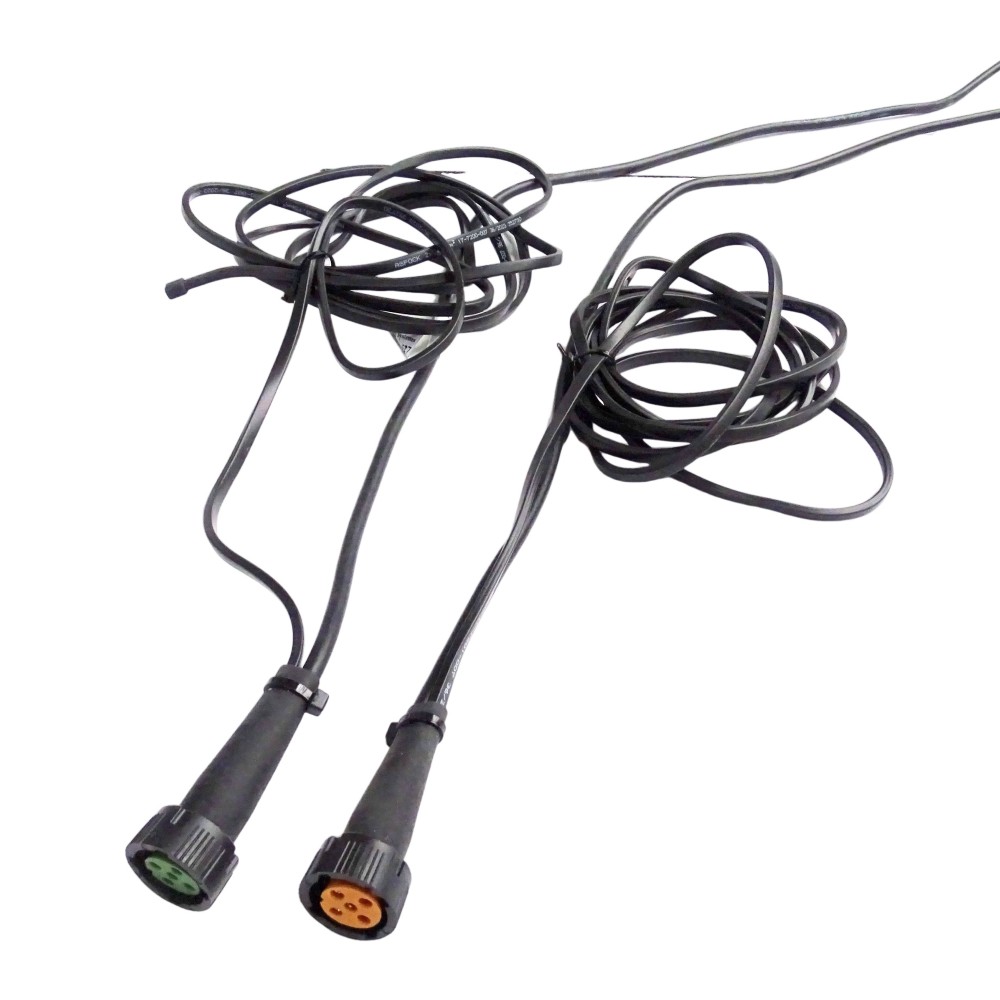

- incl. 13-pole cable set with 5m length and bayonet connection + 3m DC output
- the cable set is already pre-assembled in the drawbar spar

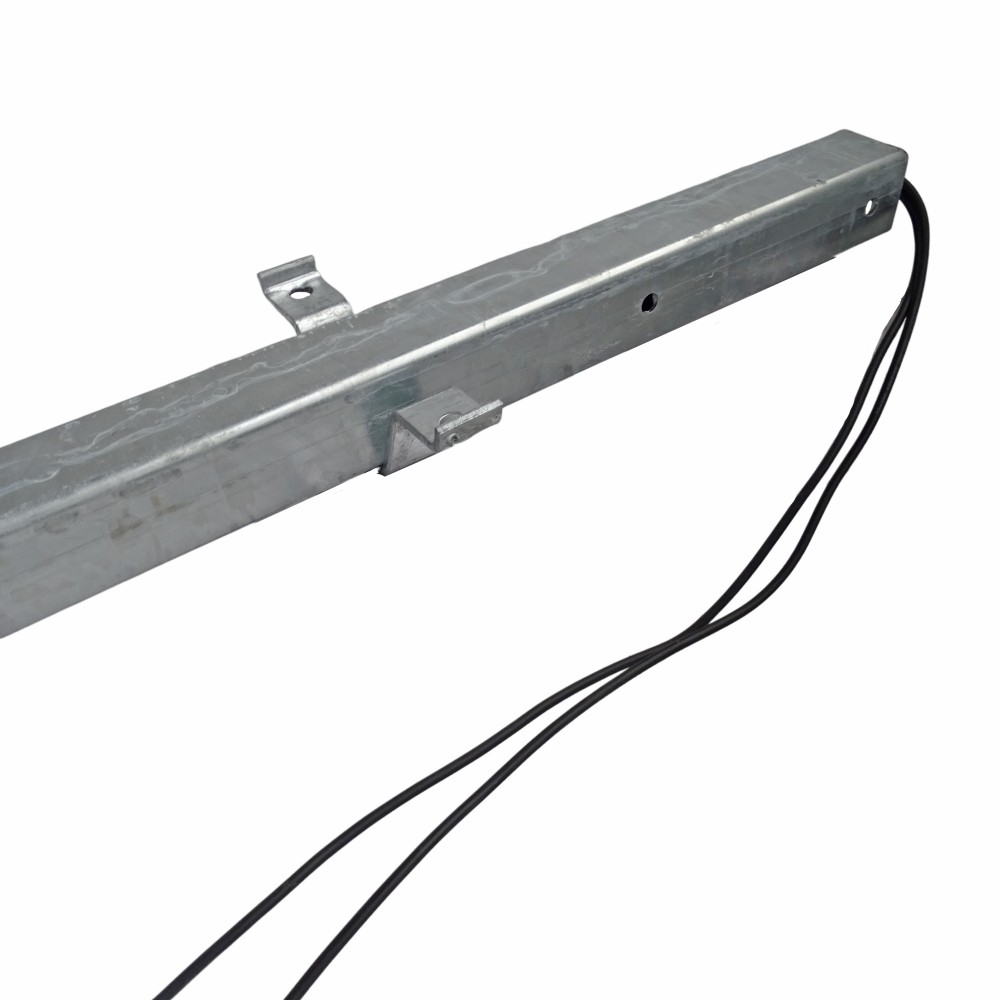

- the drill holes for a jockey wheel holder are already present
- Comparison number: 20035005
The AL-KO square drawbar is designed for car trailers with a permissible total weight of up to 750 kg and provides a reliable connection between the trailer coupling and the trailer frame. With a length of 2355 mm (measured from the centre of the ball to the end of the drawbar) and a total length of approx. 2410 mm, it is ideal for a range of different trailers. The straight design of the drawbar is made of a robust, hot-dip galvanised steel tube (60 x 60 x 3 mm), which is optimally protected against corrosion and ensures a long service life.

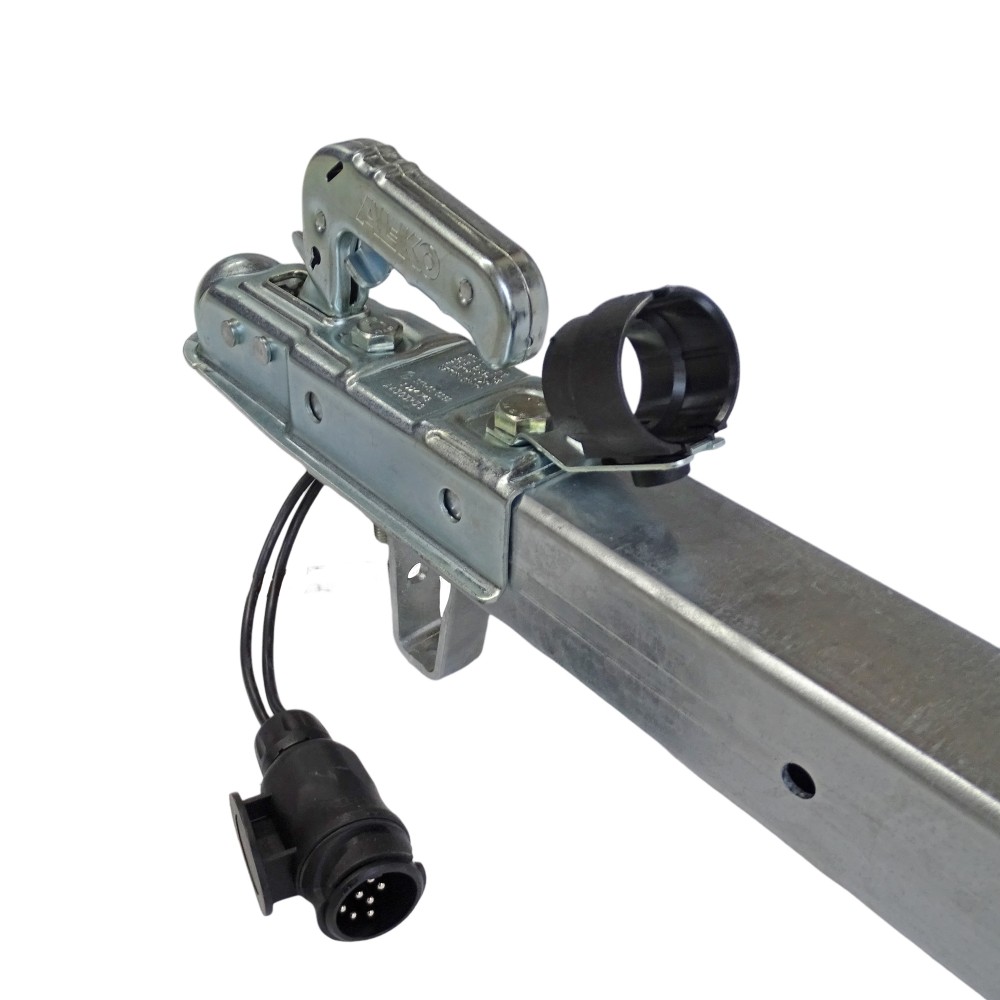

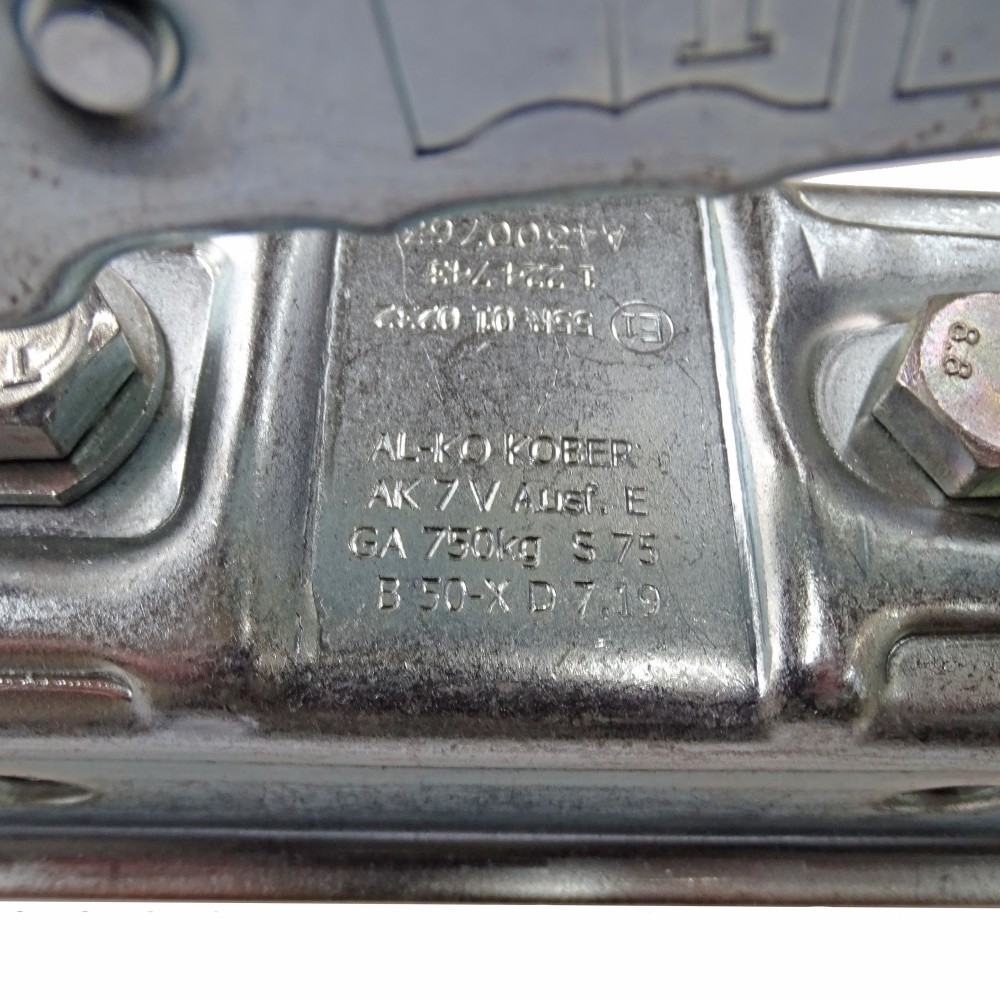

The drawbar is equipped with an AL-KO AK 7 ball coupling, which offers an integrated safety indicator for additional control while driving. Thanks to the maximum permissible drawbar load of 75 kg, it is ideally suited for common requirements in car trailer operation. The pre-assembled 5 m long, 13-pin cable set with a bayonet connection ensures a simple and secure electrical connection. The drawbar also features a clamp, a plug holder and a type plate. Existing drill holes allow for easy retrofitting of a support wheel holder to make the trailer even more flexible.
The cross-reference number 20035005 ensures that the drawbar is compatible with the corresponding trailer components.
