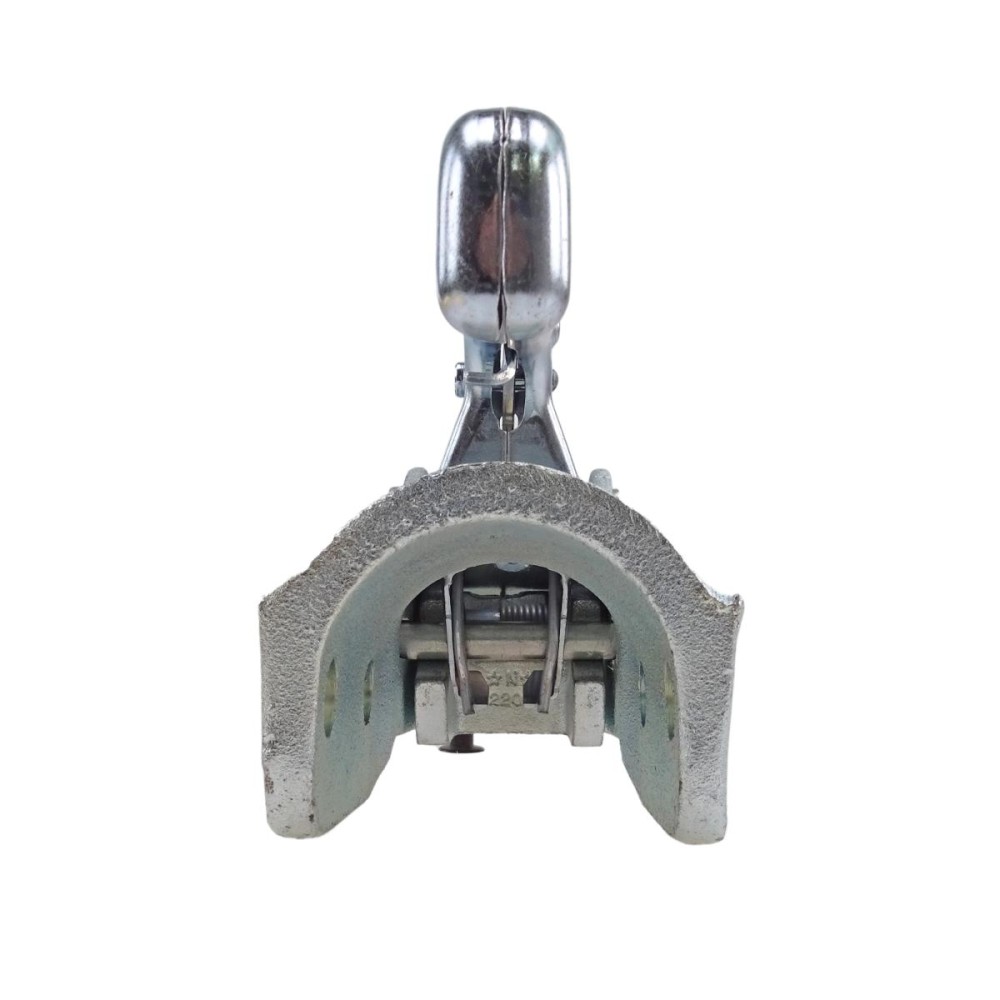

Winterhoff ball coupling TYPE EM350R CH 60mm round tube bore 14.5/14.5mm drawbar jaw
123,90 €
Winterhoff ball coupling TYPE EM350R CH 60mm round tube bore 14.5/14.5mm drawbar jaw
123,90 €
Shipping price from: 6,90 €
Product Produkt i lager
Winterhoff ball coupling TYPE EM350R CH 60mm round tube bore 14.5/14.5mm drawbar jaw
Product.Nr.: 990014095
- Winterhoff ball coupling
- TYPE EM350R CH version
- up to 3500kg gross vehicle weight
- drawbar load up to 200kg
- for drawbar 60 mm
- with wear indicator
- Bore 14.5 / 14.5 mm
- Drill hole spacing 54mm
The Winterhoff ball coupling type EM350R in the CH version is designed for use with drawbars with a diameter of 60 mm and supports a permissible total weight of up to 3500 kg. With a maximum support load capacity of 200 kg, it offers a secure and resilient connection. Equipped with a practical wear indicator, it enables quick and easy checking of the condition to ensure safety during operation. It is mounted using holes with a diameter of 14.5 mm and a hole spacing of 54 mm, which ensures a precise fit.
Frequently asked questions about this product
Ball head on the towing vehicle: The new ball head has a diameter of 50 mm; the wear limit is 49 mm. Measure in several directions using a calliper — the ball wears down in an oval shape, and even a single point measuring less than 49 mm means it needs replacing.
Tow ball coupling on the trailer: Signs include noticeable play on the ball, rattling whilst driving, or a coupling that no longer engages properly. Many couplings have a wear indicator on the handle — if the pointer is in the red zone, it needs replacing.
Assess both together: a new coupling fitted to a worn-out ball will continue to rattle.
Lubrication: The ball and coupling wear out much faster if left dry. An important exception is anti-sway couplings: their friction linings must remain grease-free; in this case, only the ball is cleaned. Grease on the linings renders the anti-sway damping ineffective and ruins the linings.
A worn-out pair will be flagged during the annual general inspection. Replacement: Ball couplings and accessories.
