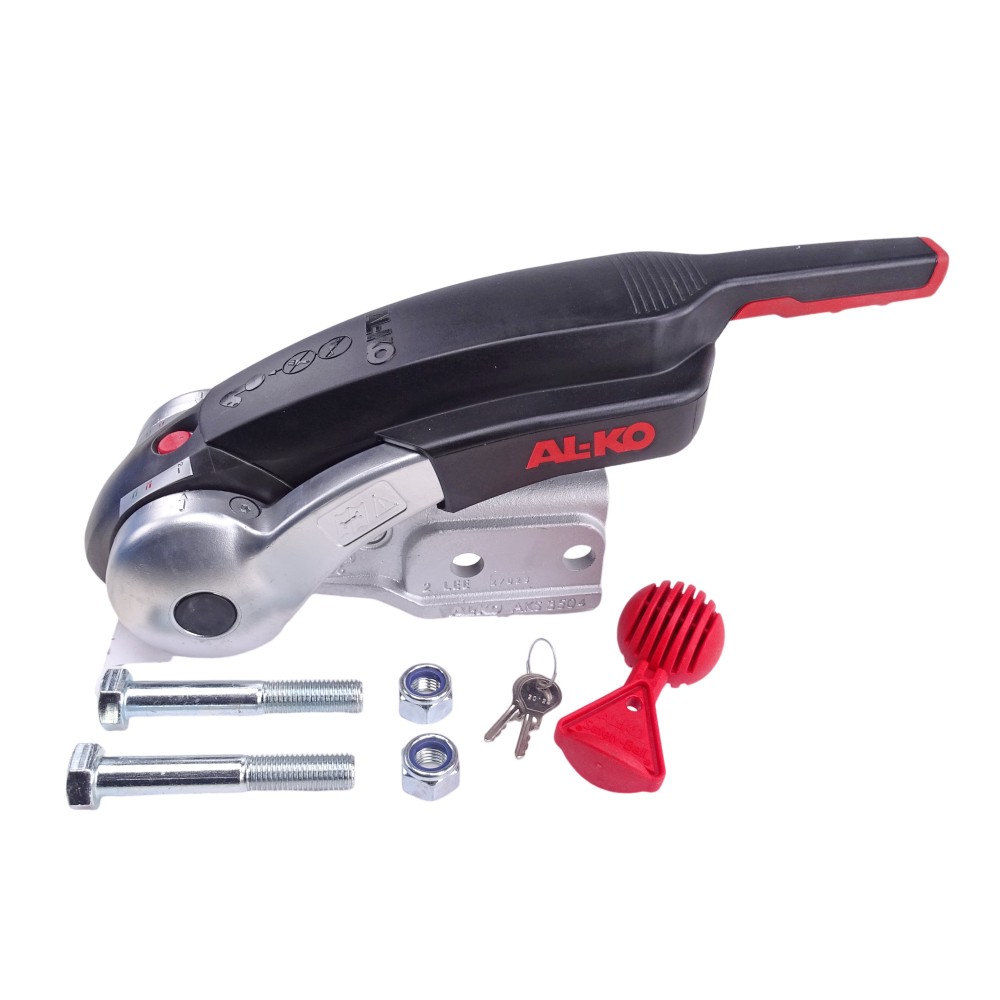

Alko AKS 3504 – front view showing anti-sway coupling, red safety cover, and locking key on a plain white background.
Alko AKS 3504 – front view showing black and silver anti-sway coupling with anti-theft device and locking lever.

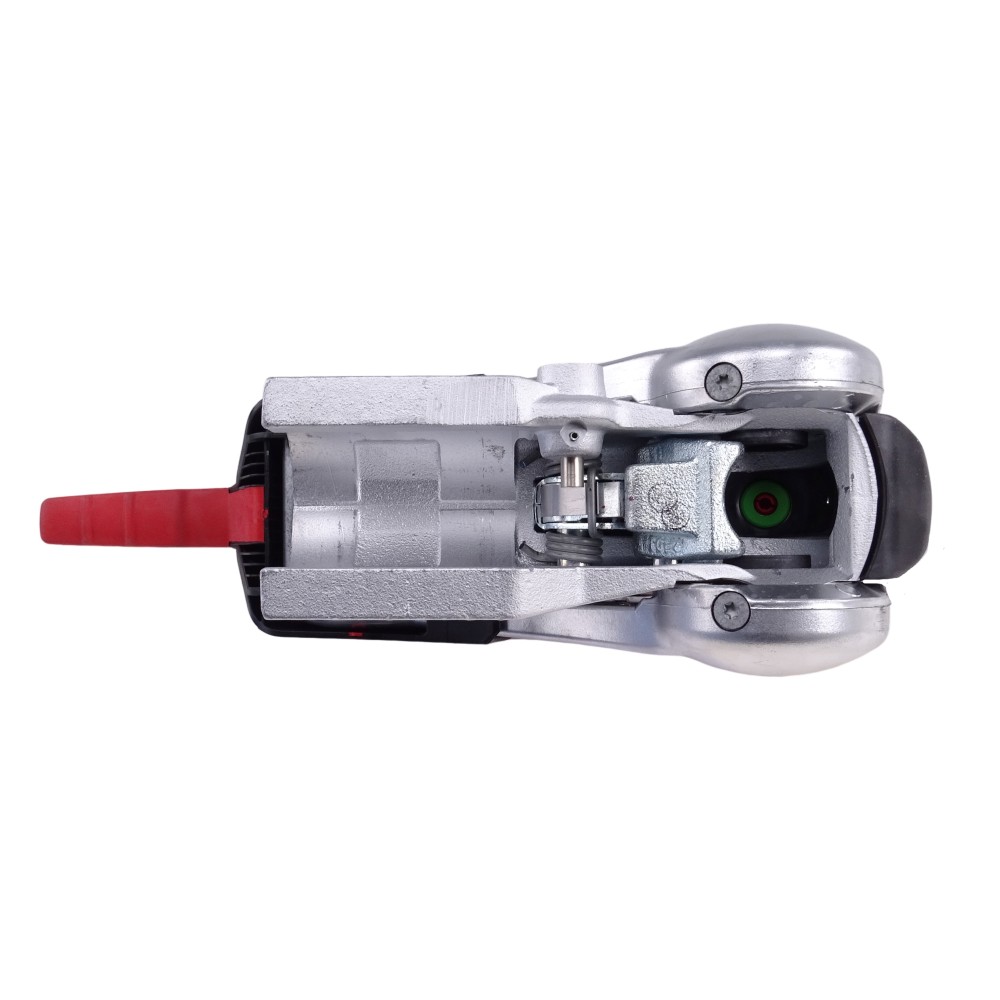

Alko AKS 3504 anti-roll hitch – side view showing black and silver anti-sway mechanism and locking lever.

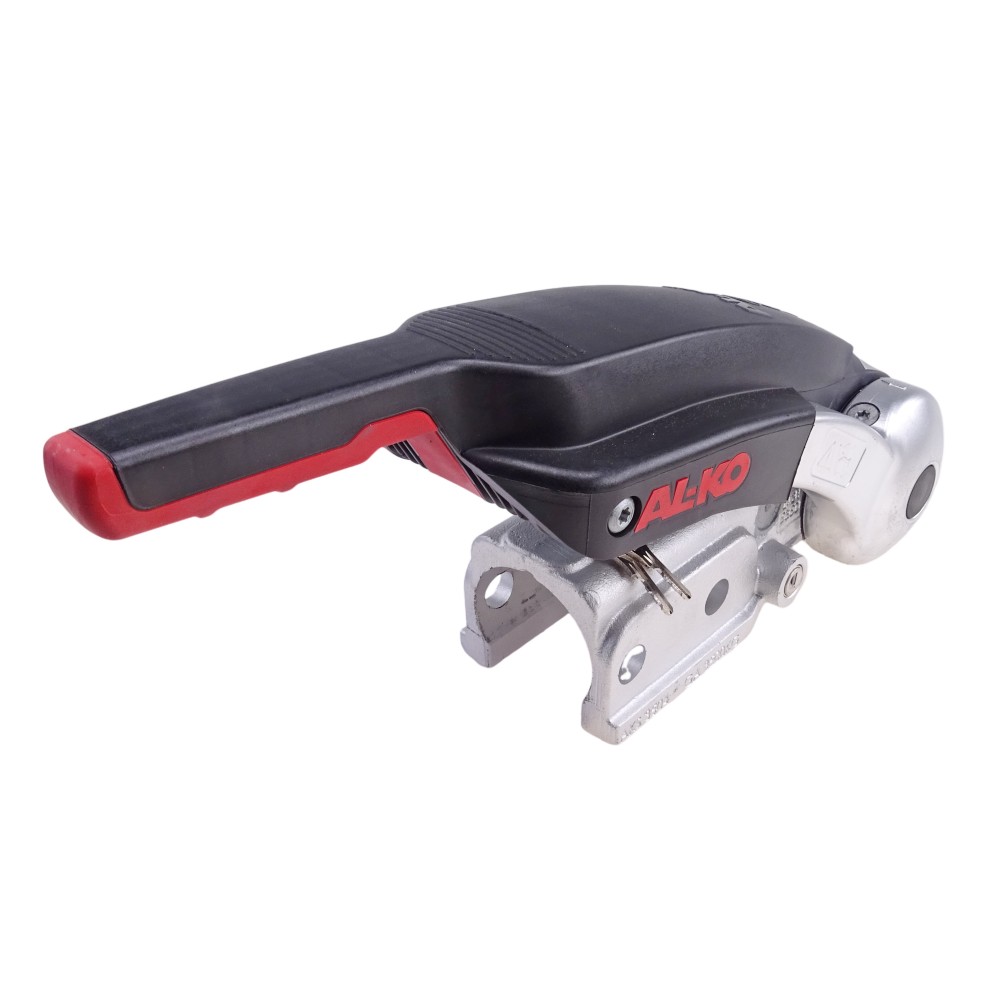

Alko AKS 3504 – side view showing black handle, red grip, and anti-theft lock on a plain white background.
Alko AKS 3504 – front view of anti-sway coupling in silver and black with key lock and galvanized finish.

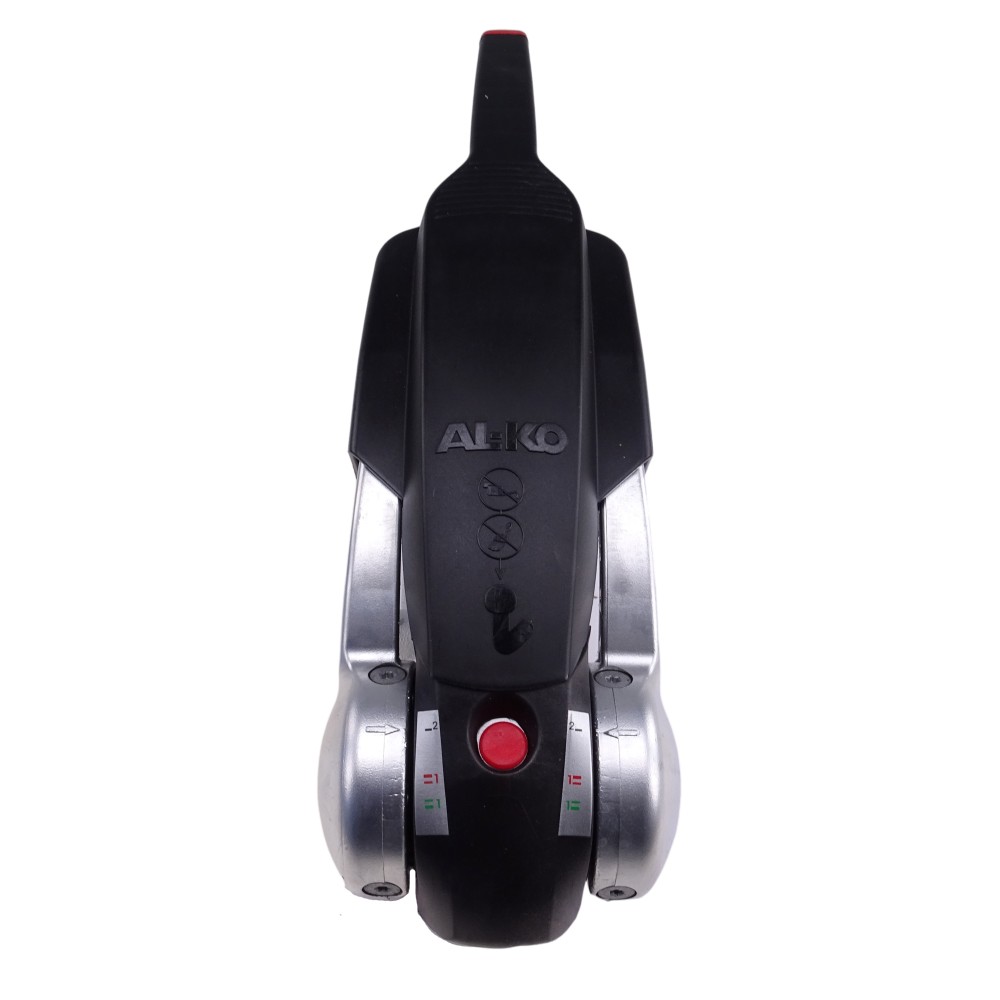

Alko AKS 3504 – top view of anti-roll hitch with red lever and silver finish, featuring integrated theft protection.
Alko AKS 3504 – top view of anti-sway coupling featuring a red button and locking mechanism in black and silver.
Alko AKS 3504 – front view showing the anti-sway coupling with a red button and metal housing in black and silver.
Alko AKS 3504 anti-roll hitch – front view showing silver galvanized bolts with hexagonal heads and threaded shafts.
Alko AKS 3504 anti-roll hitch – front view showcasing red anti-sway design and integrated theft protection feature

Alko AKS 3504 anti - roll hitch 3600kg M14 incl. anti-theft device

638,90 €



Alko AKS 3504 anti - roll hitch 3600kg M14 incl. anti-theft device

638,90 €

Shipping price from: 6,90 €

weight 5,00 KG

delivery time 2-4 Werktage

Product Produkt lagernd

Alko AKS 3504 anti - roll hitch 3600kg M14 incl. anti-theft device

Product.Nr.: 990010795

Manufacturer: ALKO

There are no reviews for this product
  • Alko AKS 3504
  • up to 3600 kg permissible total weight
  • for 60mm drawbars
  • drill holes: 14,5mm
  • permissible drawbar load: 350kg
  • incl. integrated anti-theft device and safety ball
  • ALKO reference number: 1225763
  • Effectively suppresses any rolling and pitching movements of the trailer
  • enables a higher theoretical maximum speed
  • with 4 friction linings
  • In an emergency situation, the trailer can be stabilised more quickly with the AKS
  • Scope of delivery:
  • 1 x ALKO AKS 3504
  • 1 x integrated anti-theft device
  • 1 x safety ball
  • 2 x M14 hexagon bolts
  • 2 x M14 self-locking nuts
  more details   Downloads   Question ?   Have you seen it cheaper?
Alko AKS 3504 anti - roll hitch 3600kg M14 incl. anti-theft device

The AL-KO AKS 3504 anti-sway coupling is designed for trailers with a permissible total weight of up to 3600 kg and is suitable for drawbars with a diameter of 60 mm. With a permissible drawbar load of 350 kg, this coupling offers stable stabilisation of the trailer combination. Thanks to the integrated anti-sway technology, the AKS 3504 effectively suppresses unwanted rolling and pitching movements of the trailer, which is particularly advantageous at higher speeds or in critical driving situations. The four friction linings ensure optimum damping. This enables a higher theoretical maximum speed and helps to calm the trailer down more quickly in the event of sudden driving manoeuvres. In addition, the coupling is equipped with an integrated anti-theft device that makes unauthorised access more difficult. The safety ball supplied prevents objects from being inserted into the coupling when the trailer is not connected to the towing vehicle. The scope of delivery includes the AL-KO AKS 3504, an integrated anti-theft device, a safety ball, two M14 hexagon bolts and two M14 self-locking nuts. The holes in the coupling have a diameter of 14.5 mm. The AL-KO reference number is 1225763.

 Bedienungsanleitung_ALKO_AKS_3004_3504.pdf (7.39 MB)

Frequently asked questions about this product

Ball head: nominal diameter 50 mm, wear limit 49 mm
Nominal dimension, wear limit and the three measurement directions on the ball joint

Ball head on the towing vehicle: The new ball head has a diameter of 50 mm; the wear limit is 49 mm. Measure in several directions using a calliper — the ball wears down in an oval shape, and even a single point measuring less than 49 mm means it needs replacing.

Tow ball coupling on the trailer: Signs include noticeable play on the ball, rattling whilst driving, or a coupling that no longer engages properly. Many couplings have a wear indicator on the handle — if the pointer is in the red zone, it needs replacing.

Assess both together: a new coupling fitted to a worn-out ball will continue to rattle.

Lubrication: The ball and coupling wear out much faster if left dry. An important exception is anti-sway couplings: their friction linings must remain grease-free; in this case, only the ball is cleaned. Grease on the linings renders the anti-sway damping ineffective and ruins the linings.

A worn-out pair will be flagged during the annual general inspection. Replacement: Ball couplings and accessories.
