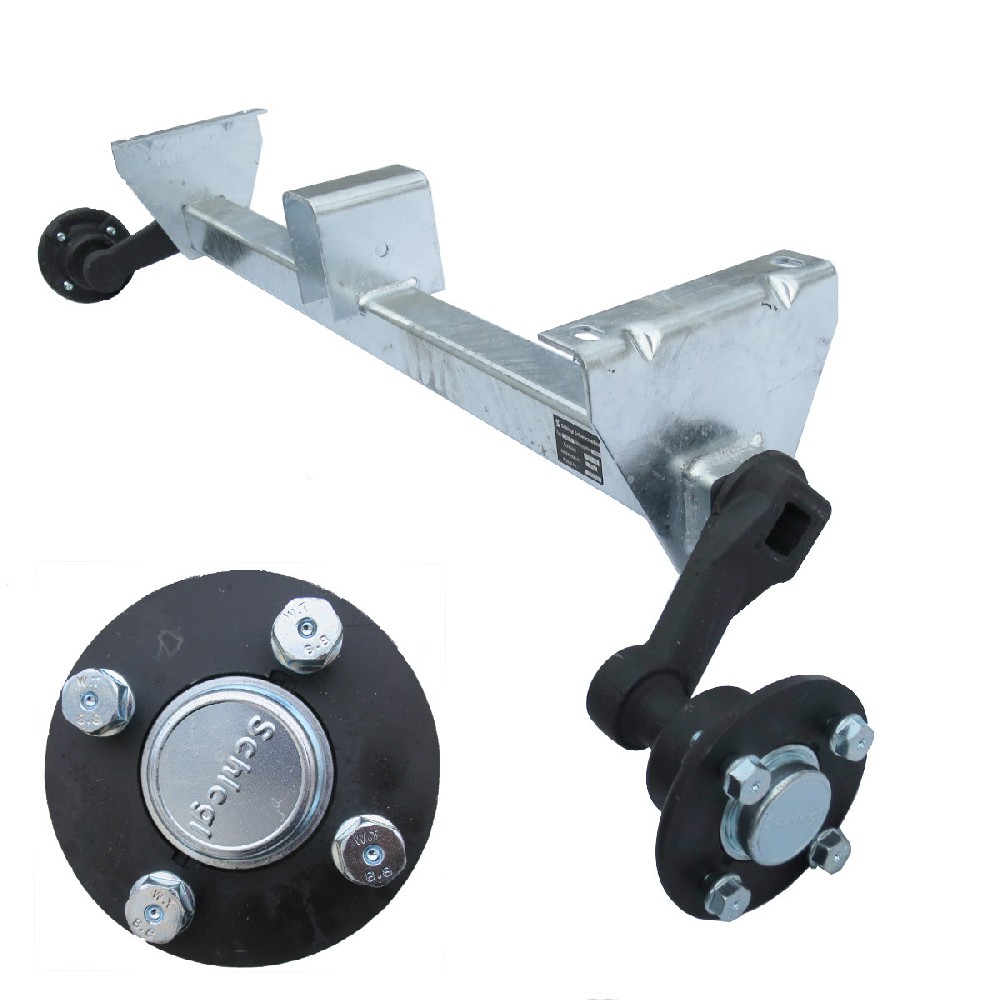

Schlegl 750 kg trailer axle MB8 – front view showing silver galvanized finish and 4x130 bolt pattern.
Schlegl 750 kg trailer axle MB8 – front view showing silver galvanized finish and 4x130 bolt pattern.

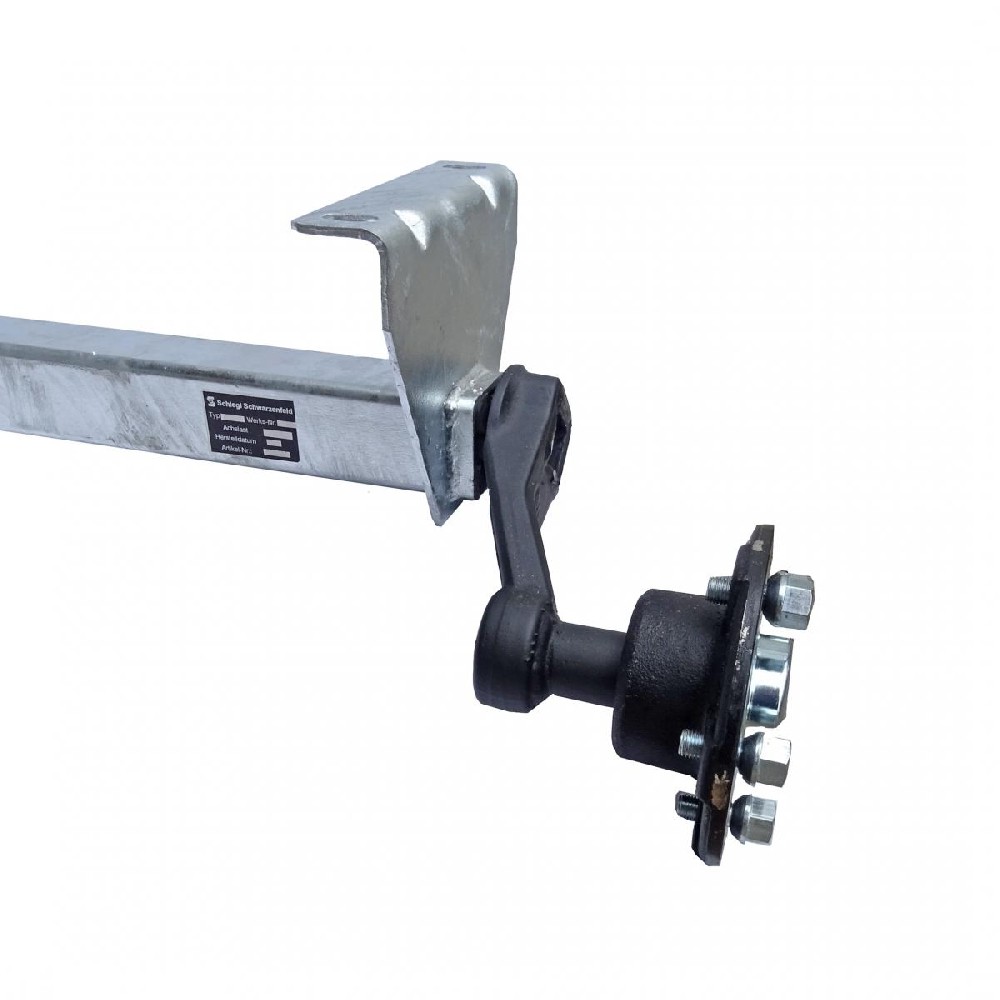

Schlegl 750 kg trailer axle MB8 – side view showing silver galvanized finish and high support bracket.

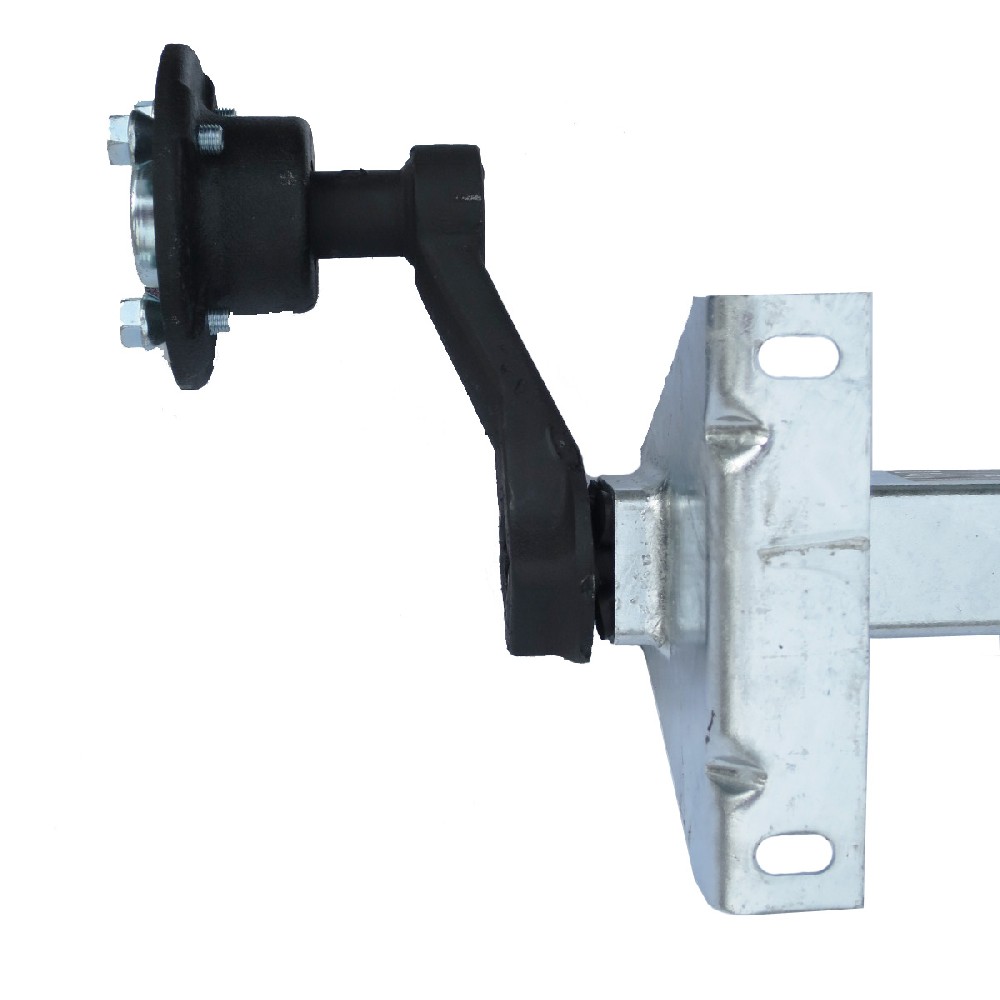

Schlegl 750 kg trailer axle MB8 – side view showing black rubber bushing and galvanized finish.
Schlegl 750 kg trailer axle MB8 – side view showcasing black and silver finish with 1000 mm length and 4x130 bolt pattern.
Schlegl 750 kg trailer axle MB8 – front view showing high support block and 4x130 bolt pattern in silver and gray.
Schlegl 750 kg trailer axle MB8 – side view showing silver galvanized finish and 4x130 bolt pattern.
Schlegl 750 kg trailer axle MB8 – top view showing black axle with 4x130 bolt pattern and maintenance-free design.
Schlegl 750 kg trailer axle MB8 – front view showing black axle with 1000 mm length and 4x130 bolt pattern.

Remaining stock Schlegl 750 kg trailer axle MB8 – 1000 mm – 4x130 – high support block

186,90 € RRP 226,90 € -18 %

add.Bulky goods surcharge 39,90 €

Cheapest price in the last 30 days: 226,90 €


Danger !!! Only 1 Piece available



Remaining stock Schlegl 750 kg trailer axle MB8 – 1000 mm – 4x130 – high support block

186,90 € RRP 226,90 € -18 %

add.Bulky goods surcharge 39,90 €

Cheapest price in the last 30 days: 226,90 €

Shipping price from: 6,90 €

weight 29,00 KG

delivery time 8-14 werkdagen

Product Product in voorraad


Danger !!! Only 1 Piece available

Remaining stock Schlegl 750 kg trailer axle MB8 – 1000 mm – 4x130 – high support block

Product.Nr.: RP-990017698

Manufacturer: Schlegl

There are no reviews for this product
Schlegl running axle unbraked TYPE MB8 maintenance-free rubber spring axle permissible axle load 750kg Wheel connection 4 x 130 (mainly used in France) Contact dimension (A) 1000mm contact dimension (C) 1420mm Trestle height (H) 100mm Steering knuckle (L) 145mm Axle tube 60mm square Bolt hole spacing 160mm Wheel bearing: Compact bearing Axle beam: Hot-dip galvanised steel Approved. Speed up to 140 km/h (Germany 100 km/h) incl. wheel bolts (M14 x 1.5mm) This axle is ideal for trailer construction or as a replacement for various axle manufacturers of your car trailer.
  more details   Downloads   Question ?   Have you seen it cheaper?
🤍 Add to wish list
Remaining stock Schlegl 750 kg trailer axle MB8 – 1000 mm – 4x130 – high support block

  • Schlegl running axle unbraked
  • TYPE MB8
  • maintenance-free rubber spring axle
  • permissible axle load 750kg
  • Wheel connection 4 x 130 (mainly used in France)
  • Contact dimension (A) 1000mm
  • contact dimension (C) 1420mm
  • Trestle height (H) 100mm
  • Steering knuckle (L) 145mm
  • Axle tube 60mm square
  • Bolt hole spacing 160mm
  • Wheel bearing: Compact bearing
  • Axle beam: Hot-dip galvanised steel
  • Approved. Speed up to 140 km/h (Germany 100 km/h)
  • incl. wheel bolts (M14 x 1.5mm)

This axle is ideal for trailer construction or as a replacement for various axle manufacturers of your car trailer.

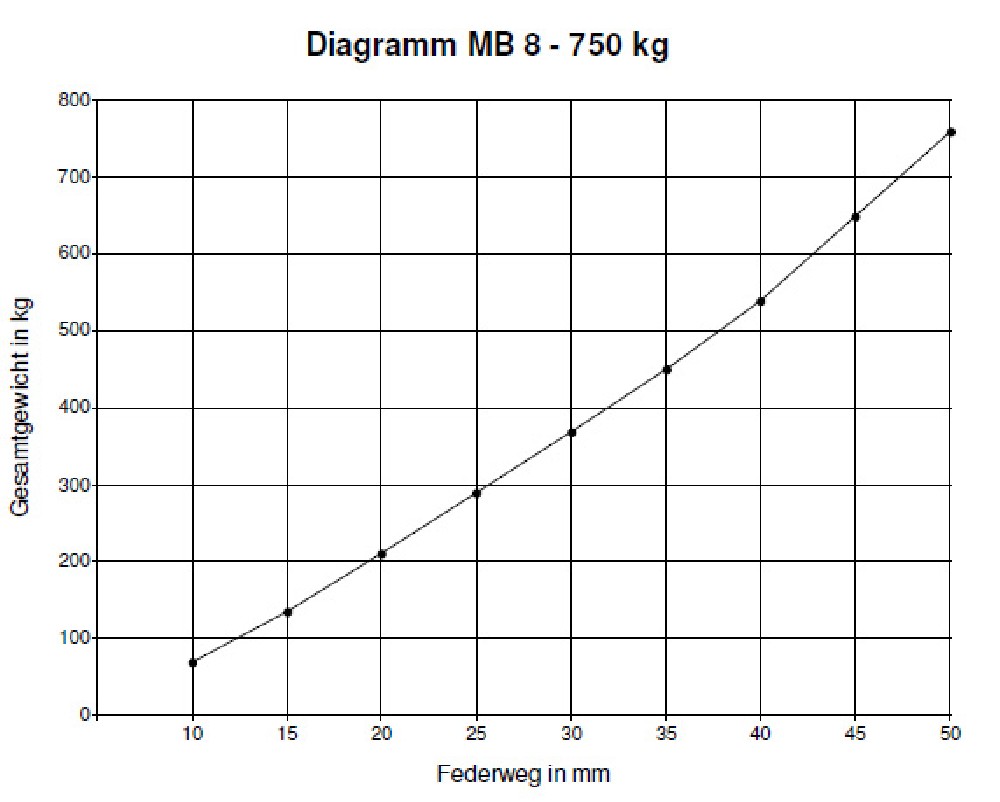

 federdiagramm_mb8_750kg.pdf (0.09 MB)
