Offer valid until 31.05.26 While stocks last

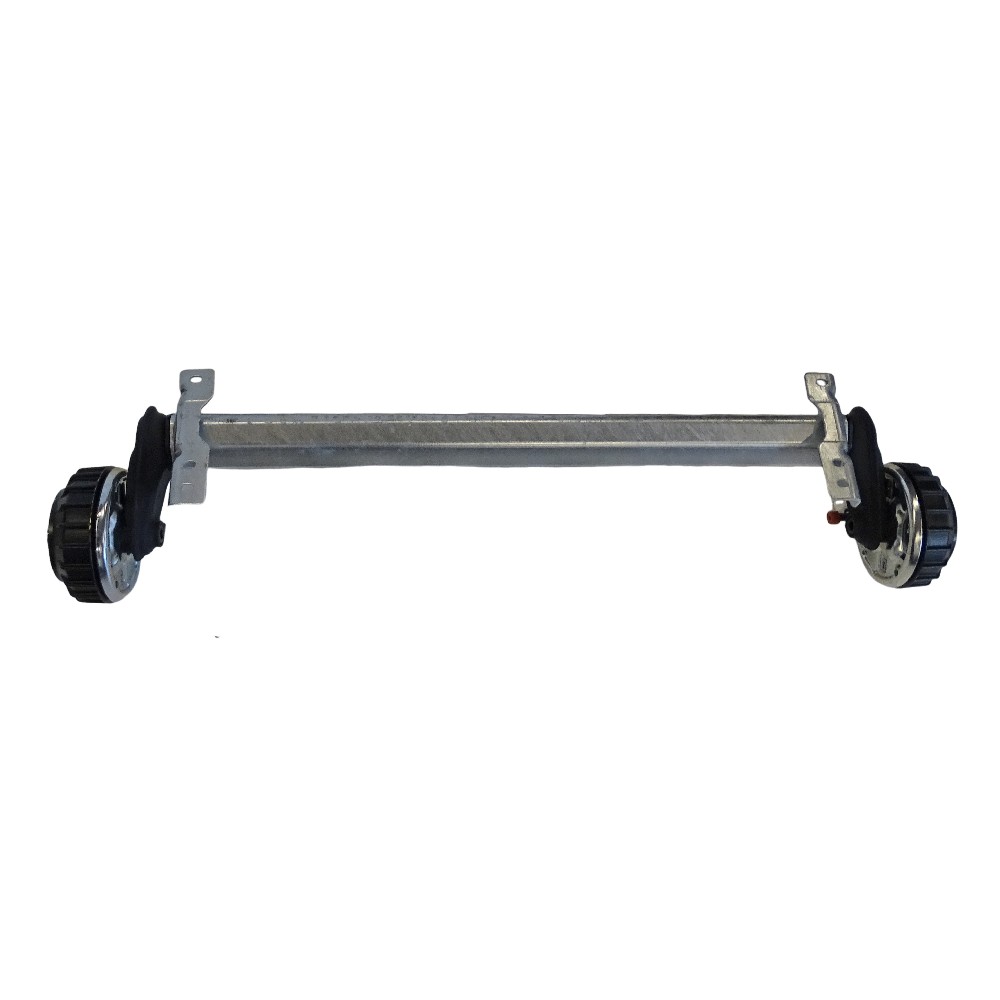

Alko trailer axle Compact – side view showing silver finish, 1500 kg capacity, and 5x112 bolt pattern.

Alko trailer axle Compact braked 1500 kg B1600-3, support = 1700 mm, 5x112, 25°

Name: Alko trailer axle Compact braked 1500 kg B1600-3, support = 1700 mm, 5x112, 25°
Brand: ALKO
SKU: 990017540
Price: 646.76 EUR
Availability: InStock

646,76 € -15 % RRP 760,90 €

Cheapest price in the last 30 days: 760,90 €

Piece

Alko trailer axle Compact braked 1500 kg B1600-3, support = 1700 mm, 5x112, 25°

646,76 € -15 % RRP 760,90 €

incl. 19 % VAT excl. shipping costs

Cheapest price in the last 30 days: 760,90 €

Shipping price from: 69,90 €

weight 58,66 KG

delivery time 5-7 giorni lavorativi

Product Prodotto in magazzino

Alko trailer axle Compact braked 1500 kg B1600-3, support = 1700 mm, 5x112, 25°

Product.Nr.: 990017540

There are no reviews for this product

Alko trailer axle with brakes Support dimension A: 1700 mm Support dimension C: 2150 mm Axle load, single axle: 1500 kg Axle load, tandem: 3000 kg Model: Compact Axle type: B1600-3 Wheel brake: 2051 Wheel connection: 5 x 112 mm Swing lever position: 25° Axle profile: 97 mm Suspension: Hexagonal rubber suspension Wheel bearing: Compact bearing Swing lever length: 161.5 mm Centre hole rim: min. 57 mm Single-axle abutment for brake cables welded on Axle body hot-dip galvanised Comparison number: 247563 Includes fully assembled wheel brake and brake drums Scope of delivery: 1 x axle, 2 x brake cables HL...

more details Question ? Have you seen it cheaper?

🤍 Add to wish list

Alko trailer axle Compact braked 1500 kg B1600-3, support = 1700 mm, 5x112, 25°

Alko trailer axle with brakes
Support dimension A: 1700 mm
Support dimension C: 2150 mm
Axle load, single axle: 1500 kg
Axle load, tandem: 3000 kg
Model: Compact
Axle type: B1600-3
Wheel brake: 2051
Wheel connection: 5 x 112 mm
Swing lever position: 25°
Axle profile: 97 mm
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Swing lever length: 161.5 mm
Centre hole rim: min. 57 mm
Single-axle abutment for brake cables welded on
Axle body hot-dip galvanised
Comparison number: 247563
Includes fully assembled wheel brake and brake drums

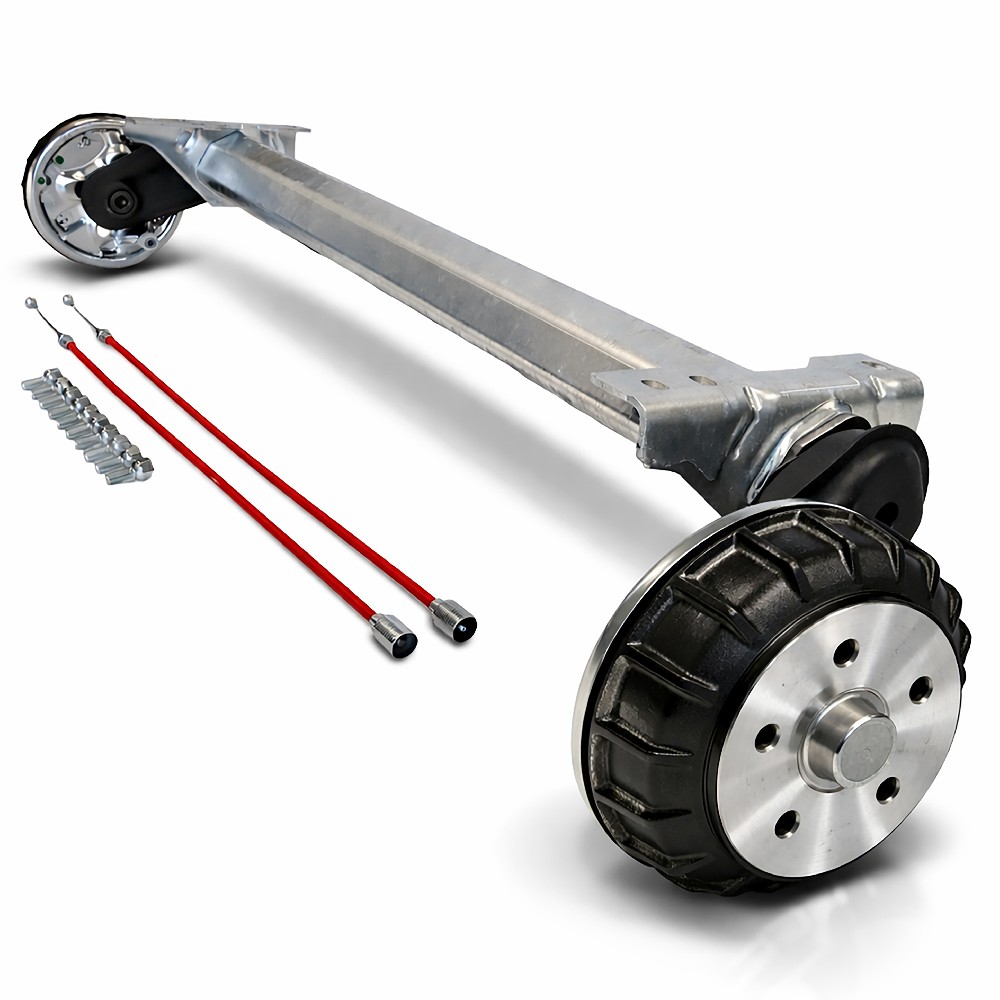

Scope of delivery: 1 x axle, 2 x brake cables HL=1130 mm, 10 x ball collar wheel bolts

If you require a tandem abutment for the brake cables, you will find it under item number 990015232 for retrofitting.

The advantage of the Compact axle over a Basic axle is its longer service life, thanks to features such as a galvanised brake shield and a replaceable axle stub.

The braked Alko trailer axle type B1600-3 is designed for use with single and tandem axle trailers. It offers an axle load of 1500 kg for single-axle vehicles and 3000 kg in tandem operation. The axle belongs to the Compact model series and has a hexagonal rubber suspension, which ensures smooth running and stability.

The support dimension (A) is 1700 mm and the contact dimension (C) is 2150 mm. The axle body has a profile of 97 mm and is hot-dip galvanised, which provides reliable corrosion protection.

The swing lever position is 25° and the swing lever length is 161.5 mm.

The proven Alko wheel brake type 2051 is used for the brake system. The wheel connection corresponds to the 5 x 112 mm bolt circle and the centre hole of the rim must be at least 57 mm.

The axle is equipped with low-maintenance compact bearings. A single-axle abutment for brake cables is already welded on. The brake drums and wheel brakes are already completely pre-assembled, which makes installation easier.
