Alko trailer axle Compact braked 1500 kg B1600-3, support = 1300 mm, 5x112, 5°
Alko trailer axle Compact braked 1500 kg B1600-3, support = 1300 mm, 5x112, 5°
646,76 € -15 % RRP 760,90 €
Cheapest price in the last 30 days: 760,90 €
Shipping price from: 69,90 €
Product ei varastossa
Alko trailer axle Compact braked 1500 kg B1600-3, support = 1300 mm, 5x112, 5°
Product.Nr.: 990017578
- Alko trailer axle with brakes
- Support dimension A: 1300 mm
- Support dimension C: 1750 mm
- Axle load, single axle: 1500 kg
- Axle load, tandem: 3000 kg
- Model: Compact
- Axle type: B1600-3
- Wheel brake: 2051
- Wheel connection: 5 x 112 mm
- Rocker arm position: 5° (often used with 10-inch tyres, for example)
- Axle profile: 97 mm
- Suspension: Hexagonal rubber suspension
- Wheel bearing: Compact bearing
- Swing lever length: 161.5 mm
- Centre hole rim: min. 57 mm
- Single-axle abutment for brake cables welded on
- Axle body hot-dip galvanised
- Comparison number:
- Includes fully assembled wheel brake and brake drums
- Scope of delivery: 1 x axle, 2 x brake cables HL=890 mm, 10 x ball collar wheel bolts
If you require a tandem abutment for the brake cables, you can find it under item number 990015232 for retrofitting.
The advantage of the Compact axle over a Basic axle is its longer service life, thanks to features such as a galvanised brake shield and a replaceable axle stub.
The braked Alko trailer axle type B1600-3 is designed for use with single and tandem axle trailers.
It offers an axle load of 1500 kg for single-axle vehicles and 3000 kg in tandem operation.
The axle belongs to the Compact model series and has a hexagonal rubber suspension,
which ensures smooth running and stability.
The support dimension (A) is 1300 mm, the contact dimension (C) is 1750 mm.
The axle body has a profile of 97 mm and is hot-dip galvanised, which provides reliable corrosion protection.
The swing lever position is 5° and the swing lever length is 161.5 mm.

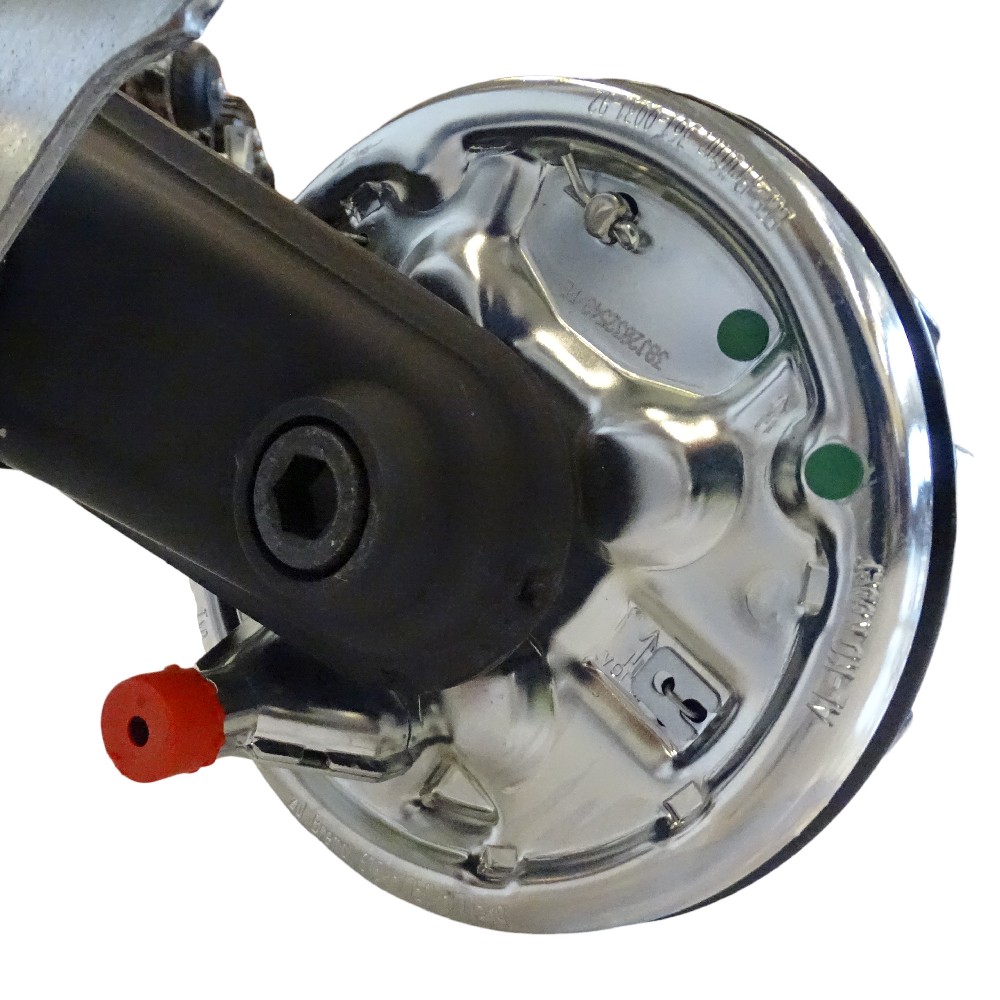

The proven Alko wheel brake type 2051 is used for the brake system.

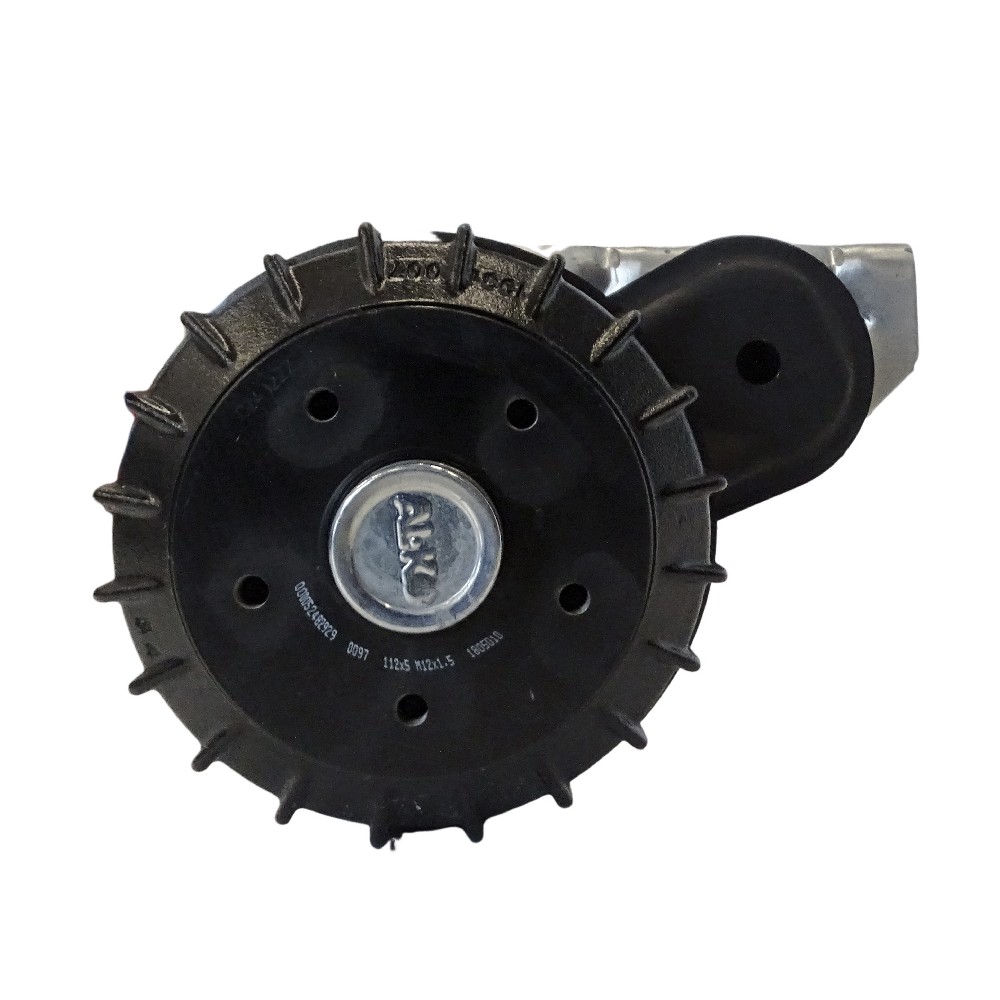

The wheel connection corresponds to the bolt circle 5 x 112 mm and the centre hole of the rim must be at least 57 mm.
The axle is equipped with low-maintenance compact bearings.
A single-axle abutment for brake cables is already welded on.
The brake drums and wheel brakes are already completely pre-assembled, which makes installation easier.
