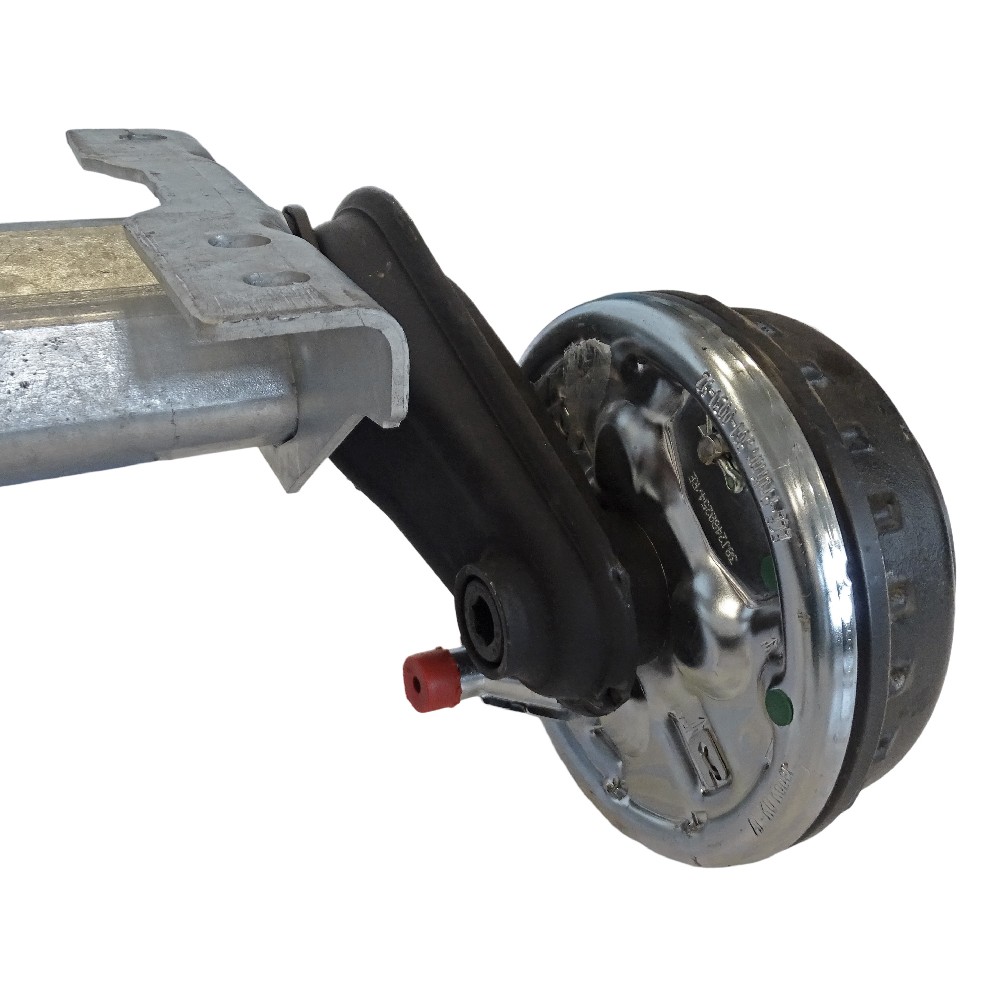

Alko trailer axle Compact braked 1350 kg B1200-6, support = 1100 mm, 5x112, 25°
Product.Nr.: 990017525
- Alko trailer axle with brakes
- Support dimension A: 1000 mm
- Support dimension C: 1450 mm
- Axle load, single axle: 1350 kg
- Axle load, tandem: 2700 kg
- Model: Compact
- Axle type: B1200-6
- Wheel brake: 2051
- Wheel connection: 5 x 112 mm
- Rocker arm position: 25°
- Axle profile: 97 mm
- Suspension: Hexagonal rubber suspension
- Wheel bearing: Compact bearing
- Rocker arm length: 161.5 mm
- Centre hole rim: min. 57 mm
- Single-axle abutment for brake cables welded on
- Axle body hot-dip galvanised
- Comparison number: 247547
- Includes fully assembled wheel brake and brake drums

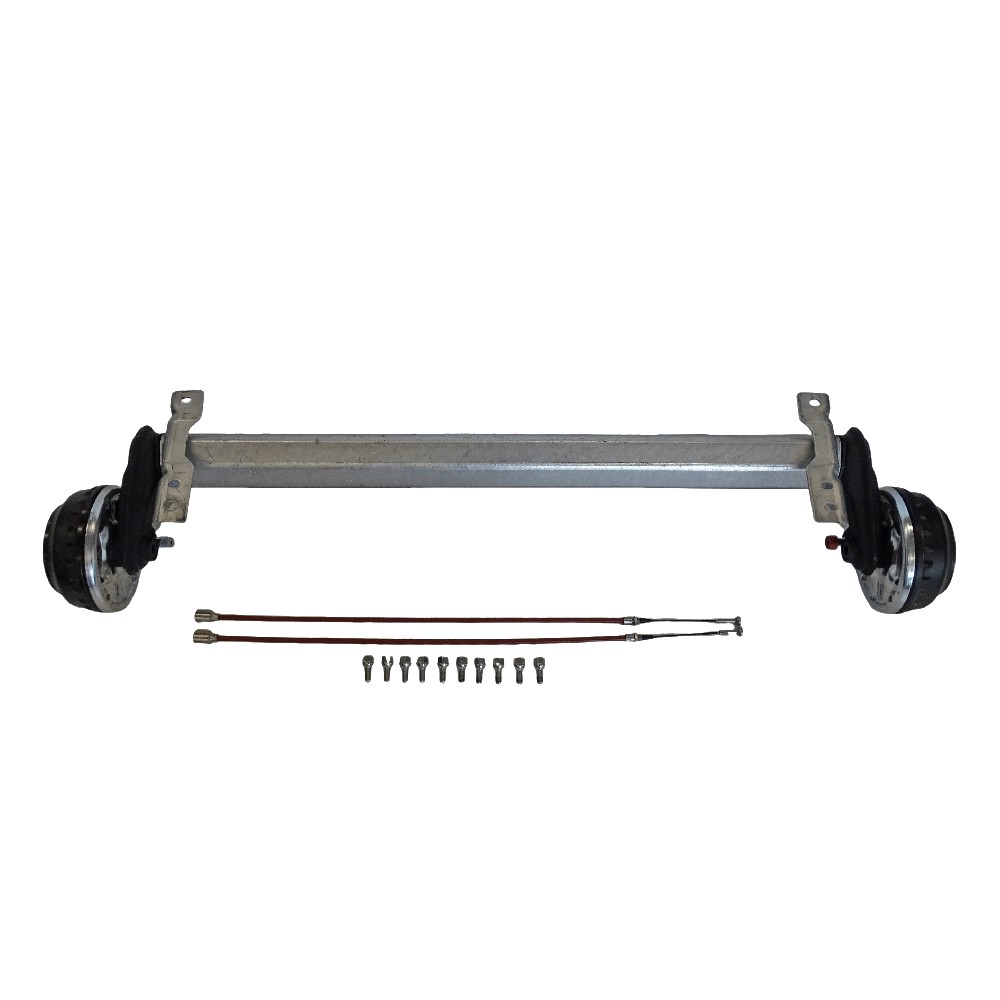

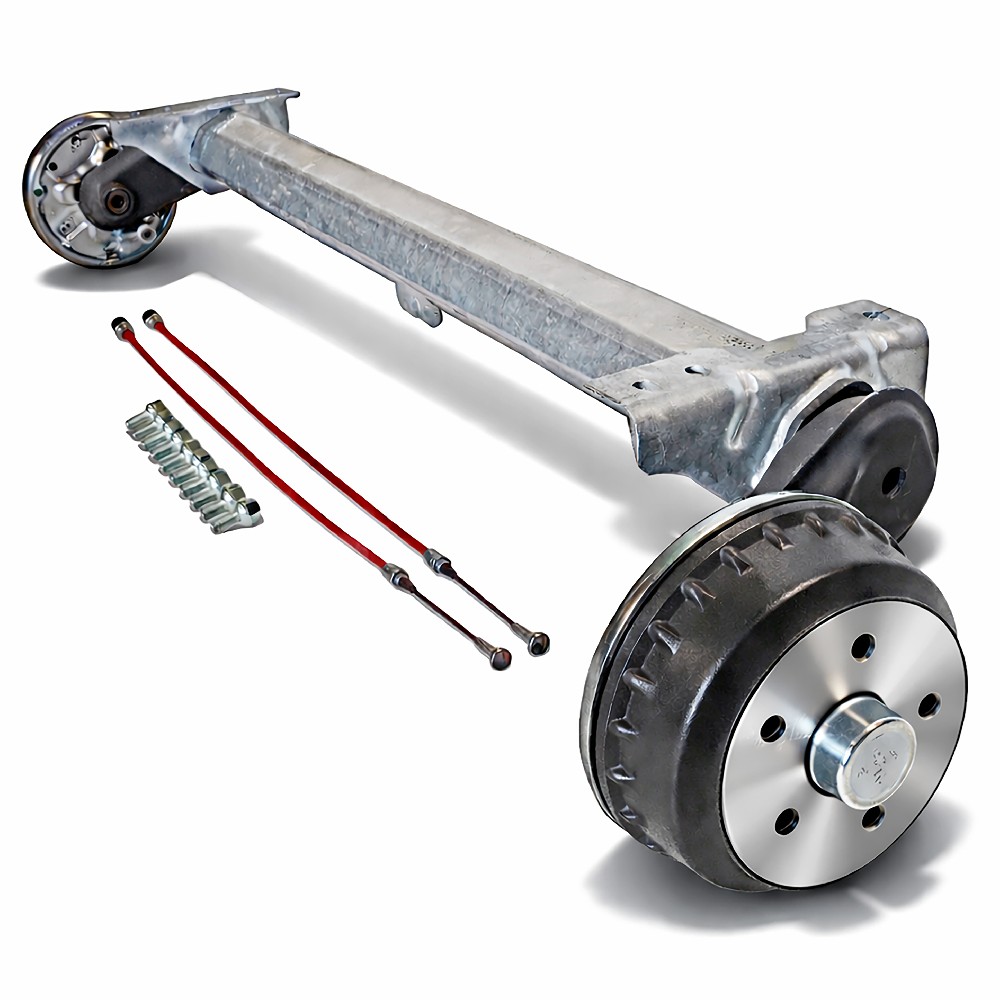

- Scope of delivery: 1 x axle, 2 x brake cables HL=770 mm, 10 x ball collar wheel bolts
If you require a tandem abutment for the brake cables, you will find it under item number 990015232 for retrofitting.
The advantage of the Compact axle over a Basic axle is its longer service life, thanks to features such as a galvanised brake shield and a replaceable axle stub.

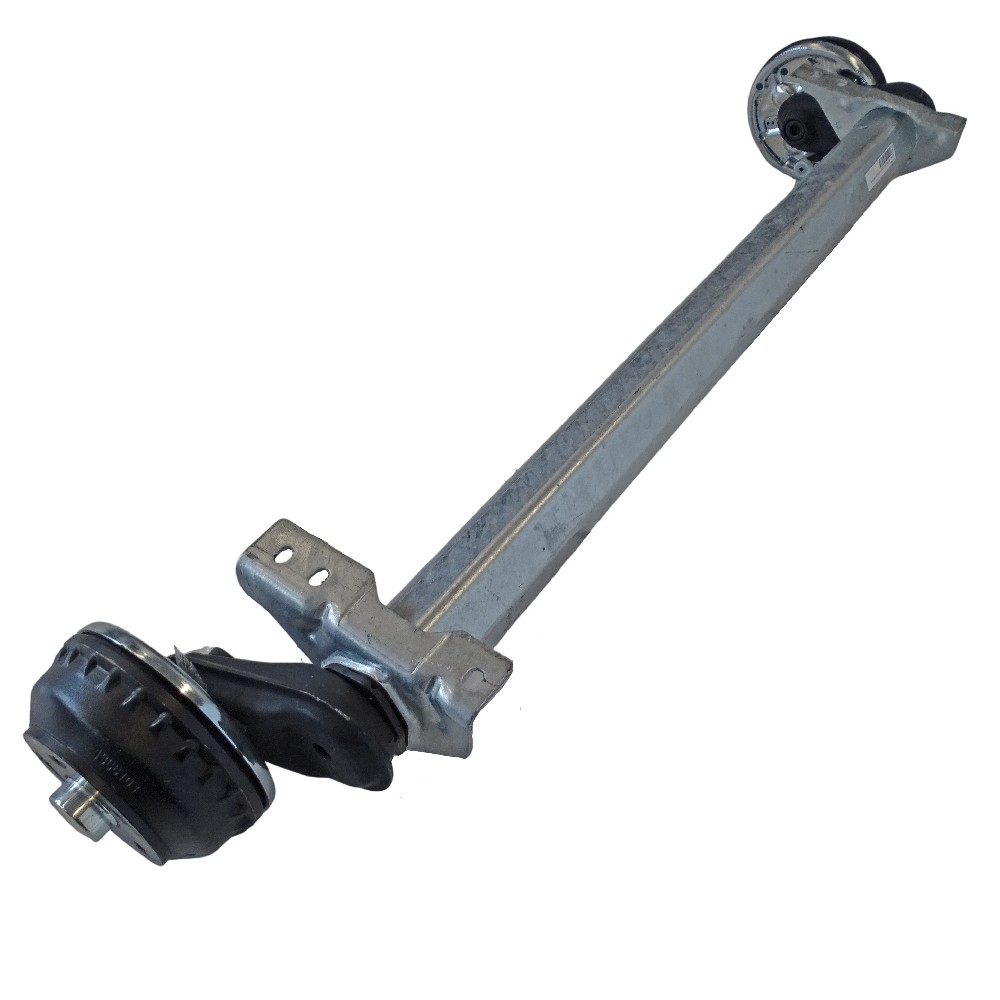

The braked Alko trailer axle type B1200-6 is designed for use with single and tandem axle trailers.
It offers an axle load of 1350 kg for single-axle vehicles and 2700 kg in tandem operation.

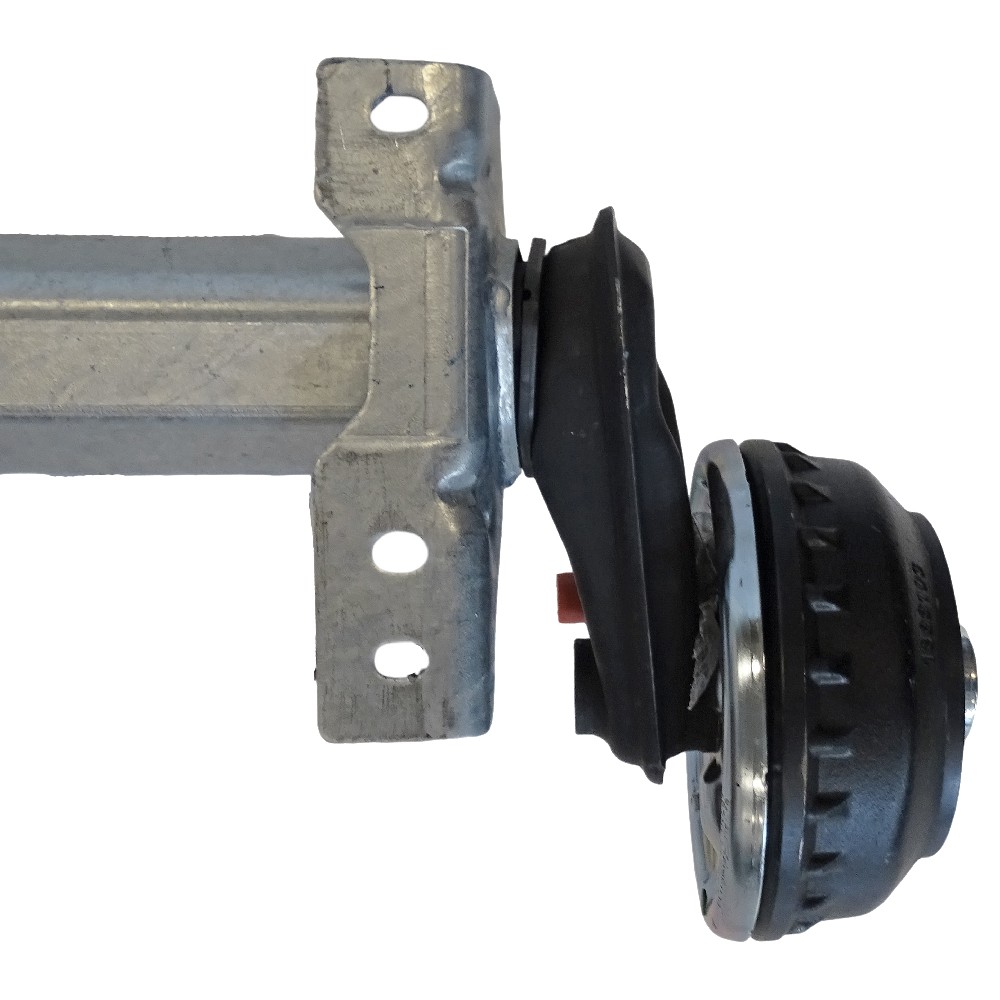

The axle belongs to the Compact model series and has a hexagonal rubber suspension,
which ensures smooth running and stability.

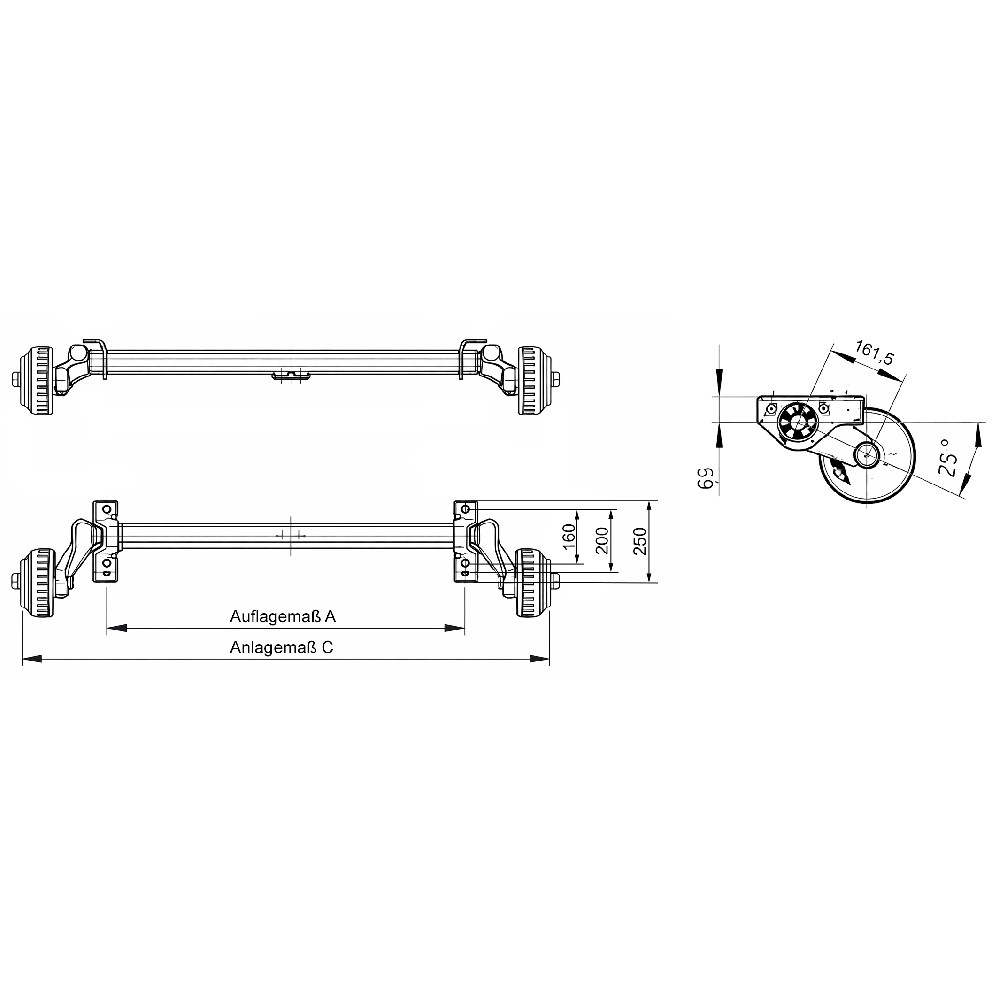

The support dimension (A) is 1000 mm, the contact dimension (C) is 1450 mm.

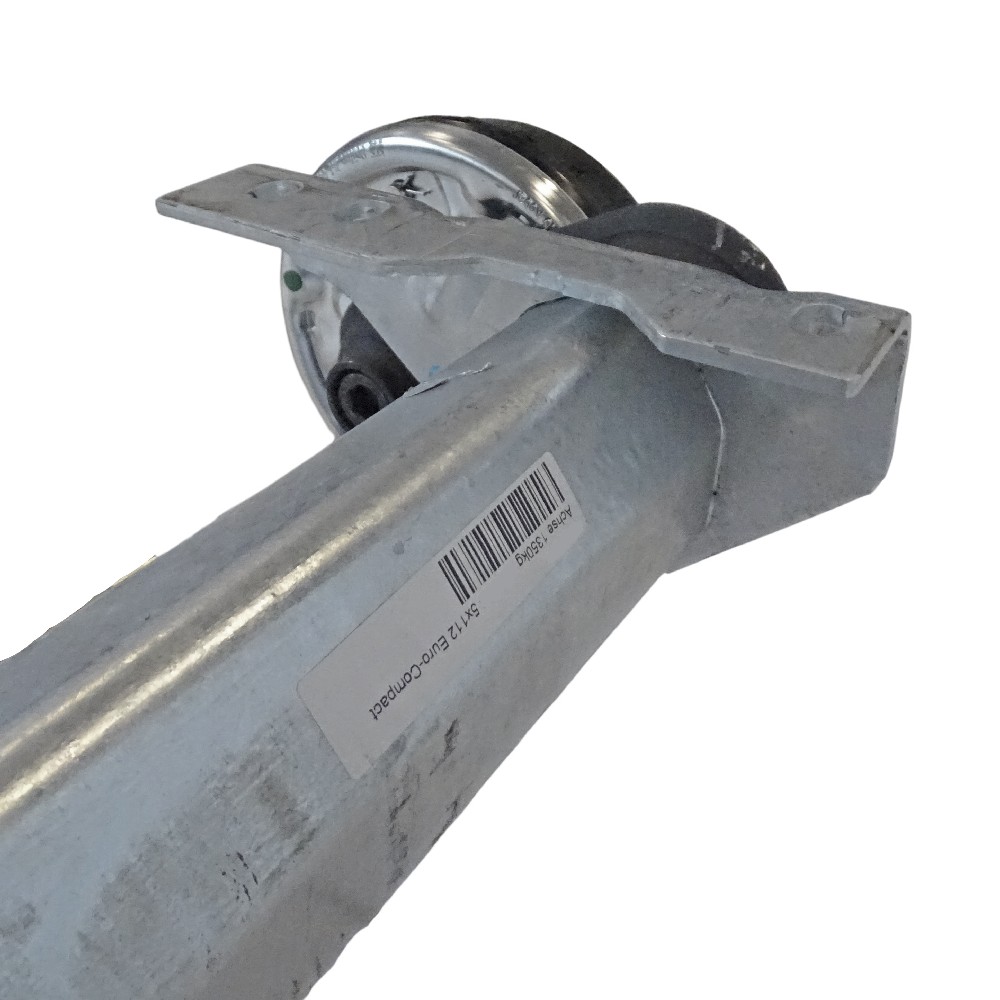

The axle body has a profile of 97 mm and is hot-dip galvanised, which provides reliable corrosion protection.
The swing lever position is 25° and the swing lever length is 161.5 mm.

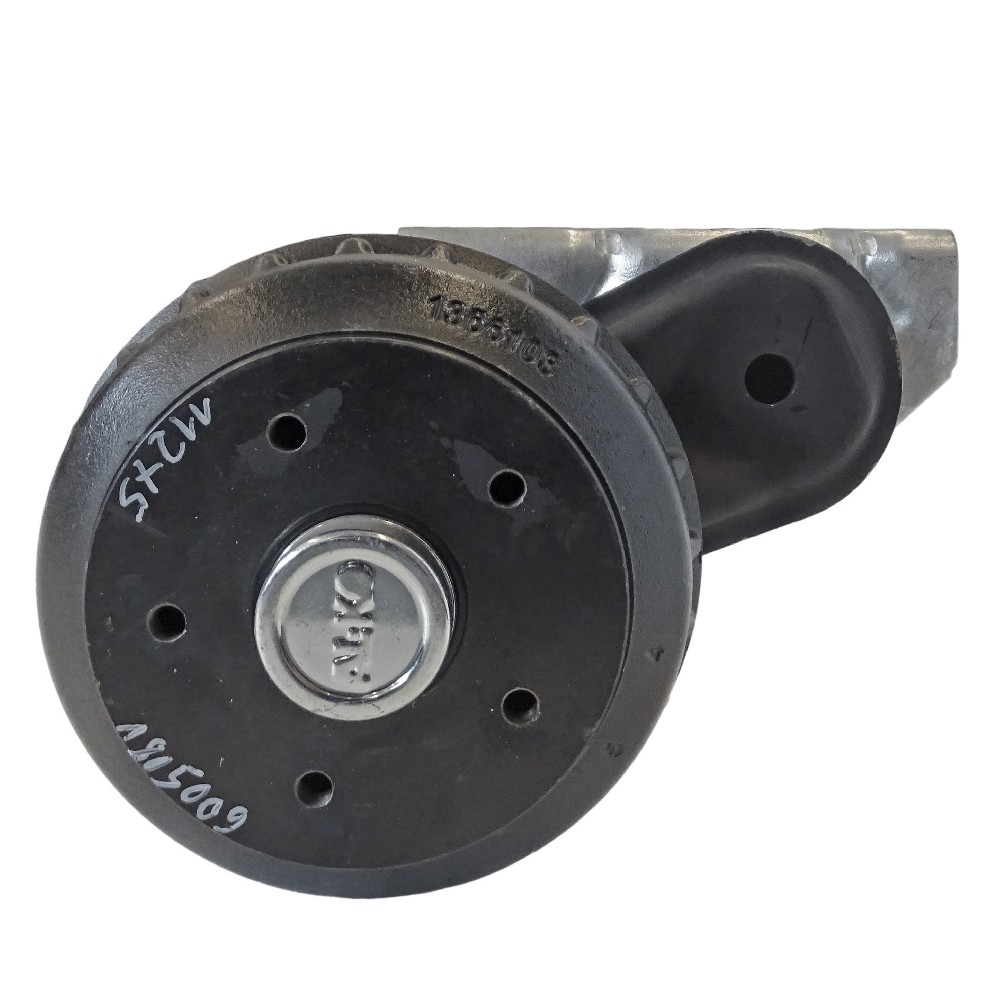

The proven Alko wheel brake type 2051 is used for the brake system.
The wheel connection corresponds to the 5 x 112 mm bolt circle and the centre hole of the rim must be at least 57 mm.
The axle is equipped with low-maintenance compact bearings.

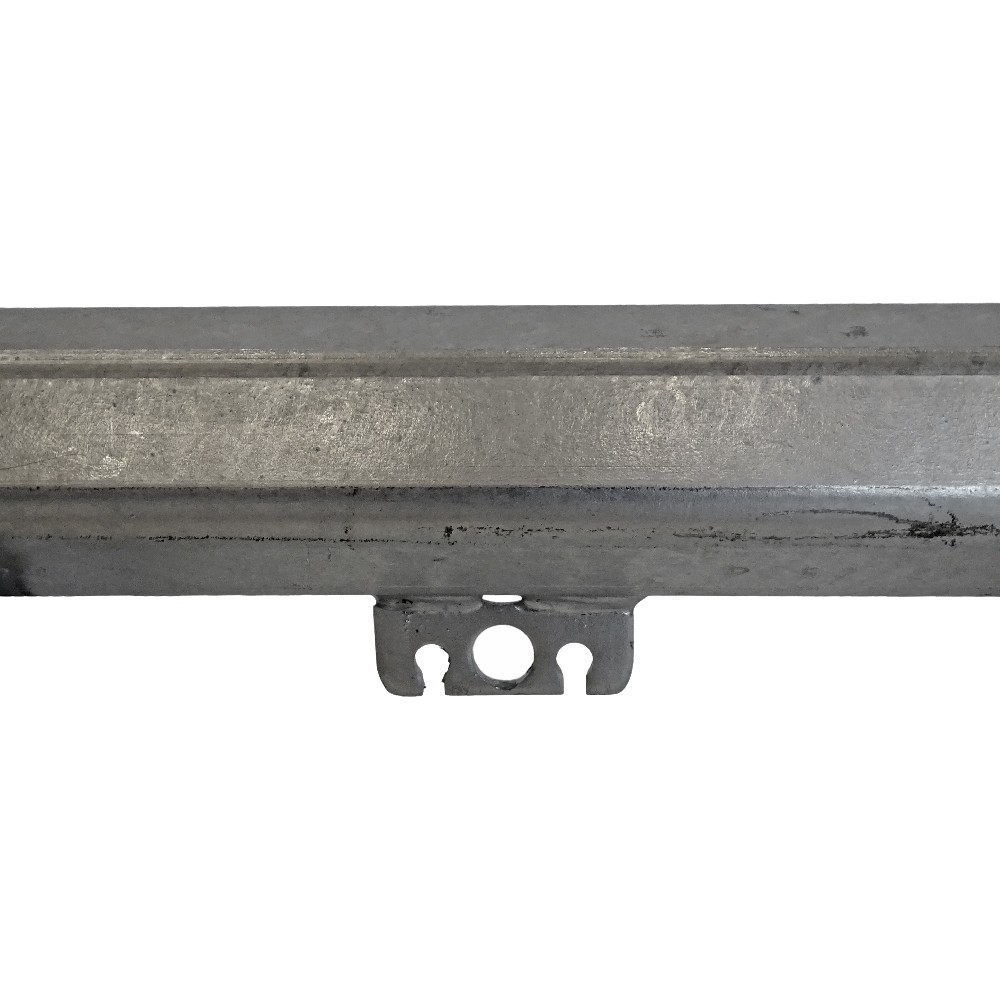

A single-axle abutment for brake cables is already welded on.
The brake drums and wheel brakes are already completely pre-assembled, which makes installation easier.
