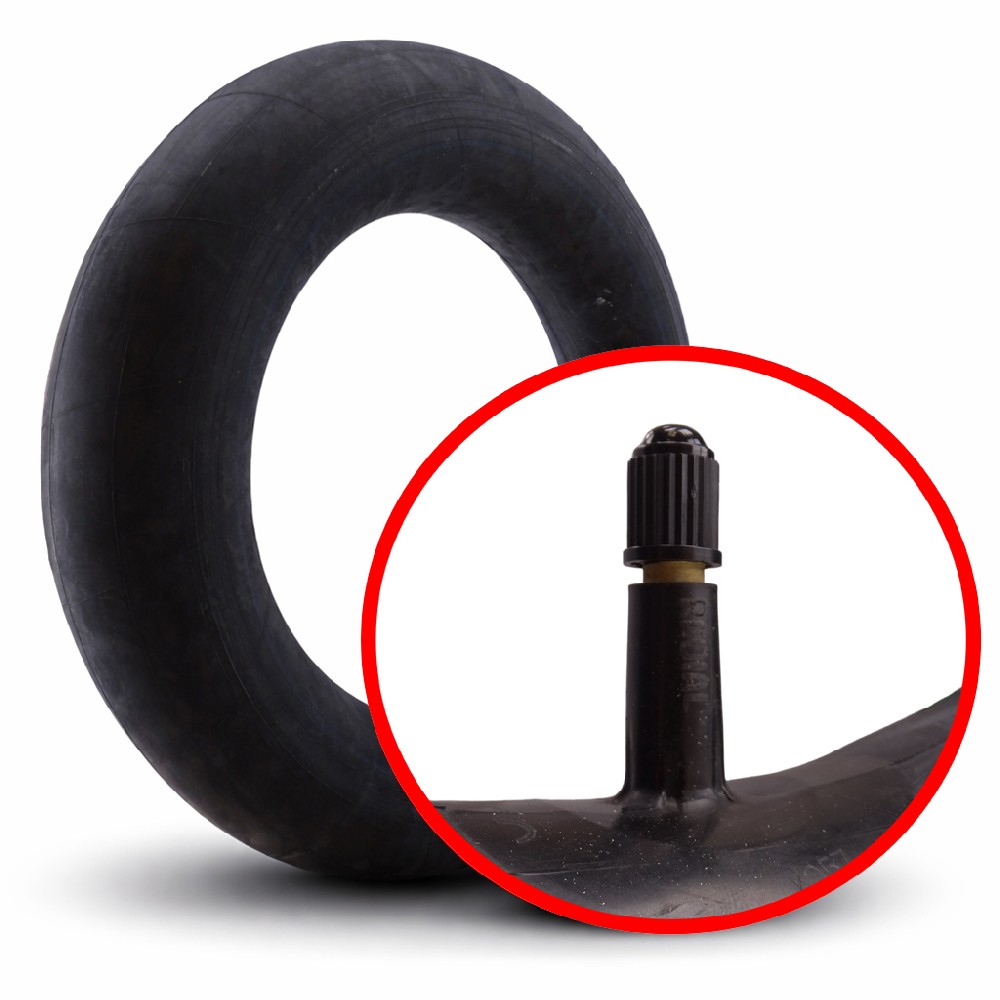

Tube 4.00/4.80-8 TR13
4,90 €
Tube 4.00/4.80-8 TR13
4,90 €
Shipping price from: 4,90 €
This item cannot be collected in person
Product Produkt lagernd
Tube 4.00/4.80-8 TR13
Product.Nr.: 990017316
Manufacturer: NaRubb
This 4.00/4.80-8 tube with TR13 valve is a reliable solution for various industrial, transport and garden applications. It is ideal for tyres in the specified dimension and is also suitable for size 400x100. Thanks to its robust design, the tube offers good pressure stability and airtightness, for example for wheelbarrows, transport trolleys, small machines or similar equipment.
Technical data
- Product name: Tube 4.00/4.80-8 TR13
- Brand: NaRubb
- Tube size: 4.00/4.80-8
- Inch size: 8 inch
- also suitable for: 400x100
- Valve type: TR13
Valve type TR13 – properties
The TR13 valve is a widely used standard valve for tube-type tyres in the low and medium pressure range, as commonly used on industrial and garden vehicles.
Typical characteristics of the TR13 valve:
- Valve design: Straight rubber valve with metal valve core
- Valve hole (rim hole): approx. 11.3 mm (0.453 inch)
- Valve length above rim: approx. 32–38 mm (may vary slightly depending on manufacturer)
- Valve thread: Standard car valve thread (Schrader) for easy inflation
- Dust cap: Screw-on cap for protection against dirt and moisture
- Operating pressure range: Suitable for typical operating pressures of wheelbarrow, equipment and small vehicle tyres
Benefits and applications
The 4.00/4.80-8 TR13 tube stands out for its versatile use and easy handling:
- Versatile fit: Suitable for tyres in size 4.00/4.80-8 as well as 400x100, making it usable in many common applications.
- Easy installation: The TR13 valve fits the usual valve hole of many rims, which makes tube replacement straightforward.
- Reliable airtightness: The sturdy tube construction ensures good air retention and reduces the risk of pressure loss.
- Wide range of applications: Ideal for wheelbarrows, hand trucks, garden and municipal equipment, light industrial trailers and similar uses.
Thanks to the combination of precise dimensions and the proven TR13 valve, this tube is a practical and economical solution for many tyre applications in the garden and industrial sector.
Frequently asked questions about this product
The valve designation describes two things: the stem diameter — which must fit the hole in the rim — and the shape, i.e. straight or angled.
Only the bore matters for a proper fit: a valve fits perfectly only if its stem matches the bore in the rim. Whether it is straight or angled makes no difference — that is a question of accessibility.
An overview of the types:
| Type | Shape | Bore | typically used for |
|---|---|---|---|
| TR13 | straight, rubber | 11.5 mm | Car and trailer wheels |
| TR4 / TR6 | straight, short | 11.5 mm | Small wheels, garden tools |
| TR15 | straight, rubber | 16 mm | Agricultural machinery, tractor rims |
| TR87 | 90° angled | 11.5 mm | Small wheels, solid rims |
| JS8 (DIN 7777) | 90° angled, same as TR87 | 11.5 mm | small wheels, solid rims |
| JS2 | Approx. 70° angled | 11.5 mm | Industrial and small wheels |
| V3-02-7 (TR75) | 100° single-bend metal angle valve with screw-on base | 12.2 mm | Commercial vehicles, lorries, trailers, agricultural and industrial machinery such as forklift trucks |
| V3-06-3 | Triple-bend brass truck screw-on valve (90°/139°/139°) | 9.7 mm | 20-inch truck and trailer tubes (6.00-20 to 9.00-20), also 22.5-inch tube-type tyres |
| TR218A | Straight metal air-water valve, two-piece | 15.9–16 mm | High-volume tubular tyres for agricultural and industrial use, tractors |
V3-02-7 in detail: Also known as ETRTO V3.02.7 and US designation TR75. Dimensions: Horizontal leg length 22.5 mm, vertical leg length 71.5 mm, total height approx. 91 mm. The valve base is screwed on, not pressed in — this makes it significantly more robust than a rubber valve.
V3-06-3 in detail: Also known as ETRTO V3.06.3. Triple-bend brass screw-on truck valve: the first bend is 90°, the other two 139° each — this guides the filling end past the rim flange and keeps it accessible even with twin tyres and deep rim wells. Leg dimensions approx. 20.5 / 46 / 20.5 / 47.5 mm (approx. 135 mm developed length), rim hole 9.7 mm. The valve is fastened to the tube with a sealing washer and nut instead of being vulcanised in. In our range on the 20-inch tubes 6.00/6.50-20, 7.00/7.50-20, 8.25-20 and 9.00-20.
TR218A in detail — the valve for water ballast: What makes this type special is the option for liquid ballasting: the hose is partially filled with water to increase the vehicle’s weight and thus improve traction — a common practice with tractors.
- Design: straight, robust metal valve, usually in two parts. Unscrewing the inner CH3 valve insert creates an extra-large opening — allowing for quick filling with air or liquid.
- Rim bore: 15.9 to 16 mm (0.625 inches).
- Length: typically around 38 to 48 mm total height above the rim.
- Mounting: a rubber base approximately 80 mm in diameter for vulcanising onto the inner tube, plus a lock nut for secure attachment to the rim.
Reducing sleeves: A TR15 valve does not fit into an 11.5 mm bore. Conversely, there are sleeves that allow a TR13 valve to fit into a 16 mm bore.
Whether straight or angled is not a question of fit, but of accessibility: with closed rims or small wheels, it is often impossible to reach the valve with a pump using a straight valve — in which case an angled one is used.
Not sure which valve is fitted? A photo of the old valve is all we need to identify it. Choose from: inner tubes, bead tapes and valves.
