Tube 3.50/4.00/4.80-8, 400x100 valve TR13
6,90 €
Tube 3.50/4.00/4.80-8, 400x100 valve TR13
6,90 €
Shipping price from: 6,90 €
Product Produkt lagernd
Tube 3.50/4.00/4.80-8, 400x100 valve TR13
Product.Nr.: 990017300
Manufacturer: Novio

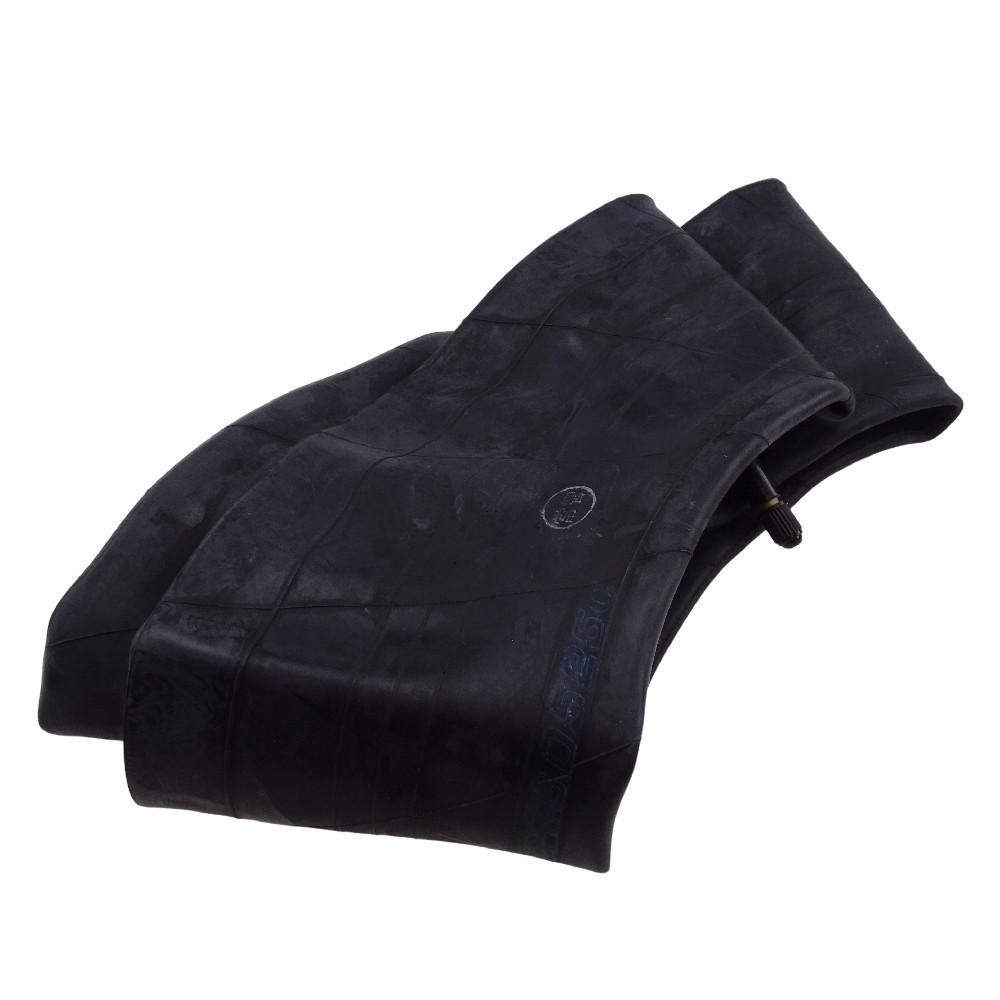

This tube in size 3.50/4.00/4.80-8, 400x100 is a robust and reliable solution for various industrial and garden applications. It is ideal for tyres on equipment such as sack trucks, hand carts, small trailers, garden machinery or transport trolleys and ensures secure air retention and stable running performance. Thanks to its standardised dimensions, the tube is highly versatile and can be easily fitted into suitable tyres with an 8-inch diameter.
Technical data
- Tube size: 3.50/4.00/4.80-8, 400x100
- Inch size: 8 inch
- also suitable for: 400x100
- Valve type: TR13
Valve-specific data (TR13):

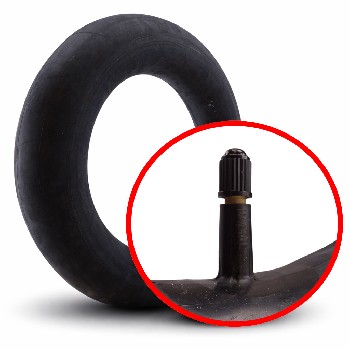

- Valve type: rubber valve TR13 (straight tube valve)
- Typical valve hole diameter in rim: approx. 11.3 mm
- Valve length: approx. 32–38 mm above rim surface
- Design: straight version, positioned centrally or slightly offset in the tube
- Suitable for: steel and plastic rims with standard valve hole
- Sealing: rubber base with integrated seal in the valve seat
Benefits and applications
The tube 3.50/4.00/4.80-8, 400x100 offers high fitting accuracy for various tyre sizes, especially 400x100, enabling flexible use in many transport and garden vehicles. The TR13 valve is a widely used standard that allows easy installation and convenient inflation with conventional pumps and compressors.
Thanks to its robust design, the tube is suitable for regular use in both private and commercial environments. Typical applications include sack trucks, hand carts, wheelbarrows, small trailers, garden and yard equipment as well as other wheels with 8-inch rims where a reliable inner tube is required.
Frequently asked questions about this product
The valve designation describes two things: the stem diameter — which must fit the hole in the rim — and the shape, i.e. straight or angled.
Only the bore matters for a proper fit: a valve fits perfectly only if its stem matches the bore in the rim. Whether it is straight or angled makes no difference — that is a question of accessibility.
An overview of the types:
| Type | Shape | Bore | typically used for |
|---|---|---|---|
| TR13 | straight, rubber | 11.5 mm | Car and trailer wheels |
| TR4 / TR6 | straight, short | 11.5 mm | Small wheels, garden tools |
| TR15 | straight, rubber | 16 mm | Agricultural machinery, tractor rims |
| TR87 | 90° angled | 11.5 mm | Small wheels, solid rims |
| JS8 (DIN 7777) | 90° angled, same as TR87 | 11.5 mm | small wheels, solid rims |
| JS2 | Approx. 70° angled | 11.5 mm | Industrial and small wheels |
| V3-02-7 (TR75) | 100° single-bend metal angle valve with screw-on base | 12.2 mm | Commercial vehicles, lorries, trailers, agricultural and industrial machinery such as forklift trucks |
| V3-06-3 | Triple-bend brass truck screw-on valve (90°/139°/139°) | 9.7 mm | 20-inch truck and trailer tubes (6.00-20 to 9.00-20), also 22.5-inch tube-type tyres |
| TR218A | Straight metal air-water valve, two-piece | 15.9–16 mm | High-volume tubular tyres for agricultural and industrial use, tractors |
V3-02-7 in detail: Also known as ETRTO V3.02.7 and US designation TR75. Dimensions: Horizontal leg length 22.5 mm, vertical leg length 71.5 mm, total height approx. 91 mm. The valve base is screwed on, not pressed in — this makes it significantly more robust than a rubber valve.
V3-06-3 in detail: Also known as ETRTO V3.06.3. Triple-bend brass screw-on truck valve: the first bend is 90°, the other two 139° each — this guides the filling end past the rim flange and keeps it accessible even with twin tyres and deep rim wells. Leg dimensions approx. 20.5 / 46 / 20.5 / 47.5 mm (approx. 135 mm developed length), rim hole 9.7 mm. The valve is fastened to the tube with a sealing washer and nut instead of being vulcanised in. In our range on the 20-inch tubes 6.00/6.50-20, 7.00/7.50-20, 8.25-20 and 9.00-20.
TR218A in detail — the valve for water ballast: What makes this type special is the option for liquid ballasting: the hose is partially filled with water to increase the vehicle’s weight and thus improve traction — a common practice with tractors.
- Design: straight, robust metal valve, usually in two parts. Unscrewing the inner CH3 valve insert creates an extra-large opening — allowing for quick filling with air or liquid.
- Rim bore: 15.9 to 16 mm (0.625 inches).
- Length: typically around 38 to 48 mm total height above the rim.
- Mounting: a rubber base approximately 80 mm in diameter for vulcanising onto the inner tube, plus a lock nut for secure attachment to the rim.
Reducing sleeves: A TR15 valve does not fit into an 11.5 mm bore. Conversely, there are sleeves that allow a TR13 valve to fit into a 16 mm bore.
Whether straight or angled is not a question of fit, but of accessibility: with closed rims or small wheels, it is often impossible to reach the valve with a pump using a straight valve — in which case an angled one is used.
Not sure which valve is fitted? A photo of the old valve is all we need to identify it. Choose from: inner tubes, bead tapes and valves.
