Tube 29x12.00/12.50-15 Valve TR13
19,90 €
Tube 29x12.00/12.50-15 Valve TR13
19,90 €
Shipping price from: 6,90 €
This item cannot be collected in person
Product Produkt lagernd

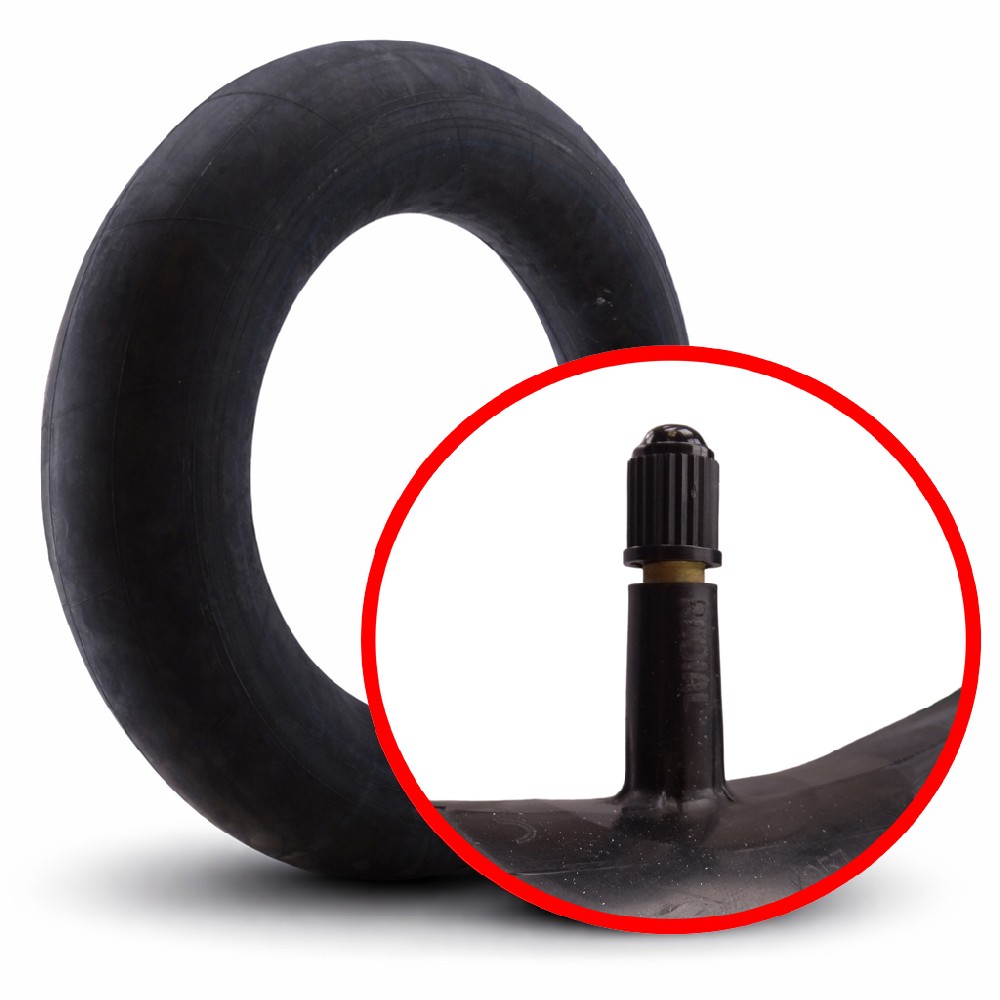

Tube 29x12.00/12.50-15 Valve TR13
Product.Nr.: 990017283
Manufacturer: Novio
This tube 29x12.00/12.50-15 with TR13 valve is designed for use in tyres with a 15 inch rim diameter and is ideal for various industrial, yard and garden applications. It ensures reliable air tightness, a stable fit in the tyre and thus supports safe and long-lasting use of the tyre – even under changing loads and operating conditions.
Technical data
- Tube size: 29x12.00/12.50-15
- Inch size: 15 inch
- Valve type: TR13
Details on valve type TR13
The TR13 valve is a widely used straight rubber valve for tube-type tyres in agricultural, industrial and garden applications. It is used in standard rim holes and is designed for medium operating pressures.
Typical technical characteristics of the TR13 valve:
- Design: Straight rubber valve with metal valve core
- Valve hole in the rim: approx. 15.7 mm (0.625")
- Valve length above rim strip: approx. 32–38 mm (depending on version)
- Valve body: Rubber stem with integrated metal core
- Valve cap: Plastic or metal cap to protect the valve core
- Application range: Tube-type tyres with standard rim hole, mainly for low to medium speeds
Benefits and application range
This tube is designed for tyres of size 29x12.00/12.50-15 and offers a precise-fit solution for machines and equipment in gardening and landscaping, agriculture as well as for various industrial and yard equipment. The matched combination of tube size and TR13 valve ensures safe mounting in suitable rims with 15 inch diameter.
The tube is particularly suitable for:
- Lawn tractors, ride-on mowers and garden machinery
- Small trailers and transport equipment
- Light industrial and yard equipment with pneumatic tyres
Benefits at a glance:
- Precisely matched tube size for 29x12.00/12.50-15 tyres
- Proven TR13 valve type for standard rim holes
- Easy installation and secure valve seating
- Suitable for a wide range of industrial and garden applications
Frequently asked questions about this product
The valve designation describes two things: the stem diameter — which must fit the hole in the rim — and the shape, i.e. straight or angled.
Only the bore matters for a proper fit: a valve fits perfectly only if its stem matches the bore in the rim. Whether it is straight or angled makes no difference — that is a question of accessibility.
An overview of the types:
| Type | Shape | Bore | typically used for |
|---|---|---|---|
| TR13 | straight, rubber | 11.5 mm | Car and trailer wheels |
| TR4 / TR6 | straight, short | 11.5 mm | Small wheels, garden tools |
| TR15 | straight, rubber | 16 mm | Agricultural machinery, tractor rims |
| TR87 | 90° angled | 11.5 mm | Small wheels, solid rims |
| JS8 (DIN 7777) | 90° angled, same as TR87 | 11.5 mm | small wheels, solid rims |
| JS2 | Approx. 70° angled | 11.5 mm | Industrial and small wheels |
| V3-02-7 (TR75) | 100° single-bend metal angle valve with screw-on base | 12.2 mm | Commercial vehicles, lorries, trailers, agricultural and industrial machinery such as forklift trucks |
| V3-06-3 | Triple-bend brass truck screw-on valve (90°/139°/139°) | 9.7 mm | 20-inch truck and trailer tubes (6.00-20 to 9.00-20), also 22.5-inch tube-type tyres |
| TR218A | Straight metal air-water valve, two-piece | 15.9–16 mm | High-volume tubular tyres for agricultural and industrial use, tractors |
V3-02-7 in detail: Also known as ETRTO V3.02.7 and US designation TR75. Dimensions: Horizontal leg length 22.5 mm, vertical leg length 71.5 mm, total height approx. 91 mm. The valve base is screwed on, not pressed in — this makes it significantly more robust than a rubber valve.
V3-06-3 in detail: Also known as ETRTO V3.06.3. Triple-bend brass screw-on truck valve: the first bend is 90°, the other two 139° each — this guides the filling end past the rim flange and keeps it accessible even with twin tyres and deep rim wells. Leg dimensions approx. 20.5 / 46 / 20.5 / 47.5 mm (approx. 135 mm developed length), rim hole 9.7 mm. The valve is fastened to the tube with a sealing washer and nut instead of being vulcanised in. In our range on the 20-inch tubes 6.00/6.50-20, 7.00/7.50-20, 8.25-20 and 9.00-20.
TR218A in detail — the valve for water ballast: What makes this type special is the option for liquid ballasting: the hose is partially filled with water to increase the vehicle’s weight and thus improve traction — a common practice with tractors.
- Design: straight, robust metal valve, usually in two parts. Unscrewing the inner CH3 valve insert creates an extra-large opening — allowing for quick filling with air or liquid.
- Rim bore: 15.9 to 16 mm (0.625 inches).
- Length: typically around 38 to 48 mm total height above the rim.
- Mounting: a rubber base approximately 80 mm in diameter for vulcanising onto the inner tube, plus a lock nut for secure attachment to the rim.
Reducing sleeves: A TR15 valve does not fit into an 11.5 mm bore. Conversely, there are sleeves that allow a TR13 valve to fit into a 16 mm bore.
Whether straight or angled is not a question of fit, but of accessibility: with closed rims or small wheels, it is often impossible to reach the valve with a pump using a straight valve — in which case an angled one is used.
Not sure which valve is fitted? A photo of the old valve is all we need to identify it. Choose from: inner tubes, bead tapes and valves.
