Tube 15-22.5 Valve VS3-21-1 22.5 inch
40,90 €
Tube 15-22.5 Valve VS3-21-1 22.5 inch
40,90 €
Shipping price from: 6,90 €
Product Product in stock

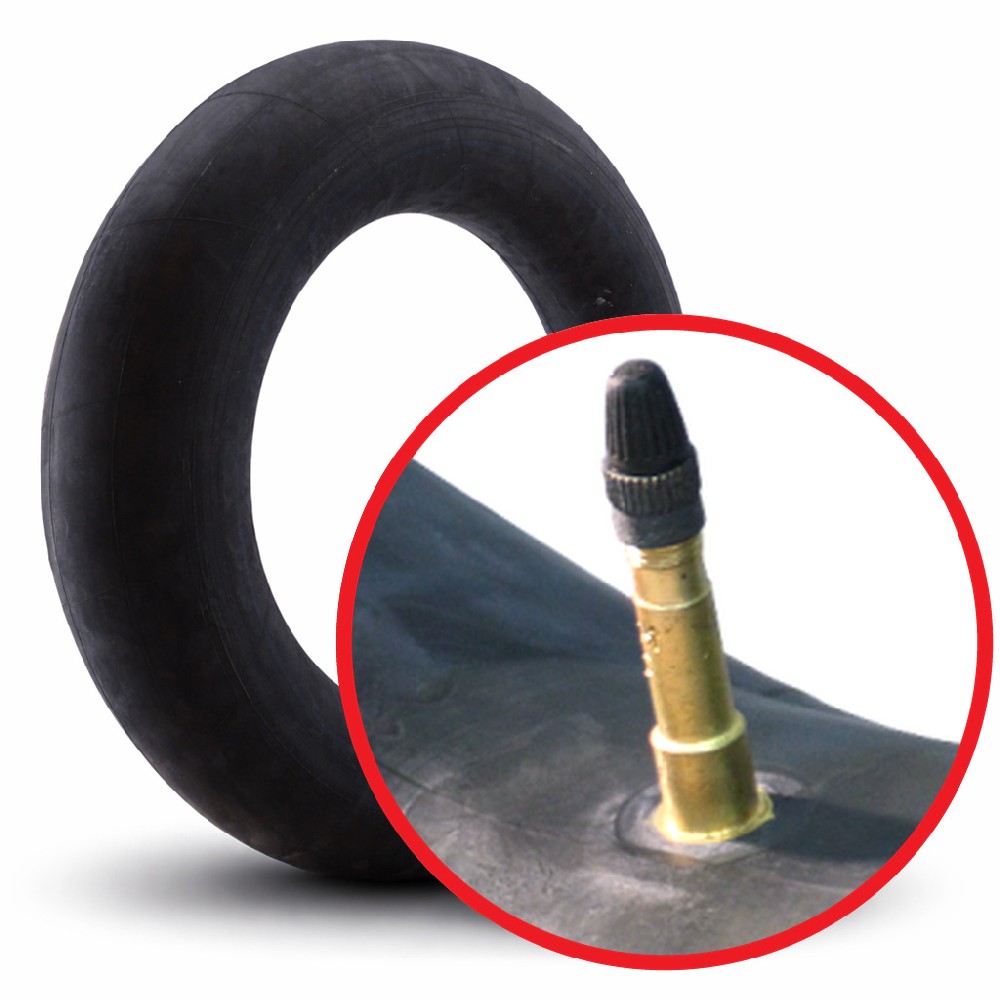

Tube 15-22.5 Valve VS3-21-1 22.5 inch
Product.Nr.: 990017117
Manufacturer: Novio
This robust 15-22.5 tube with valve type VS3-21-1 is designed for demanding industrial and garden applications. It is ideally suited for corresponding tyre and rim combinations in the 22.5 inch size and ensures reliable air tightness as well as stable performance in daily use. The matched tube size and special valve design guarantee safe installation and long-lasting operation.
Technical data
- Tube size: 15-22.5
- Inch size: 22.5 inch
- Valve type: VS3-21-1
Valve-specific data (VS3-21-1)
- Valve design: Special tube valve for large and industrial tyres
- Valve hole drilling: Designed for standardised large-valve holes in industrial and commercial vehicle rims
- Valve length: Extended version for easier access when inflating and checking air pressure
- Design: Angled metal valve with robust construction for high pressure resistance and mechanical durability
- Sealing system: Integrated valve core with rubber seal for reliable air tightness
Benefits and application range
The 15-22.5 tube with VS3-21-1 valve is specially designed for high loads and use on large-dimension rims with 22.5 inch size. The robust valve allows convenient inflation and deflation, even in hard-to-reach wheel positions.
Typical applications include:
- Industrial and commercial vehicles
- Machinery and equipment for gardening and landscaping
- Applications with high loads and frequent driving or shunting movements
Thanks to the coordinated combination of tube size, inch size and valve type, this product offers high operational reliability, good handling and a long service life in professional use.
Frequently asked questions about this product
The valve designation describes two things: the stem diameter — which must fit the hole in the rim — and the shape, i.e. straight or angled.
Only the bore matters for a proper fit: a valve fits perfectly only if its stem matches the bore in the rim. Whether it is straight or angled makes no difference — that is a question of accessibility.
An overview of the types:
| Type | Shape | Bore | typically used for |
|---|---|---|---|
| TR13 | straight, rubber | 11.5 mm | Car and trailer wheels |
| TR4 / TR6 | straight, short | 11.5 mm | Small wheels, garden tools |
| TR15 | straight, rubber | 16 mm | Agricultural machinery, tractor rims |
| TR87 | 90° angled | 11.5 mm | Small wheels, solid rims |
| JS8 (DIN 7777) | 90° angled, same as TR87 | 11.5 mm | small wheels, solid rims |
| JS2 | Approx. 70° angled | 11.5 mm | Industrial and small wheels |
| V3-02-7 (TR75) | 100° single-bend metal angle valve with screw-on base | 12.2 mm | Commercial vehicles, lorries, trailers, agricultural and industrial machinery such as forklift trucks |
| V3-06-3 | Triple-bend brass truck screw-on valve (90°/139°/139°) | 9.7 mm | 20-inch truck and trailer tubes (6.00-20 to 9.00-20), also 22.5-inch tube-type tyres |
| TR218A | Straight metal air-water valve, two-piece | 15.9–16 mm | High-volume tubular tyres for agricultural and industrial use, tractors |
V3-02-7 in detail: Also known as ETRTO V3.02.7 and US designation TR75. Dimensions: Horizontal leg length 22.5 mm, vertical leg length 71.5 mm, total height approx. 91 mm. The valve base is screwed on, not pressed in — this makes it significantly more robust than a rubber valve.
V3-06-3 in detail: Also known as ETRTO V3.06.3. Triple-bend brass screw-on truck valve: the first bend is 90°, the other two 139° each — this guides the filling end past the rim flange and keeps it accessible even with twin tyres and deep rim wells. Leg dimensions approx. 20.5 / 46 / 20.5 / 47.5 mm (approx. 135 mm developed length), rim hole 9.7 mm. The valve is fastened to the tube with a sealing washer and nut instead of being vulcanised in. In our range on the 20-inch tubes 6.00/6.50-20, 7.00/7.50-20, 8.25-20 and 9.00-20.
TR218A in detail — the valve for water ballast: What makes this type special is the option for liquid ballasting: the hose is partially filled with water to increase the vehicle’s weight and thus improve traction — a common practice with tractors.
- Design: straight, robust metal valve, usually in two parts. Unscrewing the inner CH3 valve insert creates an extra-large opening — allowing for quick filling with air or liquid.
- Rim bore: 15.9 to 16 mm (0.625 inches).
- Length: typically around 38 to 48 mm total height above the rim.
- Mounting: a rubber base approximately 80 mm in diameter for vulcanising onto the inner tube, plus a lock nut for secure attachment to the rim.
Reducing sleeves: A TR15 valve does not fit into an 11.5 mm bore. Conversely, there are sleeves that allow a TR13 valve to fit into a 16 mm bore.
Whether straight or angled is not a question of fit, but of accessibility: with closed rims or small wheels, it is often impossible to reach the valve with a pump using a straight valve — in which case an angled one is used.
Not sure which valve is fitted? A photo of the old valve is all we need to identify it. Choose from: inner tubes, bead tapes and valves.
