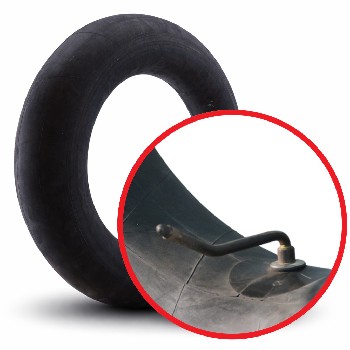

Tube 12.00-24 Valve V3-04-5
Product.Nr.: 990017055
Manufacturer: Novio
This tube in size 12.00-24 is designed for use in robust industrial and garden applications. It is ideal for tyres on work machines, trailers and equipment that must operate reliably under changing ground and weather conditions. Thanks to its design matched to the 24 inch rim size, the tube offers a precise fit and supports safe, airtight installation inside the tyre.
The installed valve type V3-04-5 is a proven heavy-duty valve designed for high pressures and demanding operating conditions. It allows convenient inflation and deflation and, thanks to its robust construction, ensures reliable sealing over the entire service life.
Technical data
- Tube size: 12.00-24
- Rim size: 24 inch
- Valve type: V3-04-5
- Valve design: Heavy-duty bent (angle) valve for commercial and industrial tyres
- Valve hole diameter: approx. 16 mm (standard bore for truck and industrial valves)
- Valve length: approx. 60–75 mm above rim flange (depending on rim contour)
- Valve bend: angled, for good accessibility of the valve head
- Valve core: replaceable, for easy servicing and pressure adjustment
- Seal: rubber base with metal reinforcement for secure, pressure-tight seating in the rim hole
Benefits and applications
This 12.00-24 tube with V3-04-5 valve is the right choice for machines and equipment operating under high loads and intensive use. The robust valve design ensures secure sealing even at higher operating pressures and reduces the risk of air loss.
Typical applications include:
- Industrial and construction machinery
- Agricultural trailers and equipment
- Municipal and yard maintenance machinery
- Heavy-duty garden and off-road equipment
The coordinated combination of tube size 12.00-24, rim size 24 inch and valve type V3-04-5 provides a reliable, durable solution for demanding applications. This contributes to stable handling, good load capacity and high operational safety.
Frequently asked questions about this product
The valve designation describes two things: the stem diameter — which must fit the hole in the rim — and the shape, i.e. straight or angled.
Only the bore matters for a proper fit: a valve fits perfectly only if its stem matches the bore in the rim. Whether it is straight or angled makes no difference — that is a question of accessibility.
An overview of the types:
| Type | Shape | Bore | typically used for |
|---|---|---|---|
| TR13 | straight, rubber | 11.5 mm | Car and trailer wheels |
| TR4 / TR6 | straight, short | 11.5 mm | Small wheels, garden tools |
| TR15 | straight, rubber | 16 mm | Agricultural machinery, tractor rims |
| TR87 | 90° angled | 11.5 mm | Small wheels, solid rims |
| JS8 (DIN 7777) | 90° angled, same as TR87 | 11.5 mm | small wheels, solid rims |
| JS2 | Approx. 70° angled | 11.5 mm | Industrial and small wheels |
| V3-02-7 (TR75) | 100° single-bend metal angle valve with screw-on base | 12.2 mm | Commercial vehicles, lorries, trailers, agricultural and industrial machinery such as forklift trucks |
| V3-06-3 | Triple-bend brass truck screw-on valve (90°/139°/139°) | 9.7 mm | 20-inch truck and trailer tubes (6.00-20 to 9.00-20), also 22.5-inch tube-type tyres |
| TR218A | Straight metal air-water valve, two-piece | 15.9–16 mm | High-volume tubular tyres for agricultural and industrial use, tractors |
V3-02-7 in detail: Also known as ETRTO V3.02.7 and US designation TR75. Dimensions: Horizontal leg length 22.5 mm, vertical leg length 71.5 mm, total height approx. 91 mm. The valve base is screwed on, not pressed in — this makes it significantly more robust than a rubber valve.
V3-06-3 in detail: Also known as ETRTO V3.06.3. Triple-bend brass screw-on truck valve: the first bend is 90°, the other two 139° each — this guides the filling end past the rim flange and keeps it accessible even with twin tyres and deep rim wells. Leg dimensions approx. 20.5 / 46 / 20.5 / 47.5 mm (approx. 135 mm developed length), rim hole 9.7 mm. The valve is fastened to the tube with a sealing washer and nut instead of being vulcanised in. In our range on the 20-inch tubes 6.00/6.50-20, 7.00/7.50-20, 8.25-20 and 9.00-20.
TR218A in detail — the valve for water ballast: What makes this type special is the option for liquid ballasting: the hose is partially filled with water to increase the vehicle’s weight and thus improve traction — a common practice with tractors.
- Design: straight, robust metal valve, usually in two parts. Unscrewing the inner CH3 valve insert creates an extra-large opening — allowing for quick filling with air or liquid.
- Rim bore: 15.9 to 16 mm (0.625 inches).
- Length: typically around 38 to 48 mm total height above the rim.
- Mounting: a rubber base approximately 80 mm in diameter for vulcanising onto the inner tube, plus a lock nut for secure attachment to the rim.
Reducing sleeves: A TR15 valve does not fit into an 11.5 mm bore. Conversely, there are sleeves that allow a TR13 valve to fit into a 16 mm bore.
Whether straight or angled is not a question of fit, but of accessibility: with closed rims or small wheels, it is often impossible to reach the valve with a pump using a straight valve — in which case an angled one is used.
Not sure which valve is fitted? A photo of the old valve is all we need to identify it. Choose from: inner tubes, bead tapes and valves.
