Tube 11.2/10-44 TR218A suitable for 270/95-44
53,90 €
Tube 11.2/10-44 TR218A suitable for 270/95-44
53,90 €
Shipping price from: 6,90 €
This item cannot be collected in person
Product Produkt lagernd
Tube 11.2/10-44 TR218A suitable for 270/95-44
Product.Nr.: 990017042
Manufacturer: Novio

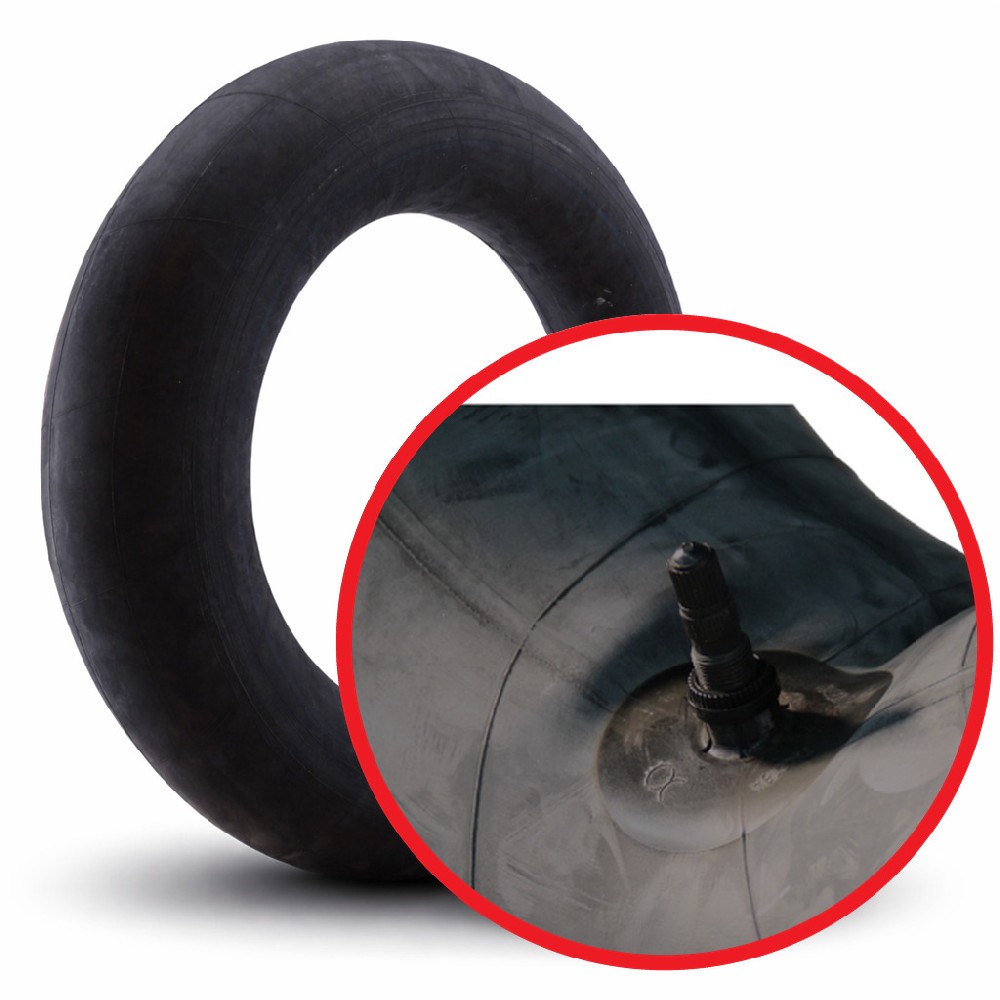

This robust tube in size 11.2/10-44 is designed for large-dimension wheels in industrial and agricultural applications. It is ideal for tractors, agricultural equipment and machinery with the corresponding tyre size and provides reliable air sealing even under high loads. Thanks to the TR218A valve, the tube is specifically designed for large-volume tyres with high inflation pressure and allows convenient inflation and deflation.
Technical data
- Tube size: 11.2/10-44
- Inch size: 44 inch
- Also suitable for: 270/95-44
- Valve type: TR218A
Valve type TR218A – characteristics
The TR218A is a straight, large-dimension tube valve that is frequently used in agricultural and industrial applications. Typical features of this valve type are:
- Suitable for large tube volumes and higher operating pressures
- Straight design for easy access during inflation and inspection
- Metal valve with high stability and good resistance to mechanical stress
- Designed for standardised valve hole bores in rims for agricultural and industrial tyres
- Valve length designed to allow secure connection of filling and testing equipment
Benefits and application range
This tube is the right solution for users looking for a reliable replacement tube for large-dimension tyres. Thanks to its compatibility with tyre size 270/95-44, it is particularly suitable for use on tractors, trailers, sprayers and other agricultural equipment, but can also be used in industrial applications with the corresponding dimensions.
The robust design and the TR218A valve ensure:
- Reliable air pressure even during long operating periods
- Easy inflation and deflation
- High load capacity in field and industrial use
This makes the tube a reliable component for machines where availability and operational safety are top priorities.
Frequently asked questions about this product
The valve designation describes two things: the stem diameter — which must fit the hole in the rim — and the shape, i.e. straight or angled.
Only the bore matters for a proper fit: a valve fits perfectly only if its stem matches the bore in the rim. Whether it is straight or angled makes no difference — that is a question of accessibility.
An overview of the types:
| Type | Shape | Bore | typically used for |
|---|---|---|---|
| TR13 | straight, rubber | 11.5 mm | Car and trailer wheels |
| TR4 / TR6 | straight, short | 11.5 mm | Small wheels, garden tools |
| TR15 | straight, rubber | 16 mm | Agricultural machinery, tractor rims |
| TR87 | 90° angled | 11.5 mm | Small wheels, solid rims |
| JS8 (DIN 7777) | 90° angled, same as TR87 | 11.5 mm | small wheels, solid rims |
| JS2 | Approx. 70° angled | 11.5 mm | Industrial and small wheels |
| V3-02-7 (TR75) | 100° single-bend metal angle valve with screw-on base | 12.2 mm | Commercial vehicles, lorries, trailers, agricultural and industrial machinery such as forklift trucks |
| V3-06-3 | Triple-bend brass truck screw-on valve (90°/139°/139°) | 9.7 mm | 20-inch truck and trailer tubes (6.00-20 to 9.00-20), also 22.5-inch tube-type tyres |
| TR218A | Straight metal air-water valve, two-piece | 15.9–16 mm | High-volume tubular tyres for agricultural and industrial use, tractors |
V3-02-7 in detail: Also known as ETRTO V3.02.7 and US designation TR75. Dimensions: Horizontal leg length 22.5 mm, vertical leg length 71.5 mm, total height approx. 91 mm. The valve base is screwed on, not pressed in — this makes it significantly more robust than a rubber valve.
V3-06-3 in detail: Also known as ETRTO V3.06.3. Triple-bend brass screw-on truck valve: the first bend is 90°, the other two 139° each — this guides the filling end past the rim flange and keeps it accessible even with twin tyres and deep rim wells. Leg dimensions approx. 20.5 / 46 / 20.5 / 47.5 mm (approx. 135 mm developed length), rim hole 9.7 mm. The valve is fastened to the tube with a sealing washer and nut instead of being vulcanised in. In our range on the 20-inch tubes 6.00/6.50-20, 7.00/7.50-20, 8.25-20 and 9.00-20.
TR218A in detail — the valve for water ballast: What makes this type special is the option for liquid ballasting: the hose is partially filled with water to increase the vehicle’s weight and thus improve traction — a common practice with tractors.
- Design: straight, robust metal valve, usually in two parts. Unscrewing the inner CH3 valve insert creates an extra-large opening — allowing for quick filling with air or liquid.
- Rim bore: 15.9 to 16 mm (0.625 inches).
- Length: typically around 38 to 48 mm total height above the rim.
- Mounting: a rubber base approximately 80 mm in diameter for vulcanising onto the inner tube, plus a lock nut for secure attachment to the rim.
Reducing sleeves: A TR15 valve does not fit into an 11.5 mm bore. Conversely, there are sleeves that allow a TR13 valve to fit into a 16 mm bore.
Whether straight or angled is not a question of fit, but of accessibility: with closed rims or small wheels, it is often impossible to reach the valve with a pump using a straight valve — in which case an angled one is used.
Not sure which valve is fitted? A photo of the old valve is all we need to identify it. Choose from: inner tubes, bead tapes and valves.
