Tube 10.5/80-20 Valve V3-06-8
32,90 €
Tube 10.5/80-20 Valve V3-06-8
32,90 €
Shipping price from: 6,90 €
This item cannot be collected in person
Product Produkt lagernd

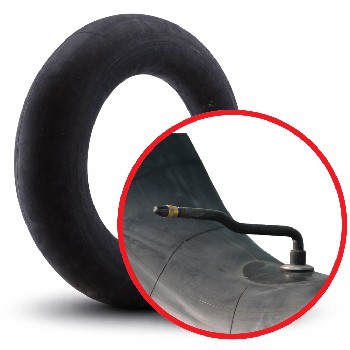

Tube 10.5/80-20 Valve V3-06-8
Product.Nr.: 990017028
Manufacturer: Novio
This high-quality inner tube in size 10.5/80-20 is designed for demanding use in industrial and garden applications. It is ideal for machines and trailers that must operate reliably under varying load and ground conditions. Thanks to its robust design and the proven V3-06-8 valve, the tube offers secure air sealing and a long service life.
Technical data
- Tube size: 10.5/80-20
- Inch size: 20 inch
- Also suitable for: 275/70-20
- Valve type: V3-06-8
Valve type V3-06-8 – properties
The V3-06-8 valve is a standard tractor and industrial air valve designed for higher operating pressures and heavy-duty use. It ensures reliable sealing and allows convenient inflation and deflation.
Typical technical characteristics of valve type V3-06-8:
- Valve hole diameter: approx. 15.7 mm (suitable for common rim holes on industrial and agricultural rims)
- Valve length above rim: approx. 38–45 mm (for good access to the valve, even with wider rims)
- Design: angled valve / bent version, facilitates attachment of the filling device
- Valve base: rubber base with metal valve insert, for reliable sealing in the rim hole
- Operating pressure: designed for medium to higher operating pressures in industrial and agricultural applications
Benefits and application range
The 10.5/80-20 tube with V3-06-8 valve is a reliable solution for tyres on work machines, trailers and equipment in industrial and garden environments. Thanks to its compatibility with tyre size 275/70-20, it can be used flexibly in various applications.
Typical fields of application are:
- Garden and municipal equipment (e.g. trailers, tool carriers)
- Light to medium industrial applications
- Agricultural and forestry auxiliary equipment with the corresponding tyre size
The robust design and proven valve system ensure a long service life, reduced downtime and reliable operation even under changing working conditions.
Frequently asked questions about this product
The valve designation describes two things: the stem diameter — which must fit the hole in the rim — and the shape, i.e. straight or angled.
Only the bore matters for a proper fit: a valve fits perfectly only if its stem matches the bore in the rim. Whether it is straight or angled makes no difference — that is a question of accessibility.
An overview of the types:
| Type | Shape | Bore | typically used for |
|---|---|---|---|
| TR13 | straight, rubber | 11.5 mm | Car and trailer wheels |
| TR4 / TR6 | straight, short | 11.5 mm | Small wheels, garden tools |
| TR15 | straight, rubber | 16 mm | Agricultural machinery, tractor rims |
| TR87 | 90° angled | 11.5 mm | Small wheels, solid rims |
| JS8 (DIN 7777) | 90° angled, same as TR87 | 11.5 mm | small wheels, solid rims |
| JS2 | Approx. 70° angled | 11.5 mm | Industrial and small wheels |
| V3-02-7 (TR75) | 100° single-bend metal angle valve with screw-on base | 12.2 mm | Commercial vehicles, lorries, trailers, agricultural and industrial machinery such as forklift trucks |
| V3-06-3 | Triple-bend brass truck screw-on valve (90°/139°/139°) | 9.7 mm | 20-inch truck and trailer tubes (6.00-20 to 9.00-20), also 22.5-inch tube-type tyres |
| TR218A | Straight metal air-water valve, two-piece | 15.9–16 mm | High-volume tubular tyres for agricultural and industrial use, tractors |
V3-02-7 in detail: Also known as ETRTO V3.02.7 and US designation TR75. Dimensions: Horizontal leg length 22.5 mm, vertical leg length 71.5 mm, total height approx. 91 mm. The valve base is screwed on, not pressed in — this makes it significantly more robust than a rubber valve.
V3-06-3 in detail: Also known as ETRTO V3.06.3. Triple-bend brass screw-on truck valve: the first bend is 90°, the other two 139° each — this guides the filling end past the rim flange and keeps it accessible even with twin tyres and deep rim wells. Leg dimensions approx. 20.5 / 46 / 20.5 / 47.5 mm (approx. 135 mm developed length), rim hole 9.7 mm. The valve is fastened to the tube with a sealing washer and nut instead of being vulcanised in. In our range on the 20-inch tubes 6.00/6.50-20, 7.00/7.50-20, 8.25-20 and 9.00-20.
TR218A in detail — the valve for water ballast: What makes this type special is the option for liquid ballasting: the hose is partially filled with water to increase the vehicle’s weight and thus improve traction — a common practice with tractors.
- Design: straight, robust metal valve, usually in two parts. Unscrewing the inner CH3 valve insert creates an extra-large opening — allowing for quick filling with air or liquid.
- Rim bore: 15.9 to 16 mm (0.625 inches).
- Length: typically around 38 to 48 mm total height above the rim.
- Mounting: a rubber base approximately 80 mm in diameter for vulcanising onto the inner tube, plus a lock nut for secure attachment to the rim.
Reducing sleeves: A TR15 valve does not fit into an 11.5 mm bore. Conversely, there are sleeves that allow a TR13 valve to fit into a 16 mm bore.
Whether straight or angled is not a question of fit, but of accessibility: with closed rims or small wheels, it is often impossible to reach the valve with a pump using a straight valve — in which case an angled one is used.
Not sure which valve is fitted? A photo of the old valve is all we need to identify it. Choose from: inner tubes, bead tapes and valves.
