Bead Strip / Rim Tape 6.00-9
10,90 €
Bead Strip / Rim Tape 6.00-9
10,90 €
Shipping price from: 6,90 €
This item cannot be collected in person
Product Produkt lagernd

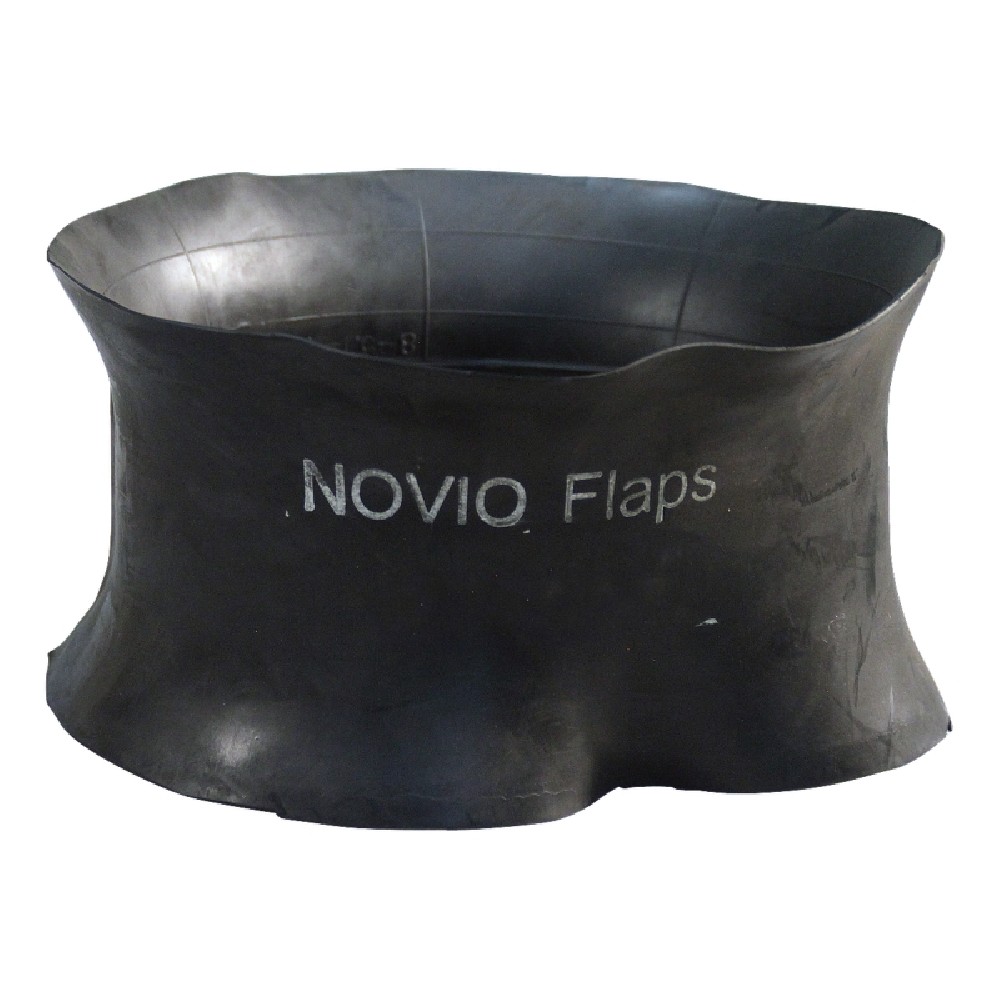

Bead Strip / Rim Tape 6.00-9
Product.Nr.: 990017436
Manufacturer: Novio
This bead strip / rim tape 6.00-9 serves as a reliable protection between tire and rim. It prevents damage to the tube caused by sharp edges, spoke holes or irregularities in the rim bed and thus makes a significant contribution to the operational safety and service life of the tire system. Especially in professional use, for example on industrial trucks, industrial vehicles or other applications with tire size 6.00-9, the tape ensures a stable and secure support of the tube.
Technical data
- Product type: Bead strip / rim tape
- Tire size: 6.00-9
- Inch size: 9 inch
Benefits and application
The bead strip / rim tape 6.00-9 is suitable for all rims and tires that correspond to the specified dimension. It is mounted between tube and rim and protects the tube against friction, heat build-up and point loads caused by drillings or edges in the rim. This significantly reduces the risk of tire failures and increases the service life of the tire system.
Typical fields of application are forklifts, small industrial vehicles, in-plant transport equipment as well as other machines that are equipped with tires in size 6.00-9. The bead strip is a useful addition for every tire or tube change and helps to reduce maintenance costs and sustainably improve operational safety.
Frequently asked questions about this product
The valve designation describes two things: the stem diameter — which must fit the hole in the rim — and the shape, i.e. straight or angled.
Only the bore matters for a proper fit: a valve fits perfectly only if its stem matches the bore in the rim. Whether it is straight or angled makes no difference — that is a question of accessibility.
An overview of the types:
| Type | Shape | Bore | typically used for |
|---|---|---|---|
| TR13 | straight, rubber | 11.5 mm | Car and trailer wheels |
| TR4 / TR6 | straight, short | 11.5 mm | Small wheels, garden tools |
| TR15 | straight, rubber | 16 mm | Agricultural machinery, tractor rims |
| TR87 | 90° angled | 11.5 mm | Small wheels, solid rims |
| JS8 (DIN 7777) | 90° angled, same as TR87 | 11.5 mm | small wheels, solid rims |
| JS2 | Approx. 70° angled | 11.5 mm | Industrial and small wheels |
| V3-02-7 (TR75) | 100° single-bend metal angle valve with screw-on base | 12.2 mm | Commercial vehicles, lorries, trailers, agricultural and industrial machinery such as forklift trucks |
| V3-06-3 | Triple-bend brass truck screw-on valve (90°/139°/139°) | 9.7 mm | 20-inch truck and trailer tubes (6.00-20 to 9.00-20), also 22.5-inch tube-type tyres |
| TR218A | Straight metal air-water valve, two-piece | 15.9–16 mm | High-volume tubular tyres for agricultural and industrial use, tractors |
V3-02-7 in detail: Also known as ETRTO V3.02.7 and US designation TR75. Dimensions: Horizontal leg length 22.5 mm, vertical leg length 71.5 mm, total height approx. 91 mm. The valve base is screwed on, not pressed in — this makes it significantly more robust than a rubber valve.
V3-06-3 in detail: Also known as ETRTO V3.06.3. Triple-bend brass screw-on truck valve: the first bend is 90°, the other two 139° each — this guides the filling end past the rim flange and keeps it accessible even with twin tyres and deep rim wells. Leg dimensions approx. 20.5 / 46 / 20.5 / 47.5 mm (approx. 135 mm developed length), rim hole 9.7 mm. The valve is fastened to the tube with a sealing washer and nut instead of being vulcanised in. In our range on the 20-inch tubes 6.00/6.50-20, 7.00/7.50-20, 8.25-20 and 9.00-20.
TR218A in detail — the valve for water ballast: What makes this type special is the option for liquid ballasting: the hose is partially filled with water to increase the vehicle’s weight and thus improve traction — a common practice with tractors.
- Design: straight, robust metal valve, usually in two parts. Unscrewing the inner CH3 valve insert creates an extra-large opening — allowing for quick filling with air or liquid.
- Rim bore: 15.9 to 16 mm (0.625 inches).
- Length: typically around 38 to 48 mm total height above the rim.
- Mounting: a rubber base approximately 80 mm in diameter for vulcanising onto the inner tube, plus a lock nut for secure attachment to the rim.
Reducing sleeves: A TR15 valve does not fit into an 11.5 mm bore. Conversely, there are sleeves that allow a TR13 valve to fit into a 16 mm bore.
Whether straight or angled is not a question of fit, but of accessibility: with closed rims or small wheels, it is often impossible to reach the valve with a pump using a straight valve — in which case an angled one is used.
Not sure which valve is fitted? A photo of the old valve is all we need to identify it. Choose from: inner tubes, bead tapes and valves.
