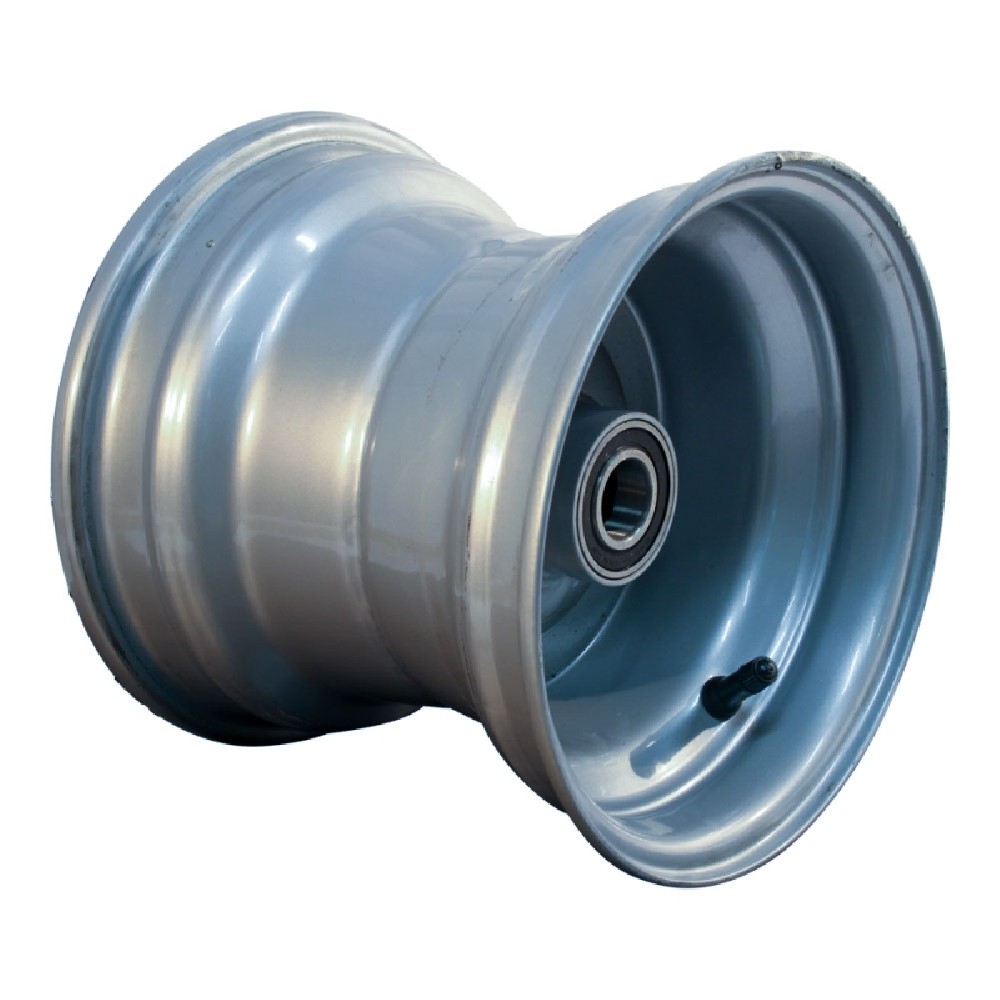

This robust 8-inch steel rim is designed for demanding industrial and garden applications. Thanks to the ball bearing bore Ø20 mm and hub length 90 mm, it can be easily integrated into existing wheel and chassis solutions. The one-piece design ensures high stability, while the maximum load capacity of 535 kg and the permissible speed of up to 10 km/h make it ideal for slow-moving work equipment, trolleys and trailers.

Technical data

• Product type: Wheel / Rim
• Inch size: 8 inch
• Rim: 7.00Ax8H2
• Offset: ET0
• Design: 1-piece
• Axle bore Ø mm: Ball bearing Ø20
• Hub length mm: NL90 mm
• Bearing type: 6304 2RS C3
• Tube diameter: 52 mm
• Hole diameter: 20 mm
• Bearing width: 15 mm
• Rim material: Steel
• Rim colour: Grey
• Max. load capacity: 535 kg
• Max. speed: 10 km/h

Advantages and application area

This steel rim offers high load capacity and durability due to its one-piece construction, even under harsh operating conditions. The ball bearing type 6304 2RS C3 with double-sided seals is low-maintenance and reliably protects against dust and moisture. The tube diameter of 52 mm and the axle bore with ball bearing Ø20 mm allow easy installation on common axle systems.

Typical applications are:

• Industrial trailers and trolleys
• Yard, garden and municipal equipment
• Slow-moving work machines up to 10 km/h
• Custom special constructions with high load requirements

Explanation of technical terms

• Inch size: Indicates the rim diameter in inches (1 inch ˜ 25.4 mm). Here 8 inch.
• Offset (ET): Distance between the centre of the rim and the mounting face at the hub. ET0 means that the mounting face is located in the centre of the rim.
• Ball bearing Ø20: The rim is designed for a ball bearing with 20 mm inner diameter, suitable for a 20 mm axle.
• 6304 2RS C3: Designation of the ball bearing. 2RS stands for double-sided rubber seals, C3 for increased internal clearance, suitable for higher loads and temperatures.
• Hub length (NL): Total length of the hub including the bearing seat. Here 90 mm.
• Max. load capacity: Maximum static or dynamic load that the rim can safely carry in combination with a suitable tyre.
• Max. speed: Maximum permissible operating speed. Exceeding this limit can lead to premature wear or damage.
