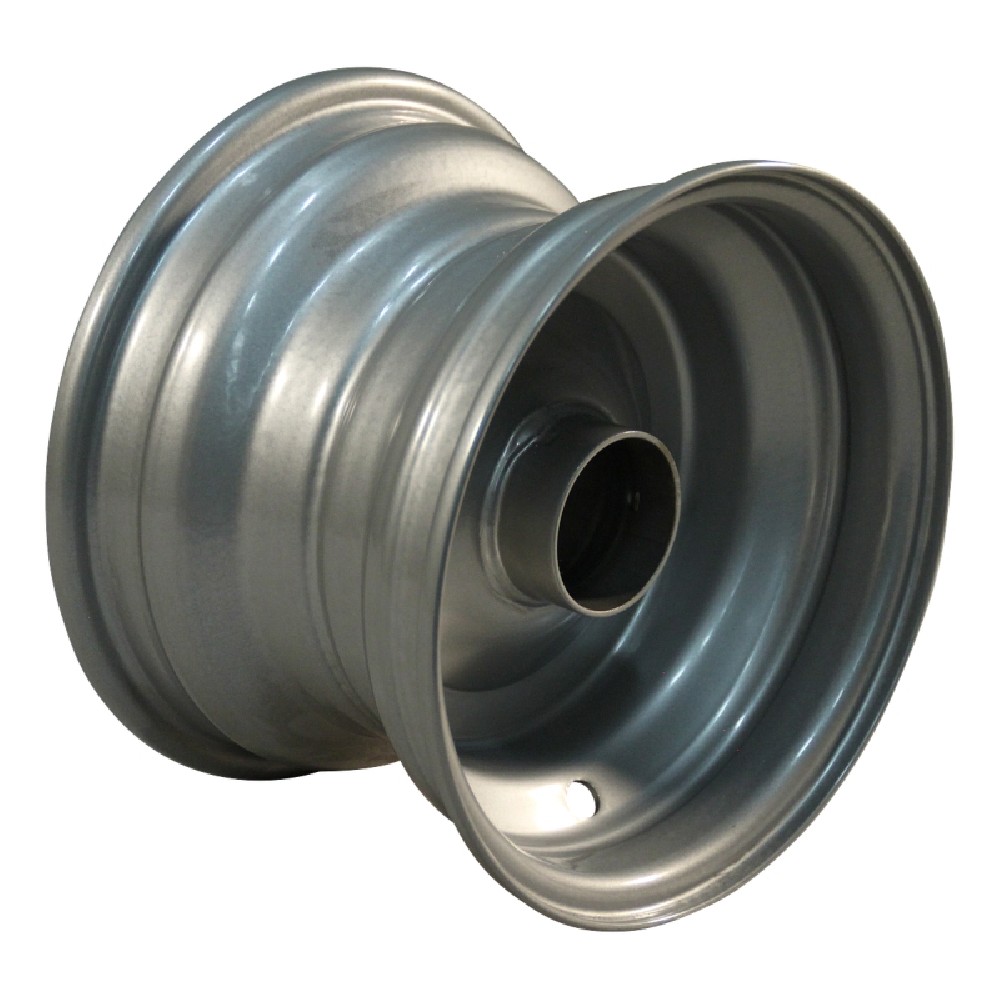

This robust 8 inch steel rim is specially designed for industrial, transport and garden applications. Thanks to its solid construction with ball bearing, it is ideal for trailers, trolleys, machines, garden and municipal equipment where high load capacity and reliable running performance are required. The one-piece rim with precisely fitted deep-groove ball bearing (type 6205 2RS C3) ensures smooth running and long service life, even in demanding continuous operation up to 10 km/h.

Technical data

• Product type: Wheel / rim with ball bearing
• Series: Series 51
• Inch size: 8 inch
• Rim: 5.50Ax8H2
• Offset: ET0
• Design: 1-piece
• Bearing type: 6205 2RS C3
• Bearing designation: Ball bearing
• Axle bore Ø mm: Ø25
• Bore diameter: 25 mm
• Hub length mm: NL90 mm
• Bearing width: 15 mm
• Tube diameter: 52 mm
• Material thickness: 2.5 mm
• Rim material: Steel
• Rim colour: Grey
• Max. load capacity: 700 kg
• Max. speed: 10 km/h

Benefits and application

• High load capacity up to 700 kg: Ideal for heavily loaded transport trolleys, trailers, machines and industrial conveying equipment.
• Precision ball bearing 6205 2RS C3: Low rolling resistance, smooth running and long service life, even with frequent start-stop operation.
• One-piece steel rim: 2.5 mm material thickness and 52 mm tube diameter provide high stability and dimensional accuracy.
• Universal axle bore Ø25 mm: Suitable for many common axle systems in industry and garden/municipal equipment.
• Low speed, high safety: Optimised for applications up to 10 km/h, e.g. hand carts, yard and workshop trolleys, agricultural equipment or garden machinery.

This rim is particularly suitable for users who need a durable, robust and low-maintenance solution for their transport and work equipment, such as in workshops, warehouses, municipal operations and professional gardening and landscaping.

Explanation of technical terms

• Ball bearing: Rolling bearing in which balls between inner and outer ring enable smooth rotary motion. Reduces friction and wear.
• 6205 2RS C3: Standard designation of the ball bearing. "6205" describes size and design, "2RS" stands for double-sided seals (protection against dirt and moisture), "C3" for increased internal clearance, suitable for higher loads and temperatures.
• ET0 (offset 0): The offset indicates how far the centre of the rim is displaced in relation to the wheel mounting. ET0 means that the centre plane of the rim is flush with the mounting surface.
• Inch size: Common size specification for wheels and rims; 1 inch corresponds to 25.4 mm.
• Hub length (NL): Total length of the hub, here 90 mm, important for the fit on the axle and between fork or frame.
• Max. load capacity: Maximum static or permissible load that the wheel may carry, here 700 kg.
• Max. speed: Highest permissible operating speed at which wheel and bearing can be used safely on a continuous basis, here 10 km/h.
