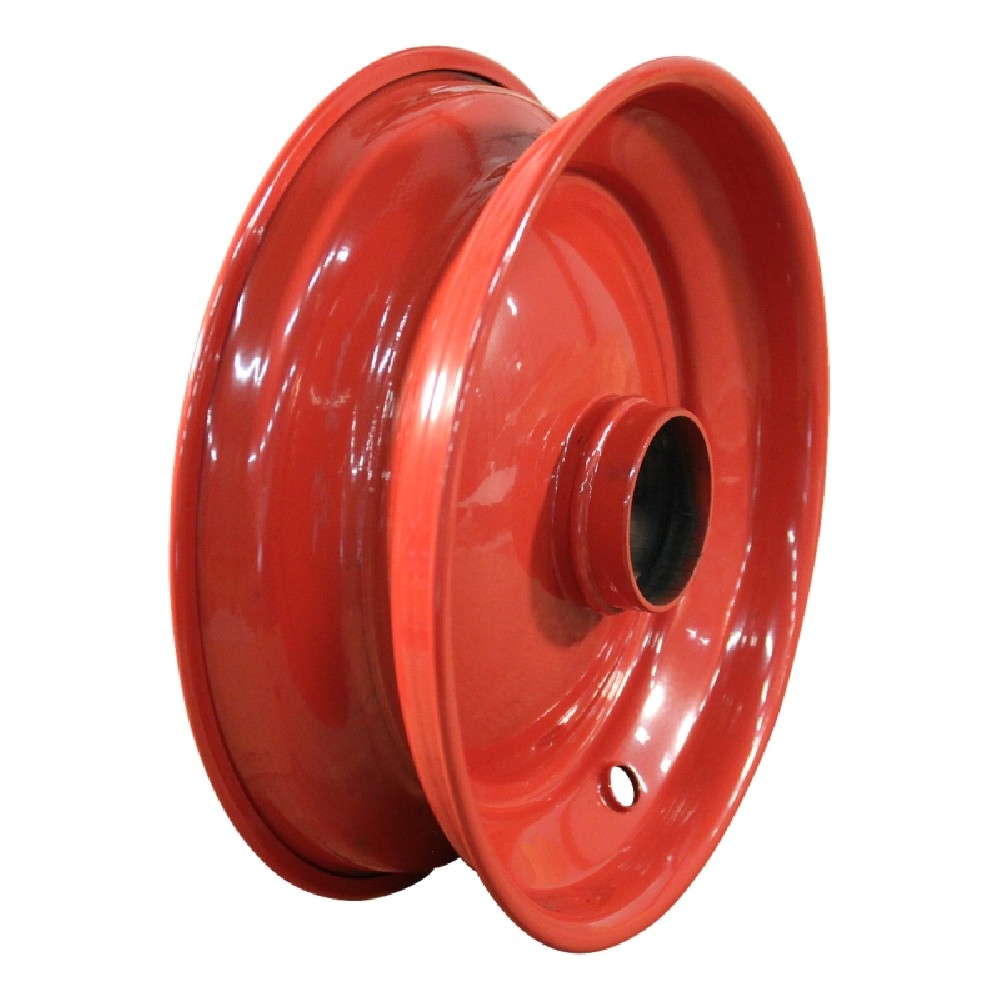

This robust steel rim in size 2.50x8H2 is specially designed for demanding industrial and garden applications. Thanks to the ball bearing seat and high load capacity, it is ideal for transport equipment, trailers, machines and devices that must operate reliably and withstand daily use. The red painted finish protects against corrosion and ensures good visibility in the working environment.

Technical data

• Product name: Wheel 2.50x8H2 ET-8 Ball Bearing Seat NL88mm Steel Red
• Series: Series 51
• Inch size: 8 inch
• Rim: 2.50x8H2
• Offset: ET-8
• Design: 1-piece
• Seat (wheel): Ball bearing seat
• Ball bearing seat: Valve side 47x20, other side 47x12
• Hub length mm: NL88 mm
• Hub dimension: 51x47
• Valve hole: 11.5 +/-0.2 mm
• Rim material: Steel
• Rim colour: Red
• Load capacity kg at 10 km/h: 655 kg
• Load capacity at 20 km/h: 575 kg

Benefits and application

This steel rim offers a high load capacity at low speeds and is therefore ideal for industrial trucks, trailers, agricultural equipment, garden machinery and various industrial applications. The ball bearing seat with matched dimensions (47x20 and 47x12) allows the use of common ball bearing sizes and ensures smooth running. The hub length of 88 mm and the hub dimension 51x47 facilitate integration into existing machine and chassis designs.

The 1-piece steel construction ensures stability and durability, while the red paint provides additional corrosion protection and good visibility in the working environment. Thanks to the valve hole with a diameter of 11.5 mm, the rim is suitable for common valve types used in industrial and garden applications.

Explanation of technical terms

• Inch size: Indicates the rim diameter in inches (inch). 8 inch correspond to approx. 203 mm.
• Offset (ET): Distance between the rim centre and the hub mounting face. ET-8 means that the mounting face is offset 8 mm further towards the outside of the vehicle, which affects the track width.
• Ball bearing seat: Area in the hub where the ball bearings are housed. The dimensions (e.g. 47x20) describe the diameter and width of the bearing seat.
• Hub length (NL): Total length of the hub in millimetres, important for correct mounting on axles and bolts.
• Load capacity: Maximum load that the rim can safely carry at a given speed (here specified separately for 10 km/h and 20 km/h).
