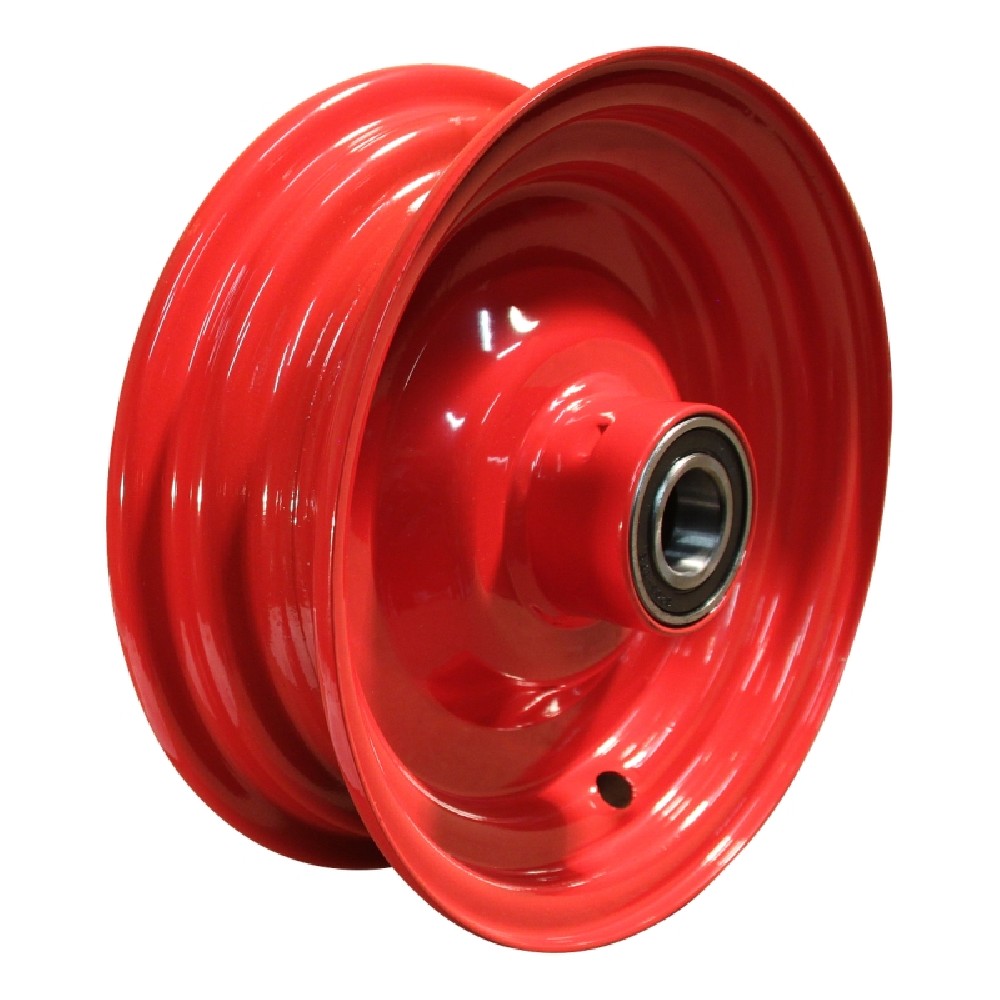

This robust red steel rim is designed for demanding industrial and garden applications. With a size of 8 inch, a hub length of 100 mm and a high-quality ball bearing, it is ideal for equipment and trailers where high load capacity and reliable running characteristics are required. The one-piece design and the precisely fitted 6205 2RS C3 bearing ensure durable, smooth running at low speeds.

Technical data

• Item: Wheel
• Series: Series 51
• Size: 8 inch
• Rim: 2.50Ax8H2
• Offset: ET0
• 1/2/3-piece: 1-piece
• Designation: Ball bearing
• Hub length mm: NL100 mm
• Bearing type: 6205 2RS C3
• Tube diameter: 52 mm
• Bore diameter: 25 mm
• Bearing width: 15 mm
• Rim material: Steel
• Rim colour: Red
• Max. load capacity: 655 kg
• Max. speed: 10 km/h

Benefits and applications

This rim is specifically designed for high-load, low-speed applications, such as:

• Industrial and transport trolleys
• Trailers used in factory yards and on company premises
• Garden and municipal equipment (e.g. machinery, equipment trolleys)

The maximum load capacity of 655 kg allows use under high loads, while the permissible maximum speed of 10 km/h makes it ideal for in-plant transport. The robust steel material combined with the protected 6205 2RS C3 ball bearing ensures a long service life and smooth running. The one-piece rim construction and the standardised dimensions (tube and bore diameter) facilitate installation and replacement.

Explanation of technical terms

• Ball bearing: Bearing with balls as rolling elements, provides low rolling resistance and smooth running.
• Bearing type 6205 2RS C3: Standard deep groove ball bearing size 6205 with double sealing (2RS) and increased internal clearance (C3) for long-lasting operation under load.
• Offset (ET0): Distance between the centre of the rim and the hub mounting face. ET0 means that the mounting face is centred in relation to the rim width.
• Hub length (NL100 mm): Total length of the hub, important for correct fit in the vehicle or equipment.
• Max. load capacity (655 kg): Maximum static load the rim can safely support.
• Max. speed (10 km/h): Maximum permissible operating speed; exceeding this may reduce service life or cause damage.
