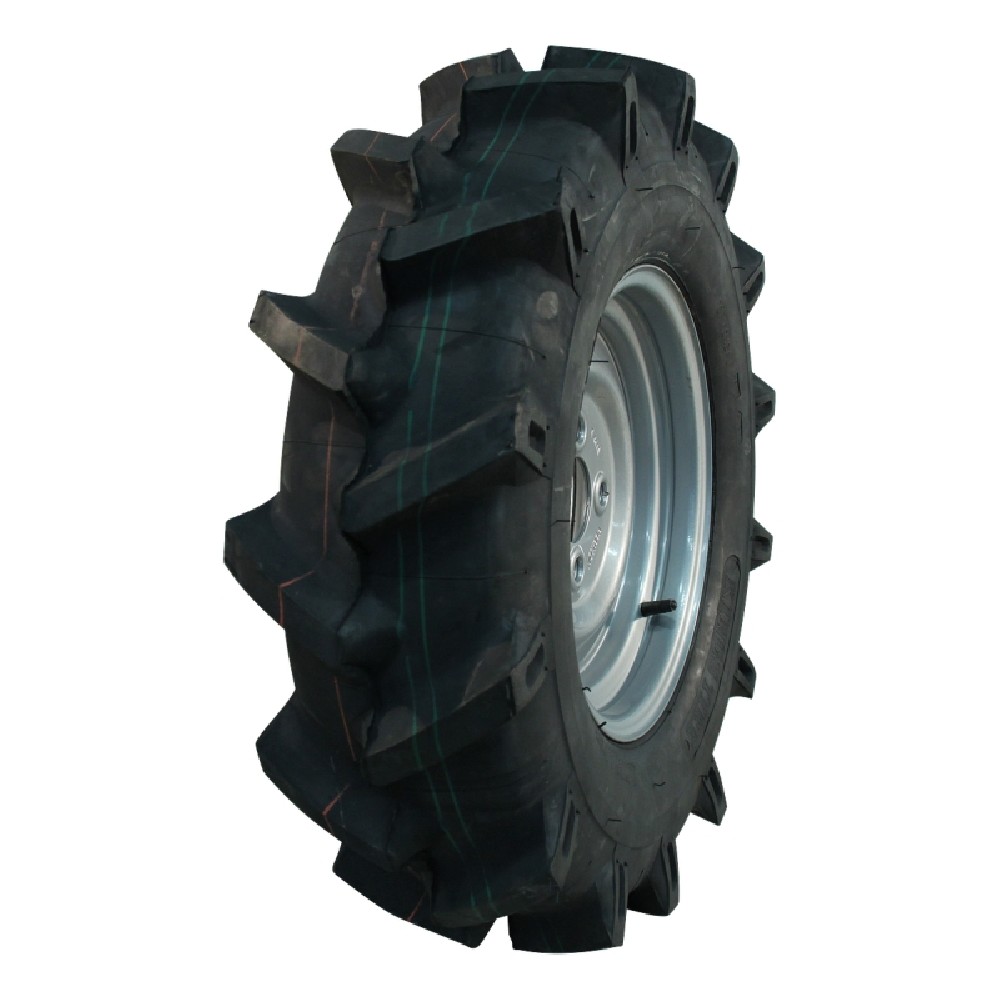

This complete wheel from KINGS TIRE is specially designed for tractors used in agriculture and horticulture. The robust tyre in size 6.00-12 with V-8803 tread is pre-mounted on a one-piece steel rim and provides reliable traction at low speeds. Thanks to the 6PR carcass and high load capacity, it is ideal for daily use on farms, in fields and for municipal applications.

Technical data

• Product name: Complete wheel 6.00-12 V-8803 4.00Bx12H2 ET0 60/100/4 steel grey
• Brand: KINGS TIRE
• Item: Complete wheel
• Series: Series 58
• Application: Tractor
• Industry: Agriculture and horticulture
• Tyre size: 6.00-12
• Diameter: 618 mm
• Width: 154 mm
• Tread: V-8803
• PR (Ply Rating): 6PR
• Inch size: 12 inch
• Tyre type: TT (Tube Type)
• Rim: 4.00Bx12H2
• Offset: ET0
• 1/2/3-piece: 1-piece
• Bolt pattern: 60/100/4
• Material thickness: 2.5 mm
• Load index (LI): 76
• Speed index (SI): A3
• Wheel material: Steel
• Rim colour: grey
• Max. load capacity: 405 kg
• Tyre pressure: 2.5 bar
• Max. speed: 15 km/h
• Mounting: right

Benefits and application area

This complete wheel is designed for low working speeds up to 15 km/h and is particularly suitable for light to medium tractors, single-axle tractors and compact tractors for agricultural and horticultural use. The V-8803 tread ensures good grip on soft ground, grassland and arable land, while the 6PR construction provides high stability and puncture resistance.

The one-piece steel rim with 2.5 mm material thickness and ET0 offset ensures a robust connection to the machine. The bolt pattern 60/100/4 enables an accurate fit on suitable hubs. Thanks to the TT (tube type) design, the wheel is especially service-friendly and can be repaired easily if required.

Explanation of technical terms

• TT (Tube Type): Tyre design that uses a separate inner tube inside the tyre.
• PR (Ply Rating): Ply Rating indicates the carcass load class; 6PR stands for a reinforced version.
• LI (Load Index): Code for the maximum permissible load capacity of the tyre; LI 76 corresponds to 405 kg here.
• SI (Speed Index): Marking of the maximum permissible speed; A3 stands for up to 15 km/h.
• Offset (ET): Distance between the rim centreline and the mounting face on the hub; ET0 means the mounting face is at the rim centreline.
• Bolt pattern 60/100/4: Describes the pitch circle and centre bore of the rim (e.g. 4 holes, 100 mm PCD, 60 mm centre bore).
