Complete wheel 4.80/4.00-8 KINGS TIRE V-8502 4PR plastic red NL 88mm
69,90 €
Complete wheel 4.80/4.00-8 KINGS TIRE V-8502 4PR plastic red NL 88mm
69,90 €
Shipping price from: 6,90 €
This item cannot be collected in person
Product Produkt lagernd

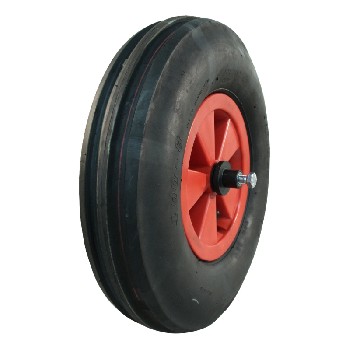

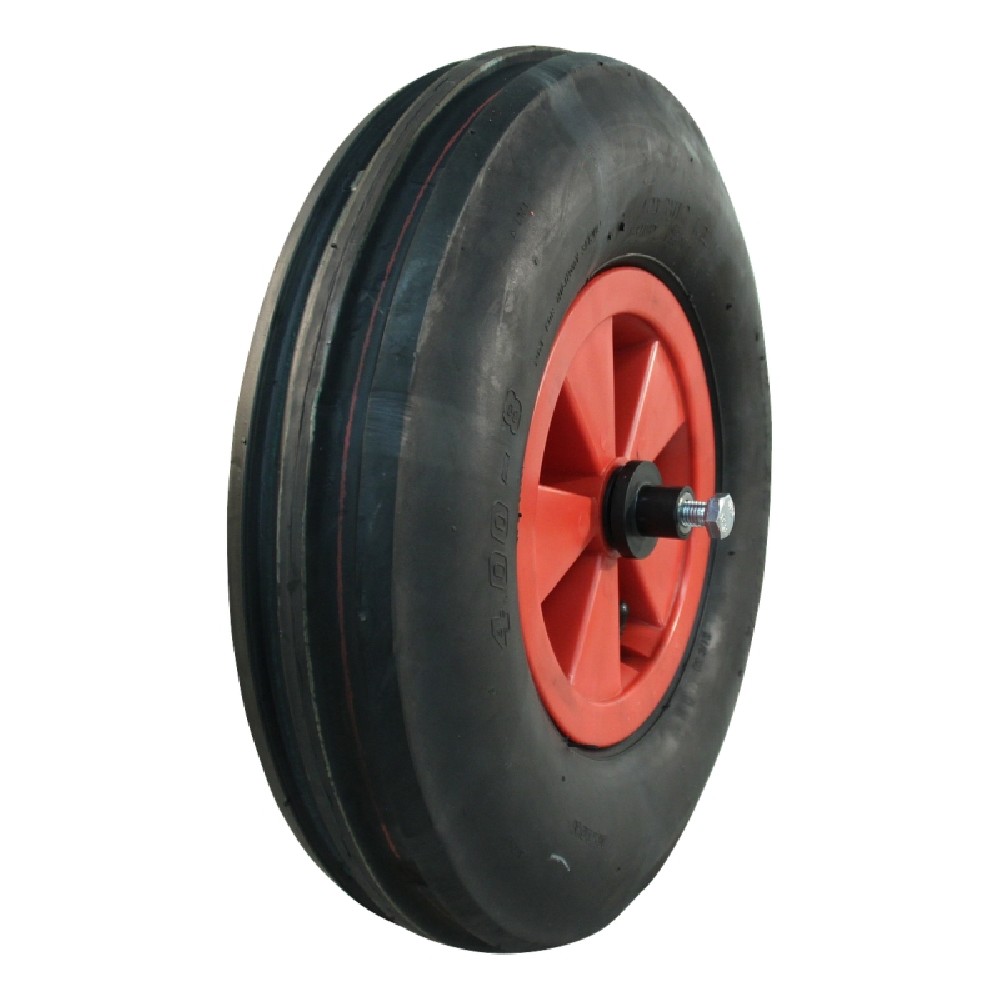

Complete wheel 4.80/4.00-8 KINGS TIRE V-8502 4PR plastic red NL 88mm
Product.Nr.: 990016704
Manufacturer: KINGS TIRE
This complete wheel from KINGS TIRE in the Series 52 is specially designed for agricultural and horticultural applications. It combines a robust tyre with a matching plastic rim and roller bearing and is ideal for wheelbarrows, equipment carts, trailers and similar transport devices. The V-8502 tread provides good grip on grass, yard and field surfaces, while the 4PR carcass offers solid load capacity at moderate speeds.
Technical data
- Brand: KINGS TIRE
- Industry: Agriculture and horticulture
- Item: Complete wheel
- Series: Series 52
- Tyre size: 4.80/4.00-8
- Diameter: 426 mm
- Width: 106 mm
- Tread: V-8502
- PR (Ply Rating): 4PR
- Inch size: 8 inch
- Tyre type: TT (Tube Type)
- Rim: 2.50Ax8
- 1/2/3-piece: 1-piece
- Hub length mm: NL88 mm
- Overall height: 213 mm
- Product: Roller bearing
- Wheel material: Plastic
- Rim colour: Red
- Max. load capacity: 225 kg
- Tyre pressure: 2.5 bar
- Max. speed: 20 km/h
Advantages and applications
This complete wheel is delivered ready for installation and, thanks to the 1-piece plastic rim, is particularly low-maintenance and corrosion-resistant. The roller bearing ensures smooth running even under higher loads up to 225 kg, making it suitable for daily use on farms, in landscaping and horticulture, or on yard and industrial premises.
The TT tyre (Tube Type) is designed for use with an inner tube and provides reliable cushioning on uneven surfaces. With a maximum speed of 20 km/h, this wheel is ideal for slow-moving equipment and trailers that are frequently used over short distances and on mixed surfaces.
Explanation of technical terms
- TT (Tube Type): Tyre construction that must always be used with a separate inner tube.
- PR (Ply Rating): Indicates the load capacity class of the tyre. 4PR stands for a reinforced carcass that offers higher load capacity than light standard tyres.
- Inch size: Indicates the rim diameter in inches (1 inch ˜ 25.4 mm).
- Roller bearing: Type of bearing with rolling elements (e.g. rollers) that ensures smooth running of the wheel while providing good load capacity.
Frequently asked questions about this product
To find a suitable complete wheel, we need five pieces of information:
- Tyre size — shown on the sidewall of the old tyre, for example 195/50 R13.
- Number of holes and bolt circle diameter — how many wheel bolts and what is the bolt circle diameter. For a four-hole pattern, measure from the centre of one hole to the centre of the hole directly opposite. With a five-hole pattern, this isn’t possible directly because no hole is directly opposite — in this case, it helps to check the vehicle documents or a photo of the back of the rim.
- Offset (ET) — see below.
- Hub bore (centre hole) — the diameter of the opening in the centre of the rim.
- Load capacity — the load index must match the axle load, and must be at least the value stated in the vehicle documents.
What the offset (ET) does: It indicates how far the contact surface of the rim is from the centre of the rim, and thus determines how far the wheel protrudes outwards or inwards. An ET that is too small will cause the wheel to rub against the outer edge of the mudguard; one that is too large will cause it to rub against the brake or the frame on the inside.
Reading the offset: It is usually stamped on the inside of the rim, for example ‘ET30’. If there is no stamp, measure it yourself.
Measuring the ET yourself — here’s how:
- Remove the wheel and lay it flat, ideally with the outer side facing downwards.
- Measure the total width G of the rim: from the outer edge of one rim flange to the outer edge of the other. Half of this distance is the centre of the rim.
- Measure dimension A: place a straight ruler across the top rim flange and determine the distance from this edge to the hub contact surface — that is, to the surface that rests against the vehicle.
- Calculation: ET = A − G/2
Example: Total width 230 mm, measurement A 145 mm. Centre of the rim = 115 mm. ET = 145 − 115 = 30. A positive result means that the contact surface lies outside the centre of the rim — this is the normal case. A value of zero means it is exactly centred, whilst negative values indicate it lies further inwards.
The quickest way is still to take a photo of the back of the old rim — this shows the bolt pattern and usually the embossed dimensions as well.
To choose from: complete wheels.
Note: Our complete trailer wheels are not balanced — this is not usually necessary for car trailers.
